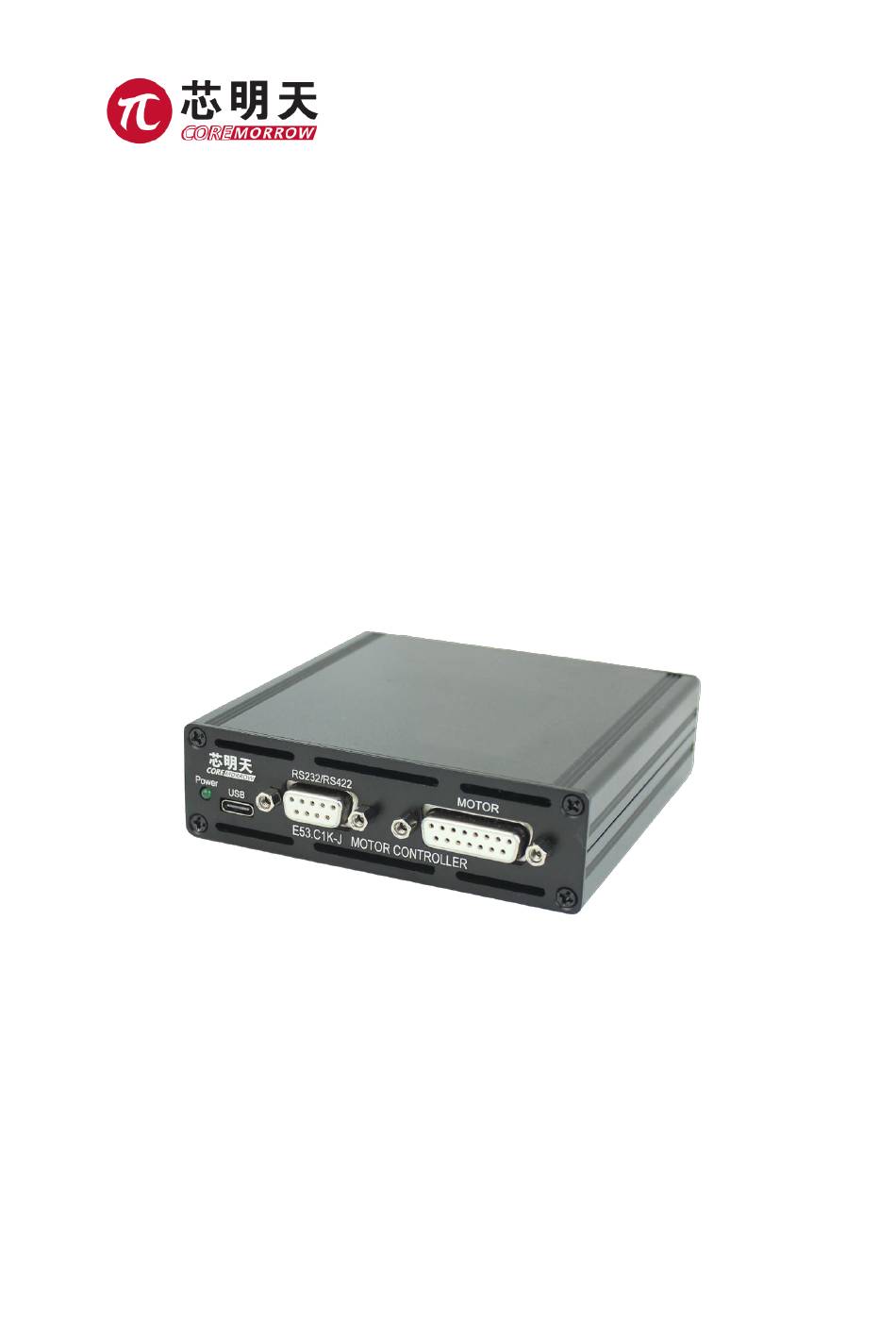

- Page 1 E53.C1K-J Compact Piezo Motor Controller User Manual and Software Manual Version: V2.0 Date: 2025.04 This document contains the following content: Basic information of E53.C1K-J compact piezo motor controller Introduction of the upper computer software of E53.C1K-J ...
-
Page 2: Declaration
E53.C1K-J User manual and Software Manual – Declaration Declaration Declaration This manual is only applicable to the E53.C1K-J compact piezo motor controller produced and sold by CoreMorrow. To avoid potential dangers that may threaten the safety of users' lives and property, please read this manual carefully before use. - Page 3 E53.C1K-J User manual and Software Manual – Declaration Danger！ The piezo motor controller described in this manual is a high-voltage device capable of outputting high currents, which can cause serious or even fatal damage if not used properly. It is strongly recommended that you do not touch any parts that connect to ...
-
Page 4: Table Of Contents
E53.C1K-J User manual and Software Manual – Contents Contents Declaration ........................0 1. Introduction ......................1 1.1 Typical characteristics ......................1 1.2 Typical applications ......................1 1.3 Order information ......................1 1.4 User Manual Notes ......................2 1.5 User Manual Download ....................2 2. - Page 5 E53.C1K-J User manual and Software Manual – Contents 5.3 Introduction to the operating interface ..............13 5.4 Explanation of the direction of the piezo motor ...........15 6. Cleaning, Transportation and Storage .............. 17 6.1 Cleaning measures ......................17 6.2 Transportation and storage ..................17 7.
-
Page 6: Introduction
E53.C1K-J User manual and Software Manual – Introduction 1. Introduction 1.1 Typical characteristics 1 output channel 24V（20~30V）power supply Rated output: 9W Static dissipation: ＜5W Output short-circuited current: 60mA Software control Small volume integrated design ... -
Page 7: User Manual Notes
1.5 User Manual Download User manual download process instructions: Open the website www.coremorrow.com; Search for product model (e.g. E53.C1K-J) or series (e.g. piezo motor controller) on the website; Click on the corresponding product to open the product details page; On the product details page, scroll down to "Downloads";... - Page 8 E53.C1K-J User manual and Software Manual – Introduction Click on the desired file to download. Be careful! If the manual is lost or there are problems downloading, please contact our customer service department.
-
Page 9: Series&Appearance
E53.C1K-J User manual and Software Manual – Series&Appearance 2. Series&Appearance The E53.C1K-J compact piezo motor controller is designed for driving piezo motor displacement stage of CoreMorrow, and it can achieve real-time communication with the upper computer through USB interface or RS-232/422 interface, and supports secondary development of upper computer software. - Page 10 E53.C1K-J User manual and Software Manual – Series&Appearance 2.2.2 panel introduction Front Panel Rear Panel Function Model Description If it lights up, the controller is in a powered on Power indicator LED green operational state; otherwise, it is in a non operational...
-
Page 11: Power Calculation
E53.C1K-J User manual and Software Manual – Power Calculation 3. Power Calculation Average output(Sine wave operation mode): ≈ U • U • f • C piezo In the above formula: : Average output [W] : Peak and peak drive voltage [V] ... -
Page 12: Parameter
Communication connector DB9, Type-C Size 105×103×30.1 Mass g±5% 4.2 Environmental conditions The operating environment of E53.C1K-J compact piezo motor controller: Environmental conditions Condition description Application For room use only Highest relative humidity 80%, temperature can reach 30℃ Environment humidity Highest relative humidity 50%, temperature can reach 40℃... -
Page 13: Drawing
E53.C1K-J User manual and Software Manual – Parameter 4.3 Drawing 4.4 Driving Principle Communication Communication control Interface Control unit Power piezo motor amplifier displacement stage 4.5 Interface introduction ② ①... - Page 14 E53.C1K-J User manual and Software Manual – Parameter ① RS-232/422(D-Sub9) Pin Definition Null RS-232 TxD RS-232 RxD Null RS-422 RxD+ RS-422 RxD- RS-422 TxD- RS-422 TxD+ ② Piezo motor connector(D-Sub15) Pin Definition DriveOut Drive_GND 2~9，11~15 Null...
-
Page 15: Software Introduction
E53.C1K-J User manual and Software Manual– Software Introduction 5. Software Introduction 5.1 Installation Introduction Firstly, open the USB drive that comes with the product shipment, click to enter the corresponding software compression package, and enter the decompressed folder. Step 1, click on the"1.Software operating environment "folder. -
Page 16: Introduction To Establishing Communication Connections
E53.C1K-J User manual and Software Manual– Software Introduction and click to install " YDCombMD-Piezo Rotary Linear Motor Controller-2306.msi", double-click to install the upper computer operation software, select the next step during the installation process, and finally click “Finish”to complete the installation of the controller driver software. - Page 17 E53.C1K-J User manual and Software Manual– Software Introduction Select control: Default serial port control, no need to select; (Note: Using a USB cable or RS-232/422 serial port cable has no effect on control selection) COM: Select the corresponding COM port according to the actual situation. The confirmation method for the Win10 serial port is as follows: Win10→This...
-
Page 18: Introduction To The Operating Interface
E53.C1K-J User manual and Software Manual– Software Introduction 5.3 Introduction to the operating interface The introduction of each control area is as follows: 1) Absulute Position: This function is to command a relative motion with reference to the current position. It can be specified by the cycle parameter. Enter... - Page 19 E53.C1K-J User manual and Software Manual– Software Introduction the three input boxes is the same. ) 2) Stop: Aborts the motion of piezo motor. 3) Read position: Reads the current motion cycles of the piezo motor. "+" indicates forward motion and "-" indicates reverse motion(Note: The number is based on the actual reading).
-
Page 20: Explanation Of The Direction Of The Piezo Motor
E53.C1K-J User manual and Software Manual– Software Introduction clearing command to the lower computer. Since the counting methods of high and low resolution are different, when users do secondary development, they need to clear the cycle themselves.) 7) Set: Click Set to adjust the control speed, check the version information of the controller driver software, and so on. - Page 21 E53.C1K-J User manual and Software Manual– Software Introduction Movement towards the direction of the outlet is positive and the stroke is positive; Movement against the direction of the outlet is negative, and the stroke is negative； (Note: The motion direction of of N56.50E is opposite to that shown in the figure.) 5.4.2 N61 piezo motor rotation stage...
-
Page 22: Cleaning, Transportation And Storage
6. Cleaning, Transportation and Storage 6.1 Cleaning measures Note! The PCB board of the function module in the E53.C1K-J system is an ESD (electrostatic discharge) sensitive device. Take precautions against any static build-up of these devices before use to avoid contact with circuit component leads and PCB wiring. - Page 23 E53.C1K-J User Manual– Cleaning, Transportation and Storage placement and other adverse conditions during transportation. If the instrument is not used for a long time, the instrument should be packaged and stored. The instrument should be stored in a non-corrosive atmosphere and in a well ...
-
Page 24: Service&Maintenance
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. ... -
Page 25: Contact Us
E53.C1K-J User manual and Software Manual – Contact us 8. Contact us CoreMorrow Ltd. Tel: +86-0451-86268790 Fax: 0451-86267847 Website: www.coremorrow.com Email: info@coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China After-sale service: Emai: info@coremorrow.com CoreMorrow Official and CTO WeChat are below:...
