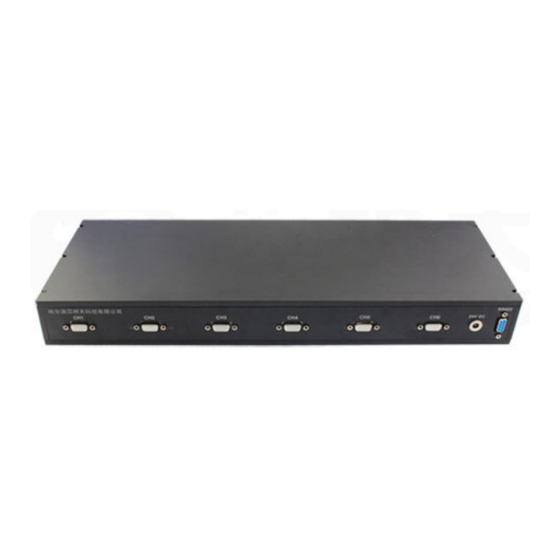

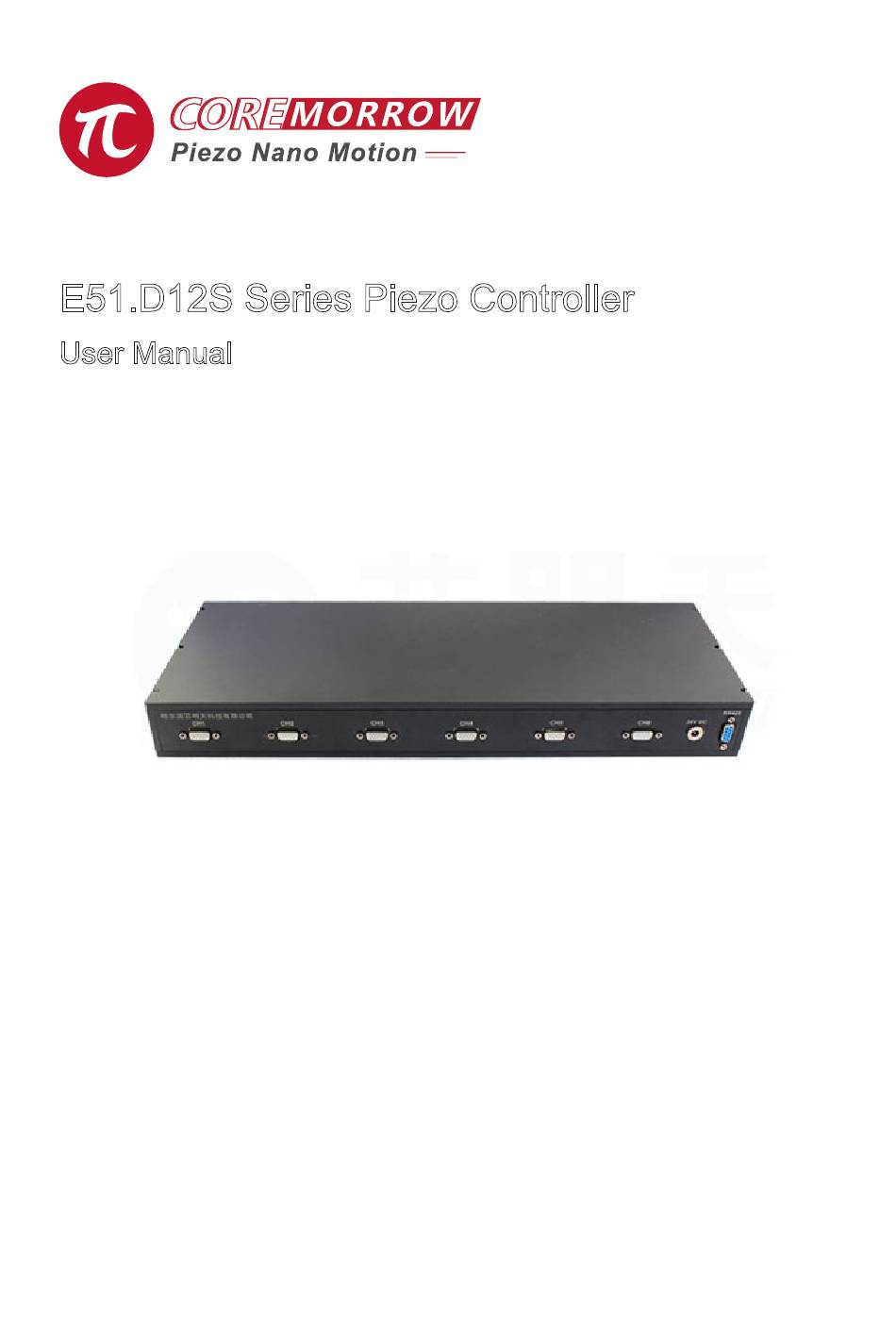

- Page 1 E51.D12S Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E51.D12S Servo controller SGS sensor 18 channels...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the E51.D12S series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Introduction …………………………………………………………………………………………………………… 2 1.2 Safety Instructions ………………………………………………………………………………………………… 2 1.3 Notes ……………………………………………………………………………………………………………………… 2 2. Introduction ………………………………………………………………………………………………………………… 3 3.Driving Principle …………………………………………………………………………………………………………… 3 4.Checking ……………………………………………………………………………………………………………………… 4 5.Installation …………………………………………………………………………………………………………………… 4 5.1 Installation Precautions ………………………………………………………………………………………… 4 5.2 Ensure Ventilation …………………………………………………………………………………………………… 4 5.3 Connect power ………………………………………………………………………………………………………... -
Page 4: Security
The latest user manual is available for download on CoreMorrow website. When operating the E51.D12S, the user manual should be placed near the system for easy reference in time. If the user manual is missing or damaged, please contact CoreMorrow customer service department. -
Page 5: Introduction
supplements or technical descriptions. If your user manual is incomplete, it will miss a lot of important information, cause serious or fatal injuries, and cause property damage. Please read and understand the content in the user manual before installing and operating the E51.D12S. Only professionals who are authorized to meet the technical requirements could install, operate, maintain and clean the E51.D12S. -
Page 6: Checking
5.Installation 5.1 Installation Precautions Note! Improper installation of the E51.D12S series piezo controller may cause personal injury or damage the E51.D12S series piezo controller! Installation and using of E51.D12S should be close to the power source, so that the power plug can be easily and quickly disconnected from the main power source. -
Page 7: Appearance
E51.When the power supply is disconnected, connect the PZT&Sensor cable to the E51.D12S controller interface. Note that the number on the piezo actuator corresponds to the number of the controller. Connect to the computer control mode of PC, connect to PC through the cable connection USB interface or RS-232/422 interface socket. -
Page 8: Interface
E51.D12S Series Piezo Controller User Manual 6.3 Interface DB15-HD interface(Drive output and sensor connector) Pin definition Pin definition CH2 drive output Sensing power supply ground CH3 drive output Sensing power supply ground CH3 sensor input signal - Constant voltage drive output... -
Page 9: Operating Calculation
7.Operating Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo Pa=Average output[W] Cpiezo=Piezo actuator capacitance[F] Upp=Peak and peak drive voltage [V] f=Operating frequency of the sine wave[Hz] Us=Drive voltage[V]（（Vs+）-（Vs-）） Frequency vs Voltage 0.1μf 0.3μf 1μf 1.8μf 3.6μf... -
Page 10: Transportation And Storage
9.1 Disposal When disposing of old equipment, please abide by the national regulations and local regulations.Please dispose of the old equipment properly.Please contact CoreMorrow for the upgrade and replacement of old equipment in order to meet the customer's handling of system products. -
Page 11: After-Sales Service
Any part of E51.D12S is dismantled, there will be no warranty service. E51.D12S is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians.
