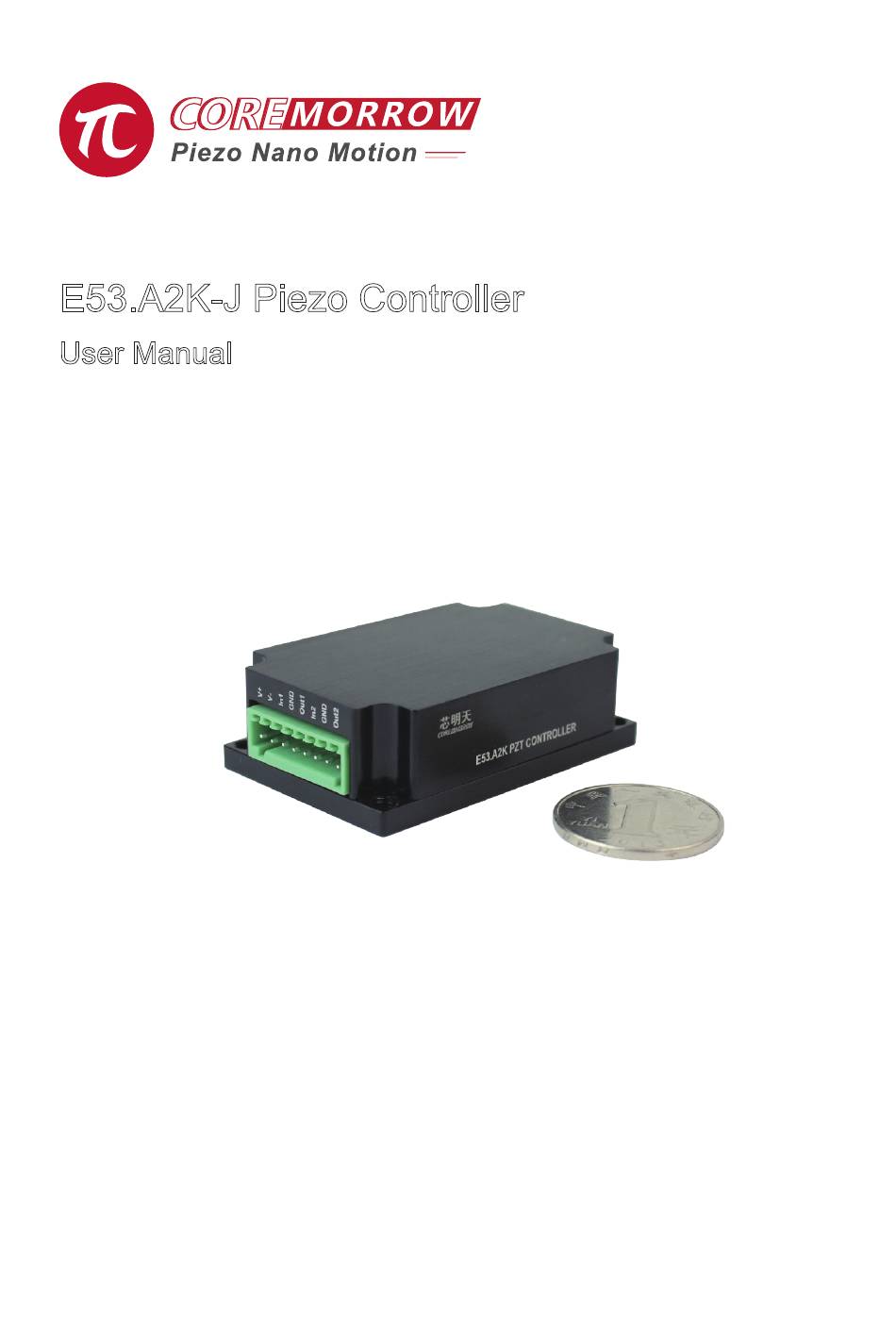

- Page 1 E53.A2K-J Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E53.A2K-J Open loop 2 channel...
- Page 2 PZT are connected correctly and the operating voltage is within the allowable range of this PZT. Cautious! E53.A2K-J housing should be installed on a horizontal surface in an area with a 3CM air flow area to prevent internal convection in the vertical direction. Insufficient airflow can cause equipment to overheat or premature instrument damage.
- Page 3 Contents 1. Introduction ………………………………………………………………………………………………………………… 2 1.1 Features ……………………………………………………………………………………………………………… 2 1.2 Frequency vs Voltage Curve ………………………………………………………………………………… 2 1.3 Pin Definition ……………………………………………………………………………………………………… 3 2.Driving Principle …………………………………………………………………………………………………………… 3 3.Appearance ………………………………………………………………………………………………………………… 4 4.Drawings ……………………………………………………………………………………………………………………… 4 5.Notes and suggestions ………………………………………………………………………………………………… 5 6.Contact us …………………………………………………………………………………………………………………… 5...
- Page 4 E53.A2K-J Piezo Controller User Manual 1. Introduction Industrial, small size, dual-channel piezo amplifier E53.A2K-J is specially designed for industrial applications. It features small size, light mass, dualchannel and low dynamics. E53.A2K-J can drive two capacitive loads at the same time. 1.1 Features Two channels, open loop control Analog control input -1.67~10V...
- Page 5 1.3 Pin Definition ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Function Description ① DC24V power supply + ② DC24V power supply - ③ Ain1 PZT1 analog input ④ ⑤ OUT1 PZT1 output + ⑥ Ain2 PZT2 analog input ⑦ ⑧...

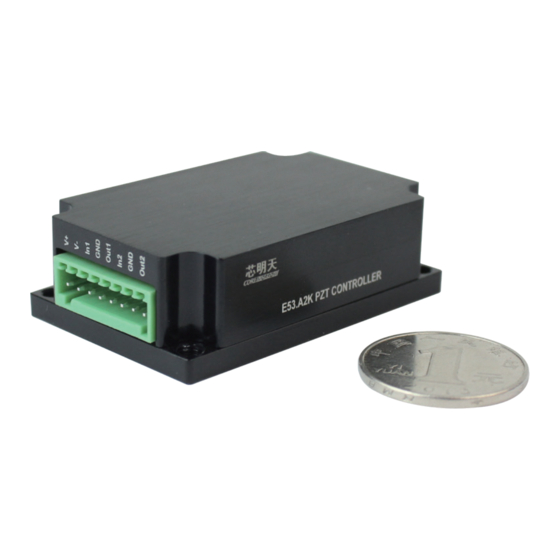

- Page 6 E53.A2K-J Piezo Controller User Manual 3.Appearance 4.Drawings 4-M4THRU...
- Page 7 5.Notes and suggestions E53.A2K-J cannot be used to drive inductive loads. If the inductive loads are driven, the product may be damaged. If there is no need, please do not twist the potentiometer easily. 6.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd.
