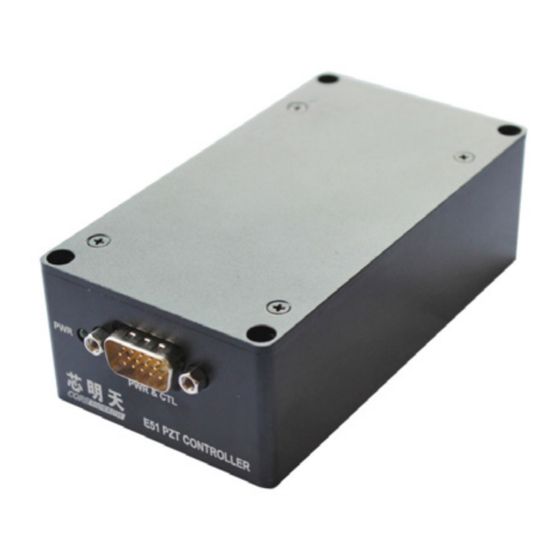

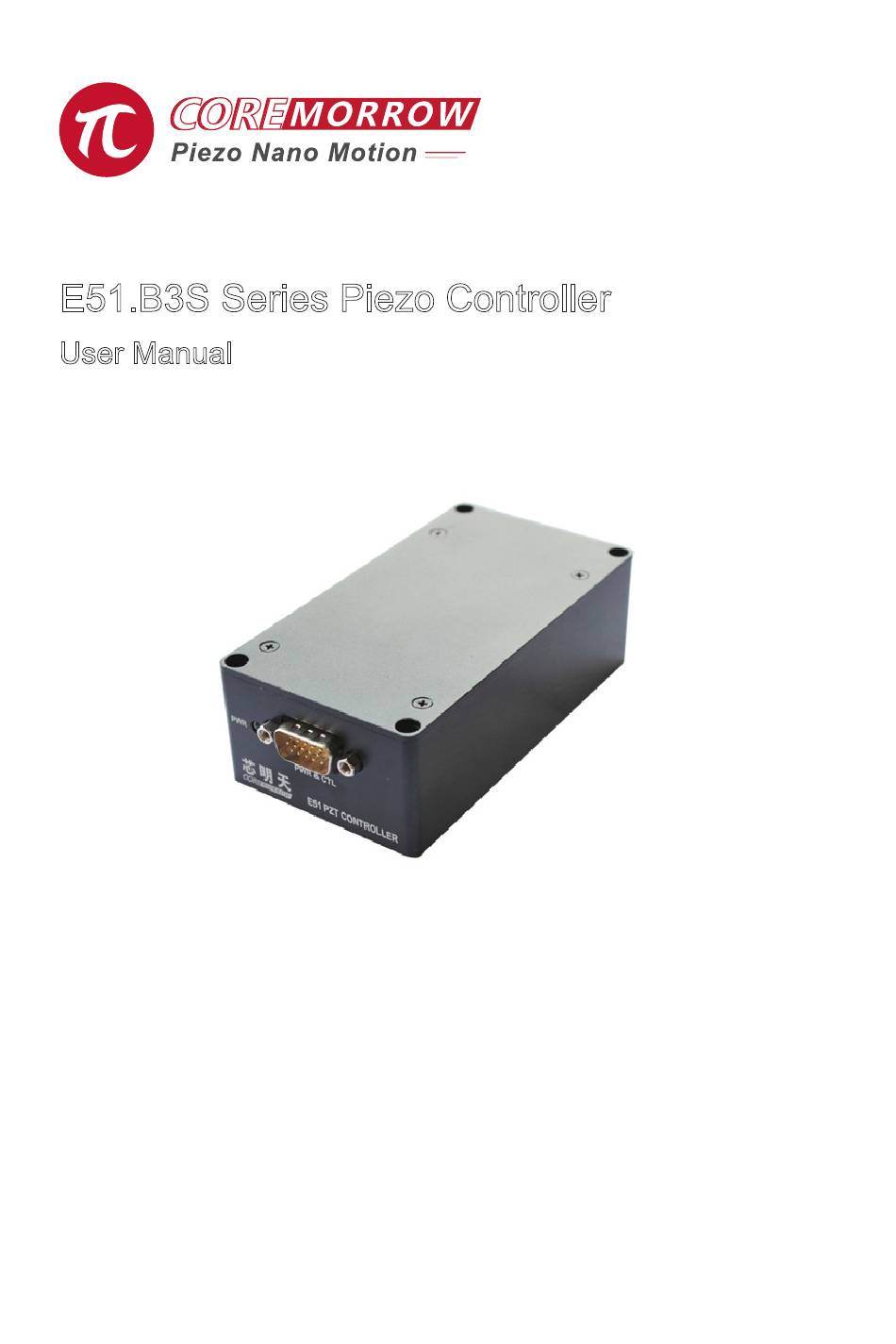

- Page 1 E51.B3S Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E51.B3S-H1 Piezo Controller SGS sensor ■ E51.B3S-I1 Piezo Controller SGS sensor...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the E51.B3S series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Introduction …………………………………………………………………………………………………………… 2 1.2 Safety Instructions ………………………………………………………………………………………………… 2 1.3 Notes ……………………………………………………………………………………………………………………… 2 2. Introduction ………………………………………………………………………………………………………………… 3 2.1 Features ………………………………………………………………………………………………………………… 3 2.2 Applicaitons …………………………………………………………………………………………………………… 3 2.3 Order information…………………………………………………………………………………………………… 3 3.Driving Principle …………………………………………………………………………………………………………… 4 4.Power Calculation ………………………………………………………………………………………………………… 4 5.Panel Introduction …………………………………………………………………………………………………………... -
Page 4: Security
The latest user manual is available for download on CoreMorrow website. When operating the E51.B3S, the user manual should be placed near the system for easy reference in time. If the user manual is missing or damaged, please contact CoreMorrow customer service department. -
Page 5: Introduction
supplements or technical descriptions. If your user manual is incomplete, it will miss a lot of important information, cause serious or fatal injuries, and cause property damage. Please read and understand the content in the user manual before installing and operating the E51.B3S. Only professionals who are authorized to meet the technical requirements could install, operate, maintain and clean the E51.B3S. -
Page 6: Driving Principle
E51.B3S Series Piezo Controller User Manual 3.Driving Principle High voltage Power Analog input output amplifier Sensor signal Open input loop Sensor Control input servo Sensor Servo control output 4.Power Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo... -
Page 7: Panel Introduction
5.Panel Introduction Drive output and sensor input Power supply and control Pin definition Pin definition CH 2 drive output +24V power supply ground CH 3 drive output CH 2 sensor control switch CH 3 sensor input - AGND CH 3 sensor input + AGND Sensor power supply: DC 10V AGND... -
Page 8: Notes And Suggestions
E51.B3S Series Piezo Controller User Manual 6.Notes and suggestions E51.B3S cannot be used to drive inductive loads. If the inductive loads are driven, the product may be damaged. When the power is high (the sum of the average current of the drive output is greater than 40mA), please pay attention to heat dissipation so that the temperature of the shell is kept below 65℃... -
Page 9: Service And Maintenance
Any part of E51 is dismantled, there will be no warranty service. .B3S is a precision instrument which should be handled with care. .B3S In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians. -
Page 10: Contact Us
E51.B3S Series Piezo Controller User Manual 9.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
