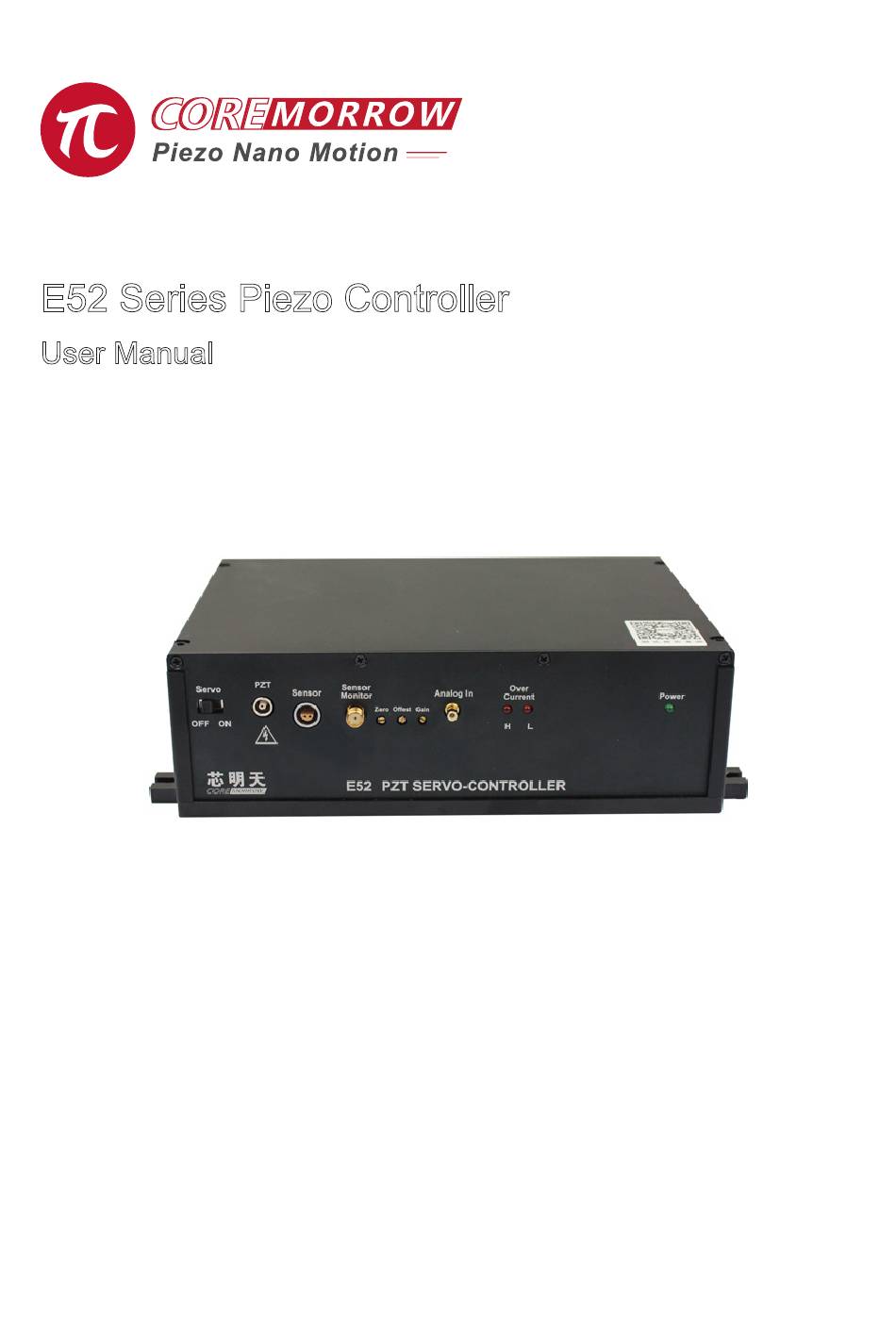

- Page 1 E52 Series Piezo Controller User Manual Version: V1.0 This document describes the following products: E52.B1S-H Servo piezo controller(standard version) E52.B1S-I Servo piezo controller(simplified version) E52.A1K-H Open loop piezo controller...
- Page 2 声明 Declaration! This user manual is a integrated user manual of the E52 series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Features ………………………………………………………………………………………………………………… 2 1.2 Applicaitons …………………………………………………………………………………………………………… 2 1.3 Order information…………………………………………………………………………………………………… 2 2. Driving Principle ………………………………………………………………………………………………………… 2 3.Appearance ………………………………………………………………………………………………………………… 3 4. Frequency Load Curves ……………………………………………………………………………………………… 4 5.Interface ……………………………………………………………………………………………………………………… 4 6.Power Calculation ………………………………………………………………………………………………………… 5 7. Notes and Suggestions ……………………………………………………………………………………………… 6 8. -
Page 4: Security
E52 Series Piezo Controller User Manual 1.Security 1.1 Features High power (50W) Peak current (Higher than 17A) Optional sensor closed loop module Combination of active and passive heat dissipation Over-temperature protection 1.2 Applicaitons Piezo spot rubber valve Piezo drives with large electrostatic capacity and requiring rapid response 1.3 Order information... -
Page 5: Appearance
3.Appearance Front Panel Rear Panel Side Inlet Side Outlet Top Heat Dissipation Drawing... -
Page 6: Frequency Load Curves
E52 Series Piezo Controller User Manual 4. Frequency Load Curves 5.Interface... -
Page 7: Power Calculation
Description Functions ① Power indicator Green, lights when power's on Overcurrent Red, lights when the output current exceeds the rated ② value indicator ③ Analog input Analog voltage input interface ④ Potentiometer Parameters adjustment(sensing zero, offset, gain) ⑤ Sensor monitor Detect sensor output, voltage range 0~10V ⑥... -
Page 8: Notes And Suggestions
E52 Series Piezo Controller User Manual 7. Notes and Suggestions When the power used is large or the ambient temperature is high, external auxiliary heat dissipation can be considered. The temperature of the over-temperature power off protection is 75±5 ℃ , but this function should be used as the protection against accidents under the limit condition. -
Page 9: Transportation And Storage
In the process of transportation, storage and use, attention should be paid to fire prevention, shockproof, waterproof and moisture proof. Note: Pay attention to frost when the E52 series piezo controller is powered on in winter to avoid burning the controller! Check whether the controller has frost before power on (frost usually occurs when moving from outdoor to indoor). -
Page 10: After-Sales Service
Any part of E52 is dismantled, there will be no warranty service. E52 is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians.
