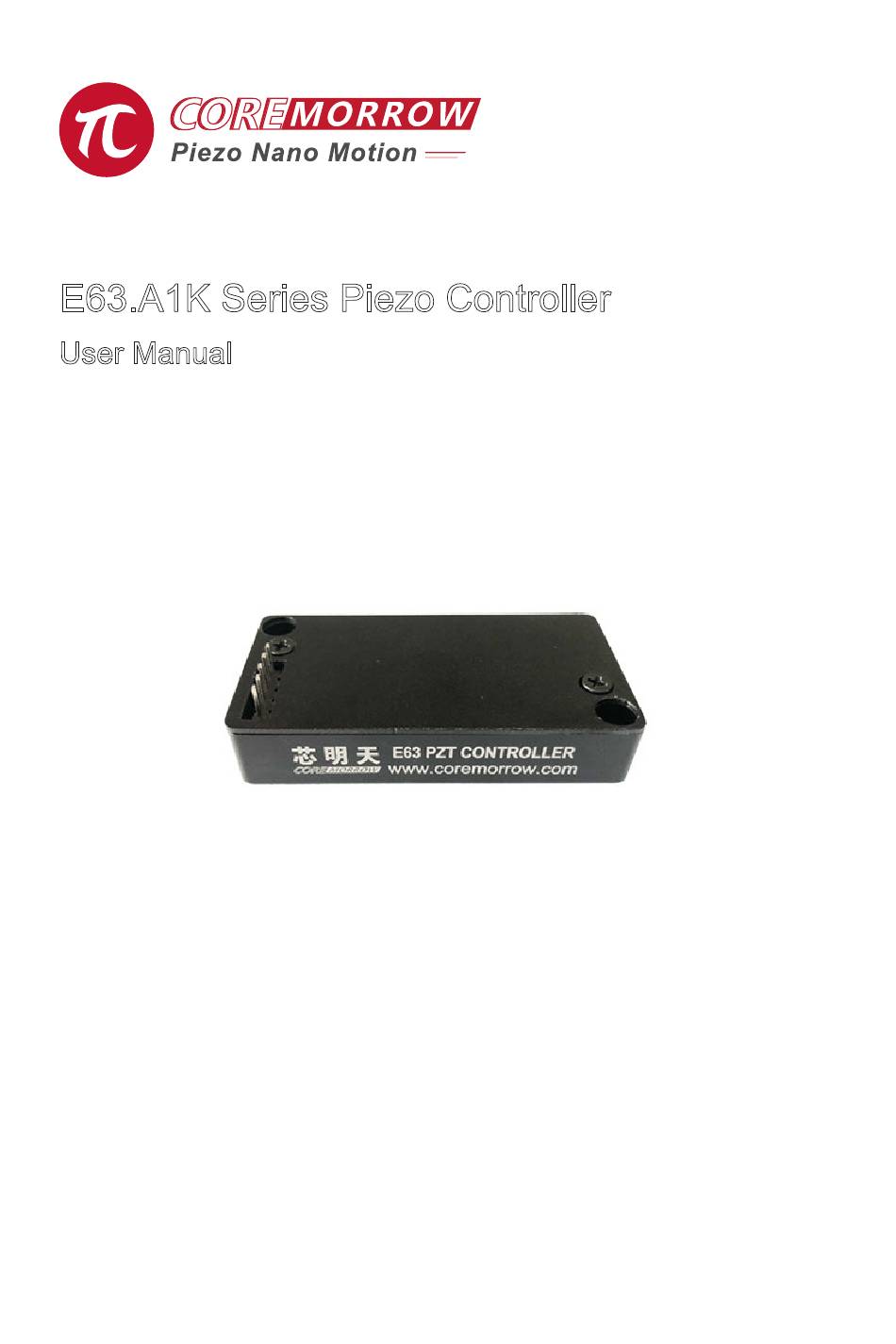

- Page 1 E63.A1K Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E63.A1K Open loop 1 channel...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the E63.A1K series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
- Page 3 Contents 1. Introduction ………………………………………………………………………………………………………………… 2 1.1 Features ………………………………………………………………………………………………………………… 2 1.2 Applicaitons …………………………………………………………………………………………………………… 2 1.3 Order information…………………………………………………………………………………………………… 2 2.Driving Principle …………………………………………………………………………………………………………… 2 3.Appearance ………………………………………………………………………………………………………………… 3 4.Pin Definition………………………………………………………………………………………………………………… 3 5.Notes and suggestions ………………………………………………………………………………………………… 4 6.Customer Service ………………………………………………………………………………………………………… 4 7.Contact us …………………………………………………………………………………………………………………… 5...
- Page 4 E63.A1K Series Piezo Controller User Manual 1. Introduction 1.1 Features Super small size Low power consumption 15V (±0.5V) power supply Peak current 100mA Ave current 12mA Unload bandwidth 1KHz Output short circuit protection 1.2 Applicaitons Driving piezo actuators 1.3 Order information E63.A1K——1Channel Open loop...

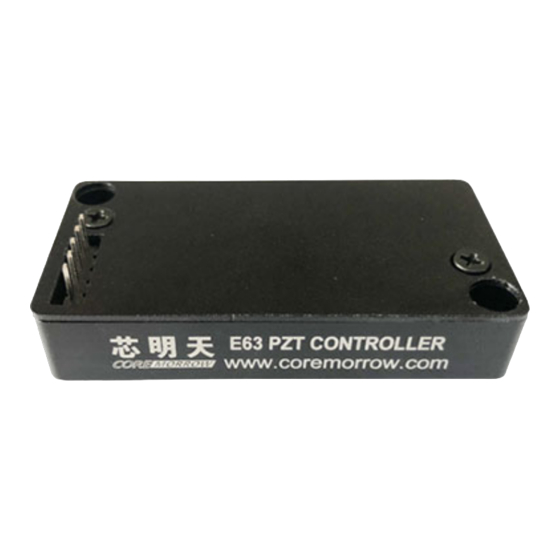

- Page 5 3.Appearance 4.Pin Definition Pin No. Functions Power supply: +15VDC/0.5A Supply voltage ground and control input ground, AGND Analog voltage input Voltage output ground: SGND output Analog voltage output Housing Shielding ground GND...
- Page 6 E63.A1K Series Piezo Controller User Manual 5.Notes and suggestions E63.A1K cannot be used to drive inductive loads. If the inductive loads are driven, the product may be damaged. The highest output voltage of E63.A1K will decrease with the increase of output current, so please pay attention to it when using.
- Page 7 7.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
