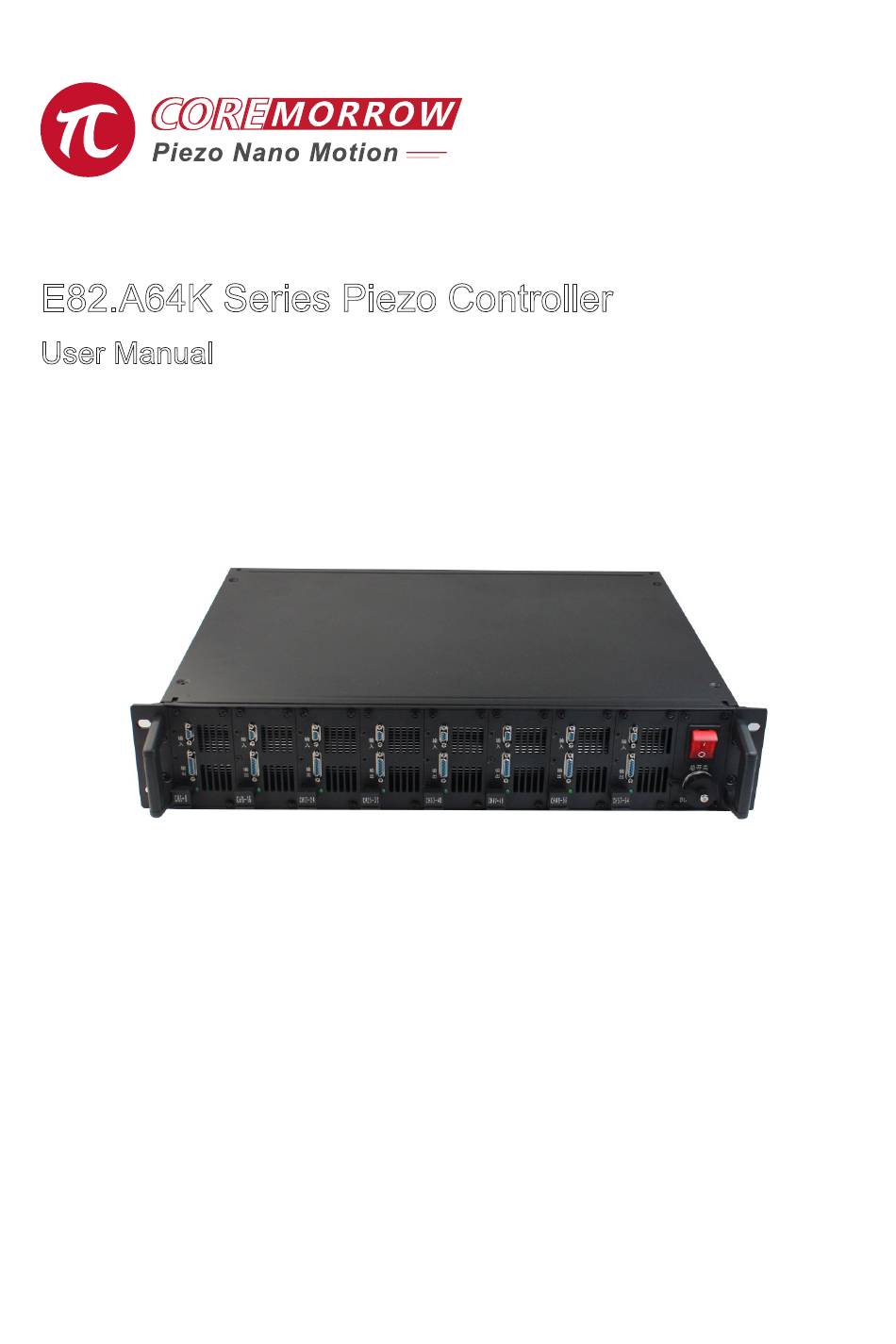

- Page 1 E82.A64K Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E82.A64K Open loop controller 64 channels...
- Page 2 声明 Declaration! This user manual is a integrated user manual of the E82.A64K series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Features ……………………………………………………………………………………………………………… 2 1.2 Safety instructions ……………………………………………………………………………………………… 2 1.3 User Manual Notes ……………………………………………………………………………………………… 2 2. Features and Applications …………………………………………………………………………………………… 3 2.1 Panel introduction ……………………………………………………………………………………………… 3 2.2 Input & Output Interface Definition …………………………………………………………………… 4 3. Checking ……………………………………………………………………………………………………………………… 4 4.Installment ……………………………………………………………………………………………………………………... -
Page 4: Security
When using E82.A64K series piezo controller, the user manual should be placed near the system for easy reference in time. If the user manual is lost or damaged, please contact... -
Page 5: Features And Applications
If the user manual is incomplete, it will miss a lot of important information, cause serious or fatal injuries, and cause property damage. You have read and understood the contents of the user manual before installing and operating the E82.A64K series piezoelectric controller. -
Page 6: Input & Output Interface Definition
Please keep the original packaging materials for subsequent maintenance and using. 4.Installment 4.1 Installation Precautions Note! Improper installation of the E82.A64K series piezoelectric controller may cause personal injury or damage it! -
Page 7: Ensure Ventilation
Installation and using of E82.A64K should be close to the power source, so that the power plug can be easily and quickly disconnected from the main power source. Use included power cable to connect E82.A64K series piezoelectric controller system. If power cable provided by our company must be replaced, please use power cord with large enough size and effective grounding. -
Page 8: Parameters
E82.A64K Series Piezo Controller User Manual 5.Parameters 5.1 Environmental conditions The using environment of E82.A64Kseries controller: Environmental conditions Condition description Application For room use only Highest relative humidity 80%, temperature can reach 30℃ Environment humidity Highest relative humidity 50%, temperature can reach 40℃... -
Page 9: Power Calculation
6.Power Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo Pa=Average output[W] Cpiezo=Piezo actuator capacitance[F] Upp=Peak and peak drive voltage [V] f=Operating frequency of the sine wave[Hz] Us=Drive voltage[V]（（Vs+）-（Vs-）） 7. Maintenance, storage, transportation 7.1 Cleaning measures Note! The PCB board of the function module in the E82.A64K system is an ESD (electrostatic discharge) sensitive device. -
Page 10: Service And Maintenance
Any part of E82.A64K is dismantled, there will be no warranty service. E82.A64K is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians. -
Page 11: Contact Us
9.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
