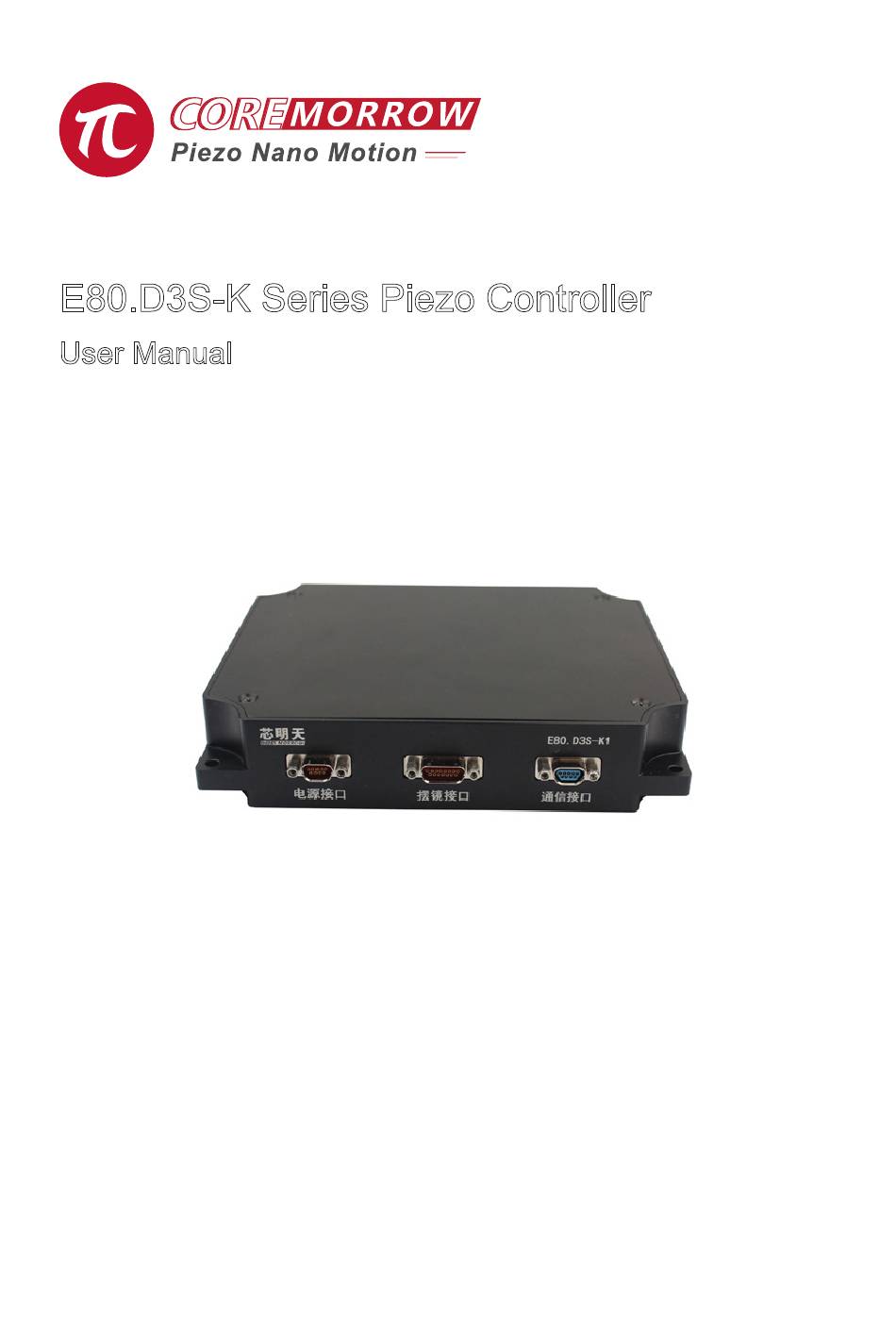

- Page 1 E80.D3S-K Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E80.D3S-K Servo controller SGS sensor 3 channels...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the E80.D3S-K series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Introduction …………………………………………………………………………………………………………… 2 1.2 Safety Instructions ………………………………………………………………………………………………… 2 1.3 Notes ……………………………………………………………………………………………………………………… 2 2. Features and Applications …………………………………………………………………………………………… 3 2.1 Series …………………………………………………………………………………………………………………… 3 2.2 Appearance …………………………………………………………………………………………………………… 4 3.Checking ……………………………………………………………………………………………………………………… 5 4.Installment …………………………………………………………………………………………………………………… 5 4.1 Installation Precautions ………………………………………………………………………………………… 5 4.2 Ensure ventilation …………………………………………………………………………………………………... -
Page 4: Security
Only authorized professional technicians with corresponding qualifications could open the piezo controller When opening E80.D3S-K series controller, please disconnect the power plug. Please do not touch any internal parts when operating under bare conditions. 1.3 Notes The contents in the user manual are all standard descriptions, and the customized... -
Page 5: Features And Applications
The latest user manual is available for download on CoreMorrow website. When operating the E80.D3S-K, the user manual should be placed near the system for easy reference in time. If the user manual is missing or damaged, please contact CoreMorrow customer service department. -

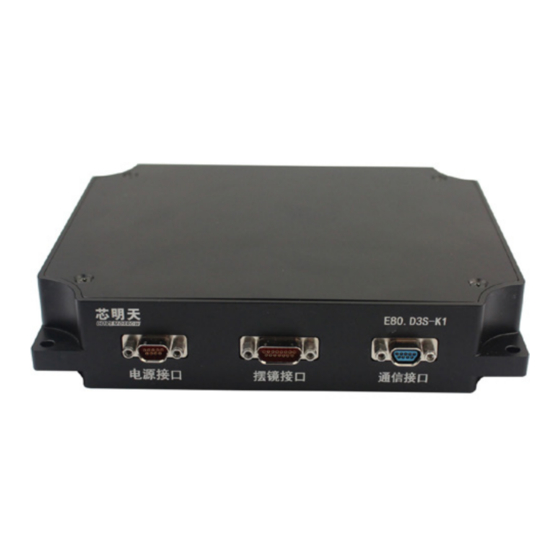

Page 6: Appearance
E80.D3S-K Series Piezo Controller User Manual 2.2 Appearance 2.2.1 Front Panel Symbol Function Description Power interface J30J-9ZKSP Input power connector Output voltage drives PZT. Mirror interface J30J-15ZKSP Sensor input signal. The computer is connected with the controller Communication interface through RS-422 to control. -
Page 7: Checking
4.Installment 4.1 Installation Precautions Note! Improper installation of the E80.D3S-K series piezo controller may cause personal injury or damage the E80.D3S-K series piezo controller! Installation and using of E80.D3S-K should be close to the power source, so that the power plug can be easily and quickly disconnected from the main power source. -
Page 8: Connect Power
Connect to the computer control mode of PC, connect to PC through the cable connection USB interface or RS-232/422 interface socket. 5.Parameter 5.1 Environmental Conditions The using environment of E80.D3S-K series controller: Environmental conditions Condition description Application For room use only Highest relative humidity 80%, temperature can reach 30℃... -
Page 9: Drawings
5.2 Drawings The using environment of E80.D3S-K series controller: 4-R2 5.3 Pin Definition 5.5.1 Power Interface Pin No. Pin definition Power supply + Power supply + Power supply + Power supply + NULL Power supply - Power supply - Power supply -... - Page 10 E80.D3S-K Series Piezo Controller User Manual 5.5.2 Mirror interface Pin No. Pin definition Sensor monitor 2 + (S2+) Sensor monitor 1 +(S1+) Receive data + (422-R+) Send data - (422-T-) Signal ground (GND) Sensor monitor 2 - (S2-) Sensor monitor 1 -(S1-)
-
Page 11: Operating Calculation
6.Operating Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo Pa=Average output[W] Cpiezo=Piezo actuator capacitance[F] Upp=Peak and peak drive voltage [V] f=Operating frequency of the sine wave[Hz] Us=Drive voltage[V]（（Vs+）-（Vs-）） 7. Maintenance, Storage, Transportation 7.1 Cleaning measures Note! The PCB board of the function module in the E80.D3S-K system is an ESD (electrostatic discharge) sensitive device. -
Page 12: Service And Maintenance
Any part of E80.D3S-K is dismantled, there will be no warranty service. E80.D3S-K is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians. -
Page 13: Contact Us
9.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
