- Page 1 E53.B Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ E53.B Servo 1 channel SGS sensor...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the E53.B series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
- Page 3 Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Introduction …………………………………………………………………………………………………………… 2 1.2 Safety Instructions ………………………………………………………………………………………………… 2 1.3 Notes ……………………………………………………………………………………………………………………… 2 2. Introduction ………………………………………………………………………………………………………………… 3 2.1 Features ………………………………………………………………………………………………………………… 3 2.2 Applicaitons …………………………………………………………………………………………………………… 3 2.3 Order information…………………………………………………………………………………………………… 3 3.Driving Principle …………………………………………………………………………………………………………… 4 4.Appearance ………………………………………………………………………………………………………………… 4 5.Power Calculation …………………………………………………………………………………………………………...
- Page 4 The latest user manual is available for download on CoreMorrow website. When operating theE53.B, the user manual should be placed near the system for easy reference in time. If the user manual is missing or damaged, please contact CoreMorrow customer service department.
- Page 5 supplements or technical descriptions. If your user manual is incomplete, it will miss a lot of important information, cause serious or fatal injuries, and cause property damage. Please read and understand the content in the user manual before installing and operating the E53.B. Only professionals who are authorized to meet the technical requirements could install, operate, maintain and clean the E53.B.
- Page 6 E53.B Series Piezo Controller User Manual 3.Driving Principle High voltage output Power Analog in amplifier Offset adjustment Sensor signal input Open loop Sensor servo Control mode control Sensor output Servo 4.Appearance 5.Power Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo...

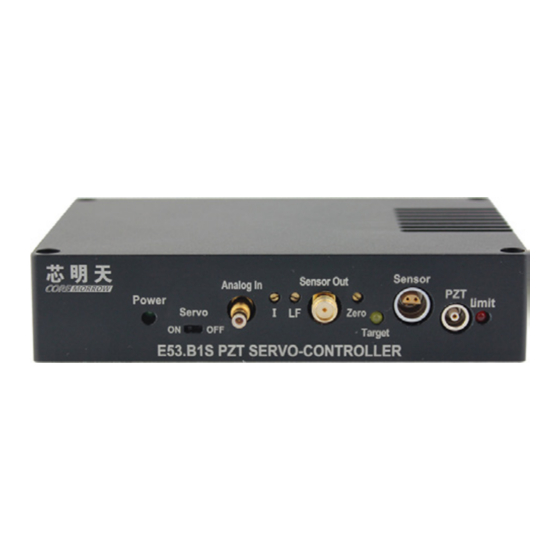

- Page 7 6.Panel Introduction ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Function Description ① Power indicator Green, lights when power's on ② Servo Open loop/Servo switching ③ Analog input Analog voltage input interface ④ Integral Adjustment of deviation integral in Servo Monitoring output of the position signal ⑤...
- Page 8 E53.B Series Piezo Controller User Manual 7.Notes and suggestions E53.B cannot be used to drive inductive loads. If the inductive loads are driven, the product may be damaged. If there is no need, please do not twist the potentiometer easily.
