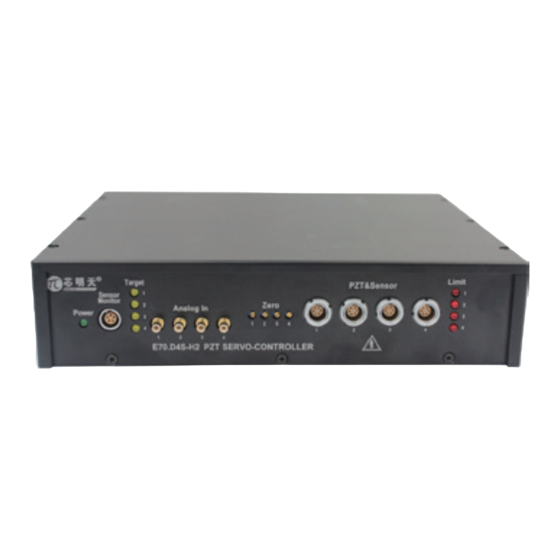

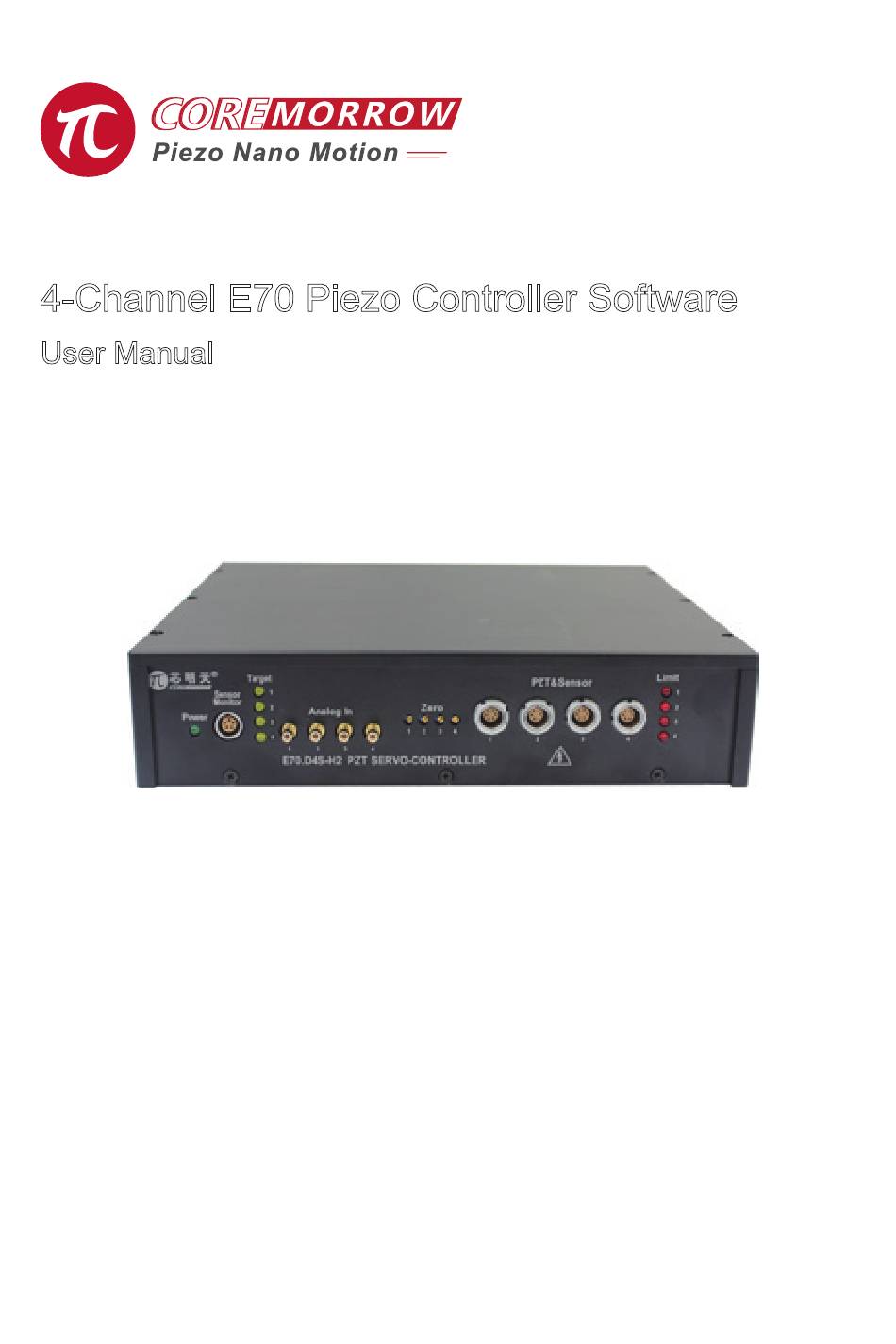

- Page 1 4-Channel E70 Piezo Controller Software User Manual Version: V1.0 This document describes the following products: ■ E70.C4K Piezo Controller Open loop 4 channels ■ E70.D4S Piezo Controller SGS sensor 4 channels...
-
Page 2: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 1 1.1 Purpose ………………………………………………………………………………………………………………… 1 1.2 Safety instructions ………………………………………………………………………………………………… 1 1.3 User Manual Notes ………………………………………………………………………………………………… 2 2. Software purpose ………………………………………………………………………………………………………… 2 3. Software Installation …………………………………………………………………………………………………… 3 3.1 Serial Port Setup …………………………………………………………………………………………………… 3 3.2 USB Communication ……………………………………………………………………………………………… 4 4. -
Page 3: Security
1.Security 1.1 Purpose The surface of 4-Channel E70 should be kept clean and dry, do't operate in humid or static environment. 4-Channel E70 is used to drive capacitive loads (such as piezo actuator). 4-Channel E70 can't be used in the manuals of other products with the same name. Pay attention to 4-Channel E70 can't be used to drive inductive or impedance loads. -
Page 4: User Manual Notes
The contents described in user manual are standard product descriptions, special product parameters are not described in detail in this manual. User manual is available for download on CoreMorrow website(www.coremorrow. com). When using 4-Channel E70, the user manual should be placed near the system for easy reference in time. -
Page 5: Software Installation
3. Software Installation 3.1 Serial Port Setup Notice! The serial port cable should be plugged and unplugged when the computer and the piezo controller interface are closed or one end is closed, otherwise it may damage the computer serial port or the serial chip of the controller interface! Rear panel of 4-Channel E70 provides a 9-pin D-SUB connector (2/3/5 is serial port direct connection, 6/7/8/9 is RS-422 communication interface, please refer to the user manual of 4-Channel E70 piezo controller for details). -
Page 6: Software Instruction
4-Channel E70 Piezo Controller Software User Manual 4-Channel E70 front panel provides a micro USB interface, please connect the PC and 4-Channel E70 through the USB cable, and then open the system. Select the input mode of the controller as software control mode, switch the control switch on the panel to M, turn on the computer, and run the interface software of the controller for corresponding control. -
Page 7: Waveform
4.2 Waveform 1. Click"Read Open/Closed-Loop Condition"，read the open/closed loop data, and match the piezo controller state. 2. Select "Single Channel High-Freq Control". Single Channel high-freq, the frequency could be up to 1kHz~4kHz. 3. Click"Wave Type", select the send waveform, e.g. sine wave, square wave, triangular wave, sawtooth wave. -
Page 8: Configuration
4-Channel E70 Piezo Controller Software User Manual U = voltage, V f = frequency, Hz C = capacitance, F 5. Check the entered data values and click "Send". CH1 data waveform is sent. 6. Click the "Stop" to complete the waveform output stop. 4.3 Configuration... -
Page 9: System Settings
Click "Read System Information". After the data is transmitted from the piezocontroller to the software, click "Save As Default" to complete the matching work between the computer control software and the piezo controller. (Note: after the same computer read system information read successfully and save as the default, when using the software again, there is no need to carry out configuration, read system information and other operations!) 4.4 System Settings... -
Page 10: Phase Control
4-Channel E70 Piezo Controller Software User Manual 4.5 Phase Control Phase control: the waveform and the frequency must be the same, P-P voltage and offset could be different, phase Angle range from 0.0 to 360.0 degrees. Phase wavefor control mode: select the waveform, then fill in the frequency, P-P voltage, offset, phase angle and then fill in the related data of other channels, click"... - Page 11 Send waveform data to the piezo controller: Click "Start" to send the phase angle waveform:...
-
Page 12: Contact Us
4-Channel E70 Piezo Controller Software User Manual Stop sending multi-channel waveform: 5.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
