Single- and dual-channel analog output terminals 0 to 20 ma and 4 to 20 ma
Table of Contents

Advertisement

Quick Links

Documentation
KL401x, KL402x
Single- and Dual-Channel Analog Output Terminals 0 to 20 mA
and 4 to 20 mA
Version:
Date:
4.0
2017-10-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL401 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beckhoff KL401 Series

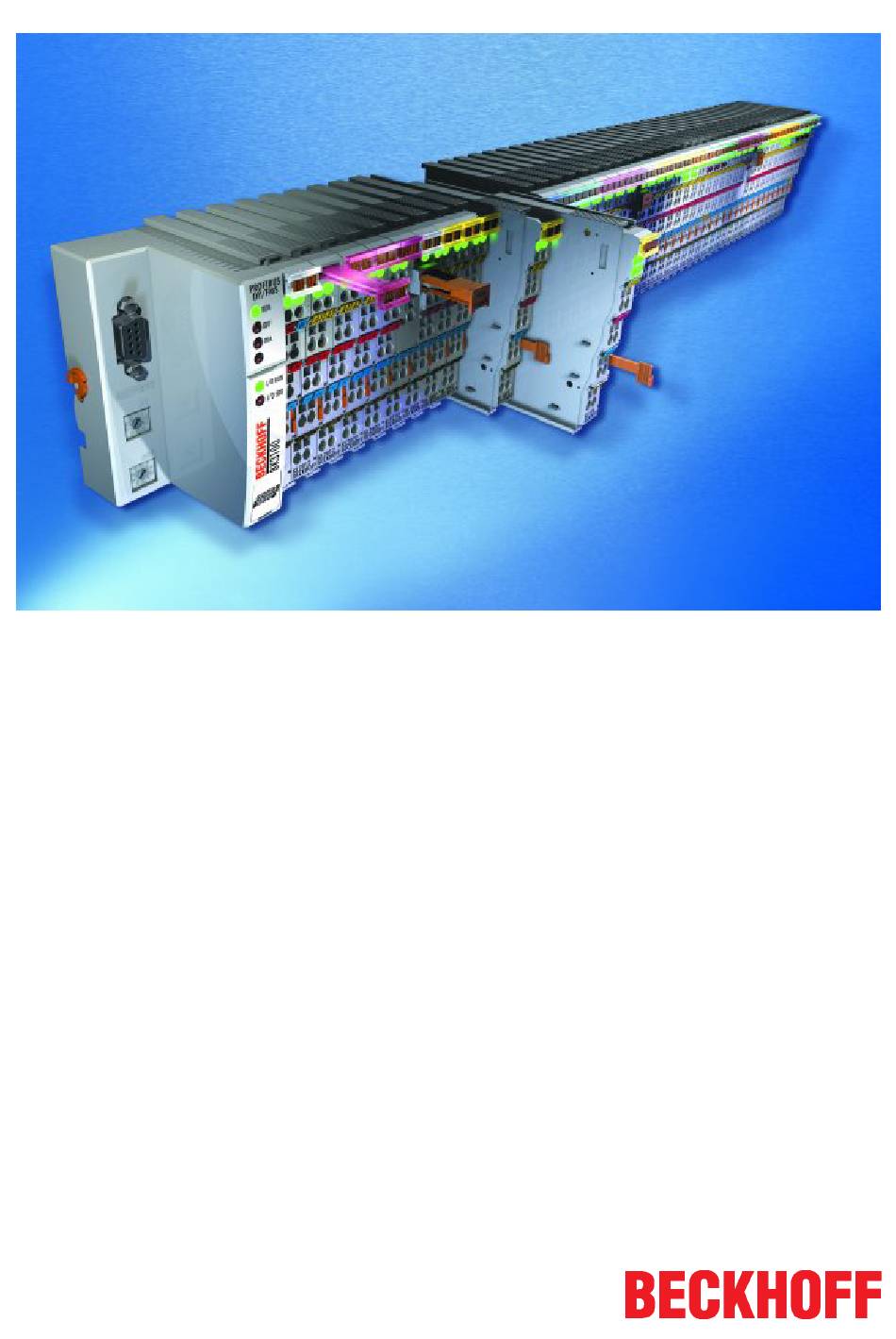

  • Page 1 Documentation KL401x, KL402x Single- and Dual-Channel Analog Output Terminals 0 to 20 mA and 4 to 20 mA Version: Date: 2017-10-25...
  • Page 3: Table Of Contents

    Table of contents Table of contents 1 Foreword .............................. 5 Notes on the documentation...................... 5 Safety instructions ..........................  6 Documentation issue status...................... 7 2 Product overview............................ 8 KL401x - introduction........................ 8 KL402x - introduction........................ 9 KL401x, KL402x - technical data .................... 10 Basic function principles .......................
  • Page 4 Table of contents Version: 4.0 KL401x, KL402x...
  • Page 5: Foreword

    The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany.
  • Page 6: Safety Instructions

    All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards.
  • Page 7: Documentation Issue Status

    Foreword Documentation issue status Version Comment • Migration • Update Technical data • Structure update • Chapters KS2000 configuration software and Access from the user program added Firmware (FW) and hardware (HW) versions Documen- KL4011 KL4012 KL4021 KL4022 tation, Firmware Firmware Firmware Firmware...
  • Page 8: Product Overview

    Product overview Product overview KL401x - introduction Fig. 1: KL4011, KL4012 The KL401x analog output terminals generate analog output signals in the range between 0 mA and 20 mA. The power is supplied to the process level with a resolution of 12 bits, and is electrically isolated. The output channels of the Bus Terminal and the 24 V power supply have a common ground potential.
  • Page 9: Kl402X - Introduction

    Product overview KL402x - introduction Fig. 2: KL4021, KL4022 The KL402x analog output terminals generate analog output signals in the range between 4 mA and 20 mA. The power is supplied to the process level with a resolution of 12 bits, and is electrically isolated. The output channels of the Bus Terminal and the 24 V power supply have a common ground potential.
  • Page 10: Kl401X, Kl402X - Technical Data

    Product overview KL401x, KL402x - technical data Technical Data KL4011 KL4021 KL4012 KL4022 Number of outputs Power supply for the electronics 24 V via the power contacts (alternatively 15 V with power supply terminal KL9515) Signal current 0 mA…20 mA 4 mA…20 mA 0 mA…20 mA 4 mA…20 mA Load < 500 Ω...
  • Page 11: Basic Function Principles

    Product overview Basic function principles The analog output terminals • KL4011 and KL4012 generate signals in the range 0 mA to 20 mA, • KL4021 and KL4022 generate signals in the range 4 mA to 20 mA, with a resolution of 12 bits (4095 steps). The output voltage is output electrically isolated from the K-bus. The supply voltage fed in via the power contacts is used for generating the output current.
  • Page 12: Mounting And Wiring

    Each assembly must be terminated at the right hand end with an EL9011 bus end cap, to ensure the protection class and ESD protection. Fig. 3: Spring contacts of the Beckhoff I/O components Installation on mounting rails Risk of electric shock and damage of device!
  • Page 13: Fig. 4 Attaching On Mounting Rail

    Mounting and wiring Assembly Fig. 4: Attaching on mounting rail The Bus Coupler and Bus Terminals are attached to commercially available 35 mm mounting rails (DIN rails according to EN 60715) by applying slight pressure: 1. First attach the Fieldbus Coupler to the mounting rail. 2.
  • Page 14: Fig. 5 Disassembling Of Terminal

    Mounting and wiring Disassembly Fig. 5: Disassembling of terminal Each terminal is secured by a lock on the mounting rail, which must be released for disassembly: 1. Pull the terminal by its orange-colored lugs approximately 1 cm away from the mounting rail. In doing so for this terminal the mounting rail lock is released automatically and you can pull the terminal out of the bus terminal block easily without excessive force.
  • Page 15: Fig. 6 Power Contact On Left Side

    Mounting and wiring Fig. 6: Power contact on left side Possible damage of the device Note that, for reasons of electromagnetic compatibility, the PE contacts are capacitatively coupled to the mounting rail. This may lead to incorrect results during insulation testing or Attention to damage on the terminal (e.g.
  • Page 16: Installation Instructions For Enhanced Mechanical Load Capacity

    Mounting and wiring Installation instructions for enhanced mechanical load capacity Risk of injury through electric shock and damage to the device! Bring the Bus Terminal system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Additional checks The terminals have undergone the following additional tests:...
  • Page 17: Fig. 7 Standard Wiring

    Mounting and wiring • The High Density Terminals (HD Terminals) include electronics and connection level in a single enclosure and have advanced packaging density. Standard wiring (ELxxxx / KLxxxx) Fig. 7: Standard wiring The terminals of ELxxxx and KLxxxx series have been tried and tested for years. They feature integrated screwless spring force technology for fast and simple assembly.
  • Page 18: Wiring

    Mounting and wiring The Bus Terminals from these series with 16 terminal points are distinguished by a particularly compact design, as the packaging density is twice as large as that of the standard 12 mm Bus Terminals. Massive conductors and conductors with a wire end sleeve can be inserted directly into the spring loaded terminal point without tools.
  • Page 19: Shielding

    Mounting and wiring See the following table for the suitable wire size width. Terminal housing ELxxxx, KLxxxx ESxxxx, KSxxxx Wire size width (single core wires) 0.08 ... 2.5 mm 0.08 ... 2.5 mm Wire size width (fine-wire conductors) 0.08 ... 2.5 mm 0,08 ... 2.5 mm Wire size width (conductors with a wire end sleeve) 0.14 ...
  • Page 20: Kl4011, Kl4012 - Connection And Led Description

    Mounting and wiring KL4011, KL4012 - connection and LED description Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Fig. 11: KL4011, KL4012 - connection and LEDs KL4011 connection...
  • Page 21: Kl4021, Kl4022 - Connection And Led Description

    Mounting and wiring KL4021, KL4022 - connection and LED description Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Fig. 12: KL4021, KL4022 - connection and LEDs KL4021 connection...
  • Page 22: Atex - Special Conditions (Standard Temperature Range)

    • EN 60079-0:2012+A11:2013 • EN 60079-15:2010 Marking The Beckhoff fieldbus components with standard temperature range certified for potentially explosive areas bear one of the following markings: II 3G   KEMA 10ATEX0075 X Ex nA IIC T4 Gc   Ta: 0 … 55°C II 3G   KEMA 10ATEX0075 X Ex nC IIC T4 Gc   Ta: 0 … 55°C Version: 4.0...
  • Page 23: Atex - Special Conditions (Extended Temperature Range)

    • EN 60079-0:2012+A11:2013 • EN 60079-15:2010 Marking The Beckhoff fieldbus components with extended temperature range (ET) certified for potentially explosive areas bear the following marking: II 3G   KEMA 10ATEX0075 X Ex nA IIC T4 Gc   Ta: -25 … 60°C II 3G   KEMA 10ATEX0075 X Ex nC IIC T4 Gc   Ta: -25 … 60°C KL401x, KL402x Version: 4.0...
  • Page 24: Atex Documentation

    Notes about operation of the Beckhoff terminal systems in potentially explo- sive areas (ATEX) Pay also attention to the continuative documentation Note Notes about operation of the Beckhoff terminal systems in potentially explosive areas (ATEX) that is available in the download area of the Beckhoff homepage http:\\www.beckhoff.com! Version: 4.0...
  • Page 25: Configuration Software Ks2000

    Configuration Software KS2000 Configuration Software KS2000 KS2000 - Introduction The KS2000 configuration software permits configuration, commissioning and parameterization of bus couplers, of the affiliated bus terminals and of Fieldbus Box Modules. The connection between bus coupler / Fieldbus Box Module and the PC is established by means of the serial configuration cable or the fieldbus. Fig. 13: KS2000 configuration software Configuration You can configure the Fieldbus stations with the Configuration Software KS2000 offline.
  • Page 26 Configuration Software KS2000 Commissioning The KS2000 software facilitates commissioning of machine components or their fieldbus stations: Configured settings can be transferred to the fieldbus modules by means of a download. After a login to the terminal station, it is possible to define settings in couplers, terminals and Fieldbus Box modules directly online. The same high-level dialogs and register access are available for this purpose as in the configuration phase.
  • Page 27: Access From The User Program

    Access from the user program Access from the user program KL401x, KL402x - terminal configuration The terminal can be configured and parameterized via the internal register structure. Each terminal channel is mapped in the Bus Coupler. Mapping of the terminal data in the Bus Coupler memory may differ, depending on the Bus Coupler type and the set mapping configuration (e.g. Motorola/Intel format, word alignment etc.).
  • Page 28: Fig. 16 Mapping In The Interbus Coupler - Example For Kl4012, Kl4022

    Access from the user program BK4000 Interbus Coupler The BK4000 Interbus Coupler maps the terminals in the delivery state with 2 bytes per channel: • KL4011, KL4021: 2 bytes of output data • KL4012, KL4022: 4 bytes of output data Parameterization via the fieldbus is not possible. If the control and status byte is to be used, the KS2000 configuration software is required.
  • Page 29: Mapping In The Bus Coupler

    Access from the user program Mapping in the Bus Coupler As already described in the Terminal Configuration section, each Bus Terminal is mapped in the Bus Coupler. This mapping is usually done with the default setting in the Bus Coupler / Bus Terminal. The KS2000 configuration software or a master configuration software (e.g. ComProfibus or TwinCAT System Manager) can be used to change this default setting.
  • Page 30: Kl4011, Kl4021

    Access from the user program 5.2.1 KL4011, KL4021 Default mapping for: CANopen, CANCAL, DeviceNet, ControlNet, Modbus, RS232 and RS485 coupler Conditions Word offset High byte Low byte Complete evaluation: no Ch0 D1 Ch0 D0 Motorola format: no Word alignment: any Default mapping for: Profibus and Interbus Coupler Conditions Word offset...
  • Page 31: Kl4012, Kl4022

    Access from the user program 5.2.2 KL4012, KL4022 Default mapping for: CANopen, CANCAL, DeviceNet, ControlNet, Modbus, RS232 and RS485 coupler Conditions Word offset High byte Low byte Complete evaluation: no Ch0 D1 Ch0 D0 Motorola format: no Ch1 D1 Ch1 D0 Word alignment: any Default mapping for: Profibus and Interbus Coupler Conditions...
  • Page 32: Register Description

    Access from the user program Address Name Default value Storage medium R0…R4 reserved 0x0000 Raw DAC value variable R5 [} 32] Diagnostic register (not used) 0x0000 Command register - not used 0x0000 Terminal type e.g. 4012 R8 [} 32] Software version number 0x???? R9 [} 33] Multiplex shift register 0x0218/0130...
  • Page 33 Access from the user program • R9: Software version (X.y) The software version can be read as a string of ASCII characters. • R10: Data length R10 contains the number of multiplexed shift registers and their length in bits. The Bus Coupler sees this structure. •...
  • Page 34: Control And Status Byte

    Access from the user program • R20: Manufacturer scaling - gain (A_h) 16 bit signed integer*2 [0x0020] This register contains the scale factor of the manufacturer's equation of the straight line (Eq. 1.1 [} 11]). The straight-line equation is enabled via register R32 [} 34]. 1 corresponds to register value 0x0100.
  • Page 35: Process Data Exchange

    Access from the user program • in process data exchange (REG = 0 5.5.1 Process data exchange Control byte in process data exchange (REG=0) A gain and offset calibration of the terminal can be carried out with the control byte. The code word must be entered in R31 [} 34] so that the terminal calibration can be carried out.
  • Page 36: Register Communication

    Access from the user program 5.5.2 Register communication Register access via process data exchange • Bit 7=1: Register mode If bit 7 of the control byte is set, the first two bytes of the user data are not used for process data exchange but written into the register set of the terminal or read from it.
  • Page 37: Examples Of Register Communication

    Access from the user program Sample 1: Reading of register 8 in the BK2000 with a KL4012 and the end terminal: If the following bytes are transferred from the controller to the terminal, Byte Byte 3 Byte 2 Byte 1 Byte 0 Name DataOUT 1...
  • Page 38: Example 2: Writing To An User Register

    Access from the user program • The terminal returns the firmware version 0x3341 in the input data word (byte 1 and byte 2). This is to be interpreted as an ASCII code: ◦ ASCII code 0x33 represents the digit 3 ◦...
  • Page 39 Access from the user program Input Data (answer of the bus terminal) Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte 0x9F (1001 1111 0x12 0x35 Explanation: • The terminal returns the value of the control byte as a receipt in the status byte. •...
  • Page 40 Access from the user program Input Data (answer of the bus terminal) Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte 0xA0 (1010 0000 0x00 0x02 Explanation: • The terminal returns the value of the control byte as a receipt in the status byte. •...
  • Page 41: Appendix

    Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
  • Page 42: List Of Illustrations

    List of illustrations Fig. 1 KL4011, KL4012 .......................... Fig. 2 KL4021, KL4022 .......................... Fig. 3 Spring contacts of the Beckhoff I/O components................. Fig. 4 Attaching on mounting rail ......................Fig. 5 Disassembling of terminal......................Fig. 6 Power contact on left side......................

This manual is also suitable for:

Kl402 seriesKl4011Kl4012Kl4021Kl4022
