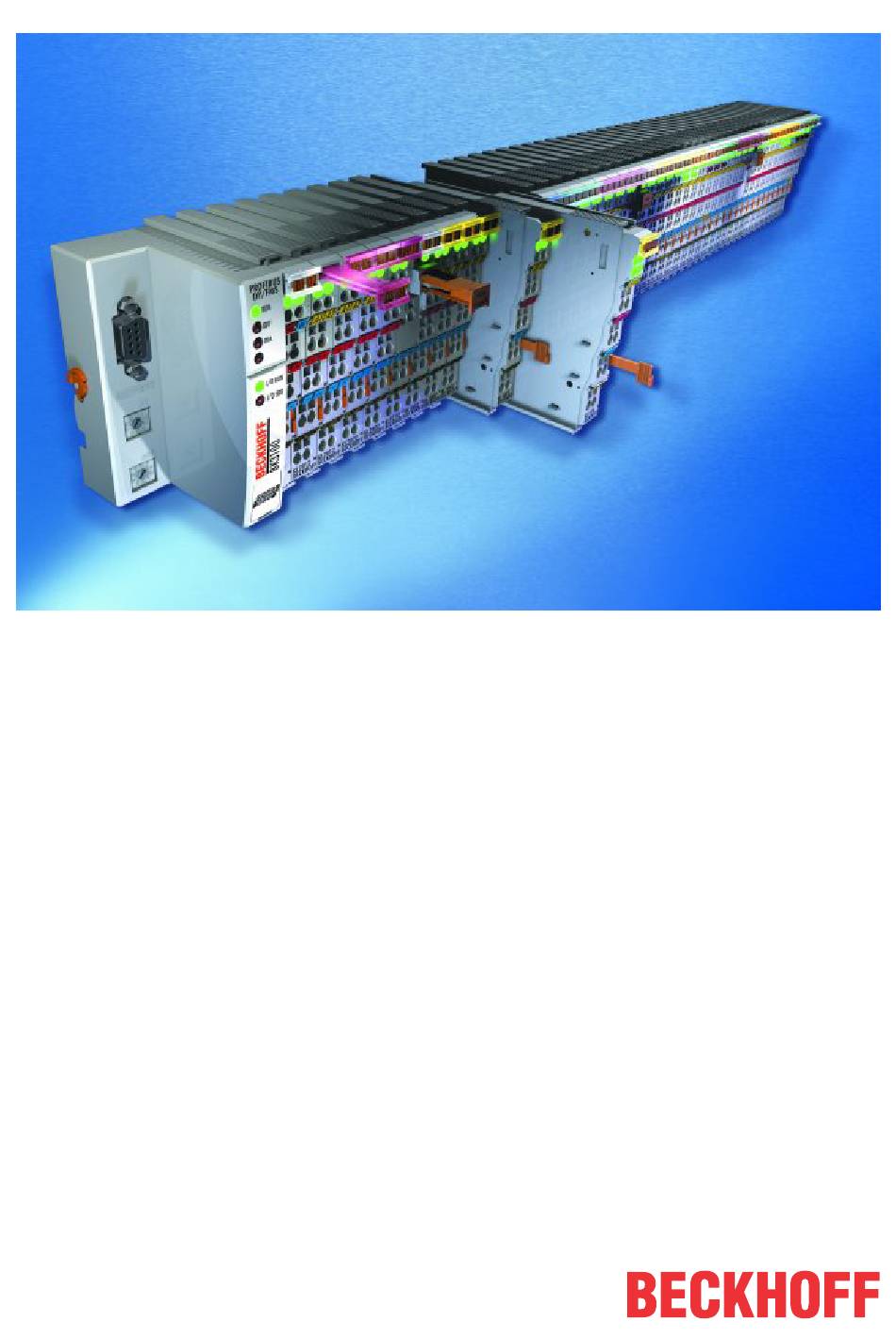

- Page 1 Documentation KL6301-0000 EIB/KNX Bus Terminal Version: 3.0.0 Date: 2019-05-24...
-
Page 3: Table Of Contents
Installation instructions for enhanced mechanical load capacity ............. 18 ATEX - Special conditions (standard temperature range) ............... 19 ATEX Documentation ........................ 20 4 EIB................................ 21 Function of the KL6301 ........................ 21 5 Programming ............................ 22 TwinCAT libraries .......................... 22 6 Appendix .............................. 23 Support and Service ........................ 23 KL6301-0000 Version: 3.0.0... - Page 4 Table of Contents Version: 3.0.0 KL6301-0000...
-
Page 5: Foreword
The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany. Copyright © Beckhoff Automation GmbH & Co. KG, Germany. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue Status
• Migration • Connection technology updated • Connection corrected 2.3.0 • Programming description moved to the Beckhoff Information System [} 22] • TwinCAT library TcEIB (formerly TcKL6301) updated to version 5.2.0 • ATEX notes added 2.2.0 • Integrated TwinCAT library TcKL6301 updated to version 3.0.6 2.1.0... -
Page 8: Product Overview

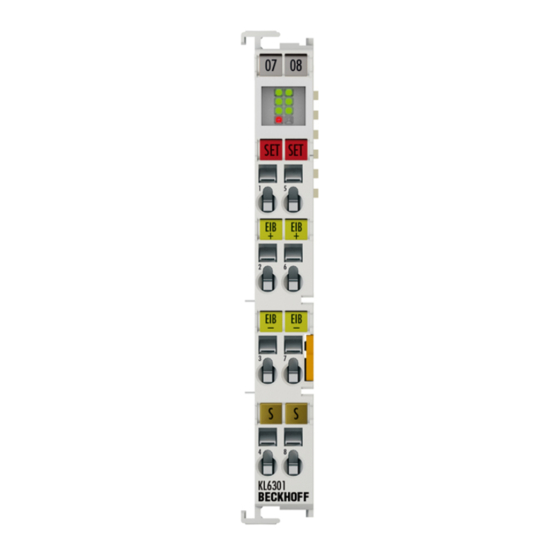

Introduction Fig. 1: KL6301 The EIB Bus Terminal KL6301 connects the EIB/KNX bus system to the Beckhoff Bus Terminal system. The KL6301 offers the possibility to exchange any data with EIB/KNX devices. The ETS software is not required for configuring the KL6301. It is configured and parameterized via TwinCAT function blocks (IEC61131-3). -
Page 9: Diagnostic Leds
SEND green Toggles for each EIB telegram sent RECEIVE green Toggles for each received EIB telegram - EIB ERROR red Comes on in the event of an error. Goes out once the error was read. KL6301-0000 Version: 3.0.0... -
Page 10: Technical Data
Product overview Technical data Technical data KL6301-0000 Number of outputs Transmission standard Twisted Pair (TP) Data transfer rate 9.6 kbyte Electrical isolation 500 V (K-Bus/EIB) Power supply for the electronics via the K-bus and through the power contacts EIB electronics via an external EIB power supply... -
Page 11: Mounting And Wiring
To mount the mounting rails with a height of 7.5 mm under the terminals and couplers, you should use flat mounting connections (e.g. countersunk screws or blind rivets). KL6301-0000 Version: 3.0.0... -
Page 12: Fig. 4 Disassembling Of Terminal
EL91xx, EL92xx) interrupt the power contacts and thus represent the start of a new supply rail. PE power contact The power contact labeled PE can be used as a protective earth. For safety reasons this contact mates first when plugging together, and can ground short-circuit currents of up to 125 A. Version: 3.0.0 KL6301-0000... -
Page 13: Connection
• The terminals of ESxxxx and KSxxxx series feature a pluggable connection level and enable steady wiring while replacing. • The High Density Terminals (HD Terminals) include electronics and connection level in a single enclosure and have advanced packaging density. KL6301-0000 Version: 3.0.0... -
Page 14: Fig. 6 Standard Wiring
12 mm Bus Terminals. Massive conductors and conductors with a wire end sleeve can be inserted directly into the spring loaded terminal point without tools. Version: 3.0.0 KL6301-0000... -
Page 15: Wiring
2. The wire can now be inserted into the round terminal opening without any force. 3. The terminal point closes automatically when the pressure is released, holding the wire securely and permanently. See the following table for the suitable wire size width. KL6301-0000 Version: 3.0.0... - Page 16 0.08 ... 1.5 mm Wire size width (fine-wire conductors) 0.25 ... 1.5 mm Wire size width (conductors with a wire end sleeve) 0.14 ... 0.75 mm Wire size width (ultrasonically “bonded" conductors) only 1.5 mm Wire stripping length 8 ... 9 mm Version: 3.0.0 KL6301-0000...
-
Page 17: Connection
EIB plus (red), internally connected with terminal point 2 EIB - EIB minus (grey), internally connected with terminal point 3 Shield Shield, internally connected with terminal point 4 Set terminal points The terminal points for Set have no function and must not be used! KL6301-0000 Version: 3.0.0... -
Page 18: Installation Instructions For Enhanced Mechanical Load Capacity
• Use countersunk head screws to fasten the mounting rail • The free length between the strain relief and the wire connection should be kept as short as possible. A distance of approx. 10 cm should be maintained to the cable duct. Version: 3.0.0 KL6301-0000... -
Page 19: Atex - Special Conditions (Standard Temperature Range)
80°C at the wire branching points, then cables must be selected whose tempera- ture data correspond to the actual measured temperature values! • Observe the permissible ambient temperature range of 0 to 55°C for the use of Beckhoff fieldbus compo- nents standard temperature range in potentially explosive areas! •... -
Page 20: Atex Documentation
Notes about operation of the Beckhoff terminal systems in potentially explosive ar- eas (ATEX) Pay also attention to the continuative documentation Notes about operation of the Beckhoff terminal systems in potentially explosive areas (ATEX) that is available in the download area of the Beckhoff homepage http:\\www.beckhoff.com! Version: 3.0.0... -
Page 21: Eib
At least one filter has to be parameterized. The type of data is irrelevant for the filter setting. Monitor function No filters must be set if mode 100 is enabled. The filters EIB_GROUP_FILTER are simply left empty and not written. KL6301-0000 Version: 3.0.0... -
Page 22: Programming
Programming Programming TwinCAT libraries Software documentation in the Beckhoff Information System: TwinCAT 2: TwinCAT 2 PLC Lib: EIB TwinCAT 3: TwinCAT 3 PLC Lib: Tc2_EIB Version: 3.0.0 KL6301-0000... -
Page 23: Appendix
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 24 Disassembling of terminal......................Fig. 5 Power contact on left side......................Fig. 6 Standard wiring..........................Fig. 7 Pluggable wiring .......................... Fig. 8 High Density Terminals........................ Fig. 9 Connecting a cable on a terminal point ..................Fig. 10 KL6301 - connection........................Version: 3.0.0 KL6301-0000...
