- Page 1 Documentation KL304x, KL305x Single-, Dual- and Four-Channel Analog Input Terminals, Measuring range: 0...20 mA and 4...20 mA, Single ended Version: Date: 2017-10-06...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword .............................. 5 Notes on the documentation...................... 5 Safety instructions .......................... 6 Documentation issue status...................... 7 2 Product overview............................ 8 KL3041, KL3051 – Introduction ...................... 8 KL3042, KL3052 – Introduction ...................... 9 KL3044, KL3054 – Introduction .................... 10 KL304x, KL305x - Technical data.................... - Page 4 Table of contents Version: 4.0 KL304x, KL305x...
-
Page 5: Foreword
The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue Status
Foreword Documentation issue status Version Comment • Migration • Update Technical data • Structure update • Chapters KS2000 configuration software and Access from the user program added Firmware (FW) and hardware (HW) versions Documen- KL3041 KL3042 KL3044 KL3051 KL3052 KL3054 tation, Version The firmware and hardware versions (delivery state) can be found in the serial number printed on the side of... -
Page 8: Product Overview
Product overview Product overview KL3041, KL3051 – Introduction Fig. 1: KL3041, KL3051 The job of the KL3041 and KL3051 analog input terminals is to supply power to measuring transducers located in the field, and to transmit analog measurement signals with electrical isolation to the automation device. -
Page 9: Kl3042, Kl3052 - Introduction

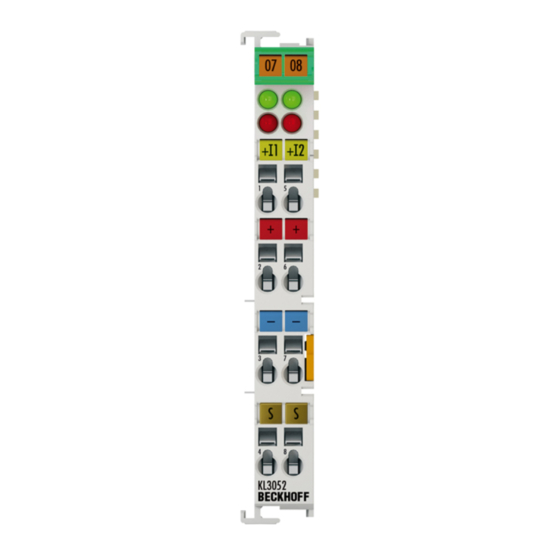

Product overview KL3042, KL3052 – Introduction Fig. 2: KL3042, KL3052 The job of the KL3042 and KL3052 analog input terminals is to supply power to measuring transducers located in the field, and to transmit analog measurement signals with electrical isolation to the automation device. -
Page 10: Kl3044, Kl3054 - Introduction
Product overview KL3044, KL3054 – Introduction Fig. 3: KL3044, KL3054 The job of the KL3044 and KL3054 analog input terminals is to transmit analog measurement signals with electrical isolation to the automation device. The KL3044 terminal processes signals in the range from 0 mA to 20 mA. The KL3054 terminal processes signals in the range from 4 mA to 20 mA. -
Page 11: Kl304X, Kl305X - Technical Data
Product overview KL304x, KL305x - Technical data Technical data KL3041 KL3051 KL3042 KL3052 KL3044 KL3054 Number of inputs Power supply for the sensors 24 V via the power contacts Signal current 0 mA to 4 mA to 0 mA to 4 mA to 0 mA to 20 mA 4 mA to 20 mA 20 mA 20 mA... -
Page 12: Fig. 4 Kl304X, Kl305X - Data Flow
Product overview ◦ On: The limit stop of the A/D converter has been reached. The current is greater than 21.5 mA. ◦ Off: Normal operation Process data output format In the delivery state the process data are shown in two's complement form (integer -1 corresponds to 0xFFFF). -
Page 13: Mounting And Wiring
Each assembly must be terminated at the right hand end with an EL9011 bus end cap, to ensure the protection class and ESD protection. Fig. 5: Spring contacts of the Beckhoff I/O components Installation on mounting rails Risk of electric shock and damage of device! -
Page 14: Fig. 6 Attaching On Mounting Rail
Mounting and wiring Assembly Fig. 6: Attaching on mounting rail The Bus Coupler and Bus Terminals are attached to commercially available 35 mm mounting rails (DIN rails according to EN 60715) by applying slight pressure: 1. First attach the Fieldbus Coupler to the mounting rail. 2. -
Page 15: Fig. 7 Disassembling Of Terminal
Mounting and wiring Disassembly Fig. 7: Disassembling of terminal Each terminal is secured by a lock on the mounting rail, which must be released for disassembly: 1. Pull the terminal by its orange-colored lugs approximately 1 cm away from the mounting rail. In doing so for this terminal the mounting rail lock is released automatically and you can pull the terminal out of the bus terminal block easily without excessive force. -
Page 16: Fig. 8 Power Contact On Left Side
Mounting and wiring Fig. 8: Power contact on left side Possible damage of the device Note that, for reasons of electromagnetic compatibility, the PE contacts are capacitatively coupled to the mounting rail. This may lead to incorrect results during insulation testing or Attention to damage on the terminal (e.g. -
Page 17: Installation Instructions For Enhanced Mechanical Load Capacity
Mounting and wiring Installation instructions for enhanced mechanical load capacity Risk of injury through electric shock and damage to the device! Bring the Bus Terminal system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Additional checks The terminals have undergone the following additional tests:... -
Page 18: Fig. 9 Standard Wiring
Mounting and wiring • The High Density Terminals (HD Terminals) include electronics and connection level in a single enclosure and have advanced packaging density. Standard wiring (ELxxxx / KLxxxx) Fig. 9: Standard wiring The terminals of ELxxxx and KLxxxx series have been tried and tested for years. They feature integrated screwless spring force technology for fast and simple assembly. -
Page 19: Wiring
Mounting and wiring The Bus Terminals from these series with 16 terminal points are distinguished by a particularly compact design, as the packaging density is twice as large as that of the standard 12 mm Bus Terminals. Massive conductors and conductors with a wire end sleeve can be inserted directly into the spring loaded terminal point without tools. -
Page 20: Shielding
Mounting and wiring See the following table for the suitable wire size width. Terminal housing ELxxxx, KLxxxx ESxxxx, KSxxxx Wire size width (single core wires) 0.08 ... 2.5 mm 0.08 ... 2.5 mm Wire size width (fine-wire conductors) 0.08 ... 2.5 mm 0,08 ... 2.5 mm Wire size width (conductors with a wire end sleeve) 0.14 ... -
Page 21: Kl3041, Kl3051 - Connection And Led Description
Mounting and wiring KL3041, KL3051 - Connection and LED description Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Fig. 13: KL3041, KL3051 - Connection and LEDs Connection of KL3041, KL3051... -
Page 22: Kl3042, Kl3052 - Connection And Led Description
Mounting and wiring KL3042, KL3052 - Connection and LED description Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Fig. 14: KL3042, KL3052 - Connection and LEDs Connection of KL3042, KL3052... -
Page 23: Kl3044, Kl3054 - Connection And Led Description
Mounting and wiring KL3044, KL3054 - Connection and LED description Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! WARNING Fig. 15: KL3044, KL3054 - Connection and LEDs Connection of KL3044, KL3054... -
Page 24: Atex - Special Conditions (Standard Temperature Range)
• EN 60079-0:2012+A11:2013 • EN 60079-15:2010 Marking The Beckhoff fieldbus components with standard temperature range certified for potentially explosive areas bear one of the following markings: II 3G KEMA 10ATEX0075 X Ex nA IIC T4 Gc Ta: 0 … 55°C II 3G KEMA 10ATEX0075 X Ex nC IIC T4 Gc Ta: 0 … 55°C Version: 4.0... -
Page 25: Atex - Special Conditions (Extended Temperature Range)
• EN 60079-0:2012+A11:2013 • EN 60079-15:2010 Marking The Beckhoff fieldbus components with extended temperature range (ET) certified for potentially explosive areas bear the following marking: II 3G KEMA 10ATEX0075 X Ex nA IIC T4 Gc Ta: -25 … 60°C II 3G KEMA 10ATEX0075 X Ex nC IIC T4 Gc Ta: -25 … 60°C KL304x, KL305x Version: 4.0... -
Page 26: Atex Documentation
Notes about operation of the Beckhoff terminal systems in potentially explo- sive areas (ATEX) Pay also attention to the continuative documentation Note Notes about operation of the Beckhoff terminal systems in potentially explosive areas (ATEX) that is available in the download area of the Beckhoff homepage http:\\www.beckhoff.com! Version: 4.0... -
Page 27: Configuration Software Ks2000
Configuration Software KS2000 Configuration Software KS2000 KS2000 - Introduction The KS2000 configuration software permits configuration, commissioning and parameterization of bus couplers, of the affiliated bus terminals and of Fieldbus Box Modules. The connection between bus coupler / Fieldbus Box Module and the PC is established by means of the serial configuration cable or the fieldbus. Fig. 16: KS2000 configuration software Configuration You can configure the Fieldbus stations with the Configuration Software KS2000 offline. - Page 28 Configuration Software KS2000 Commissioning The KS2000 software facilitates commissioning of machine components or their fieldbus stations: Configured settings can be transferred to the fieldbus modules by means of a download. After a login to the terminal station, it is possible to define settings in couplers, terminals and Fieldbus Box modules directly online. The same high-level dialogs and register access are available for this purpose as in the configuration phase.
-
Page 29: Access From The User Program
Access from the user program Access from the user program Terminal configuration The terminal can be configured and parameterized via the internal register structure. Each terminal channel is mapped in the Bus Coupler. Mapping of the terminal data in the Bus Coupler memory may differ, depending on the Bus Coupler type and the set mapping configuration (e.g. Motorola/Intel format, word alignment etc.). -
Page 30: Mapping In The Bus Coupler
Access from the user program • KL3041 and KL3051: 2 bytes of input data • KL3042 and KL3052: 4 bytes of input data • KL3044 and KL3054: 8 bytes of input data Parameterization via the fieldbus is not possible. If the control and status byte is to be used, the KS2000 configuration software is required. -
Page 31: Kl3042 And Kl3052
Access from the user program Default mapping for: Profibus and Interbus Coupler Conditions Word offset High byte Low byte Complete evaluation: no Ch1 D0 Ch1 D1 Motorola format: yes Word alignment: any Conditions Word offset High byte Low byte Complete evaluation: yes Ch1 D0 Ch1 CB/SB Motorola format: no... -
Page 32: Kl3044 And Kl3054
Access from the user program Default mapping for: Profibus and Interbus Coupler Conditions Word offset High byte Low byte Complete evaluation: no Ch1 D0 Ch1 D1 Motorola format: yes Ch2 D0 Ch2 D1 Word alignment: any Conditions Word offset High byte Low byte Complete evaluation: yes Ch1 D0... -
Page 33: Register Overview
Access from the user program Default mapping for: Profibus and Interbus Coupler Conditions Word offset High byte Low byte Complete evaluation: no Ch1 D0 Ch1 D1 Motorola format: yes Ch2 D0 Ch2 D1 Word alignment: any Ch3 D0 Ch3 D1 Ch4 D0 Ch4 D1 Conditions... - Page 34 Access from the user program Address Name Default value Storage medium Raw ADC value variable R0 [} 35] R1 to R5 reserved 0x0000 Diagnostic register variable R6 [} 35] Command register - not used 0x0000 R7 [} 35] Terminal type e.g. 3042 R8 [} 35] Software version number 0x???? R9 [} 35]...
-
Page 35: Register Description
Access from the user program Register description The registers can be read or written via the register communication. They are used for the parameterization of the terminal. R0 to R7: Registers in the internal RAM of the terminal The process variables can be used in addition to the actual process image. Their function is specific to the terminal. - Page 36 Access from the user program • R14: reserved • R15: Alignment bits (RAM) The alignment bits are used to place the analog terminal in the Bus Coupler on a byte boundary. R16 to R30: Manufacturer parameter area (SEEROM) The manufacturer parameters are specific for each type of terminal. They are programmed by the manufacturer, but can also be modified by the controller.
- Page 37 Access from the user program Feature bit no. Description of the operation mode Bit 0 User scaling (R33, R34 [} 37]) active [0] Bit 1 Manufacturer scaling (R19, R20 [} 36]) active [1] Bit 2 Watchdog timer active [1] In the delivery state, the watchdog timer is switched on. Bit 3 Sign / amount representation [0] Sign / amount representation is active instead of two's-complement...
- Page 38 Access from the user program • R36: Limit value 2 (Y_2) If the process data are outside this threshold, the appropriate bits are set in the status byte. • R37: Filter constant [0x0000] If the internal filter is activated via R32.11 [} 37], you can choose between the following filter constants in R37 (not possible with KL3044 and KL3054).
-
Page 39: Control And Status Byte
Access from the user program Control and status byte The control and status byte is transmitted from the controller to the terminal. It can be used • in register mode [} 40] (REG = 1 ) or • in process data exchange [} 39] (REG = 0 5.5.1 Process data exchange Control byte in process data exchange (REG=0) -
Page 40: Register Communication
Access from the user program 5.5.2 Register communication Register access via process data exchange • Bit 7=1: Register mode If bit 7 of the control byte is set, the first two bytes of the user data are not used for process data exchange but written into the register set of the terminal or read from it. -
Page 41: Examples Of Register Communication
Access from the user program Example 1: Reading of register 8 in the BK2000 with a KL3042 and the end terminal: If the following bytes are transferred from the control to the terminal, Byte Byte 3 Byte 2 Byte 1 Byte 0 Name DataOUT 1... -
Page 42: Example 2: Writing To An User Register
Access from the user program • The terminal returns the value of the control byte as a receipt in the status byte. • The terminal returns the firmware version 0x3341 in the input data word (byte 1 and byte 2). This is to be interpreted as an ASCII code: ◦... - Page 43 Access from the user program Input Data (answer of the bus terminal) Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte 0x9F (1001 1111 0x12 0x35 Explanation: • The terminal returns the value of the control byte as a receipt in the status byte. •...
- Page 44 Access from the user program Input Data (answer of the bus terminal) Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte 0xA0 (1010 0000 0x00 0x02 Explanation: • The terminal returns the value of the control byte as a receipt in the status byte. •...
-
