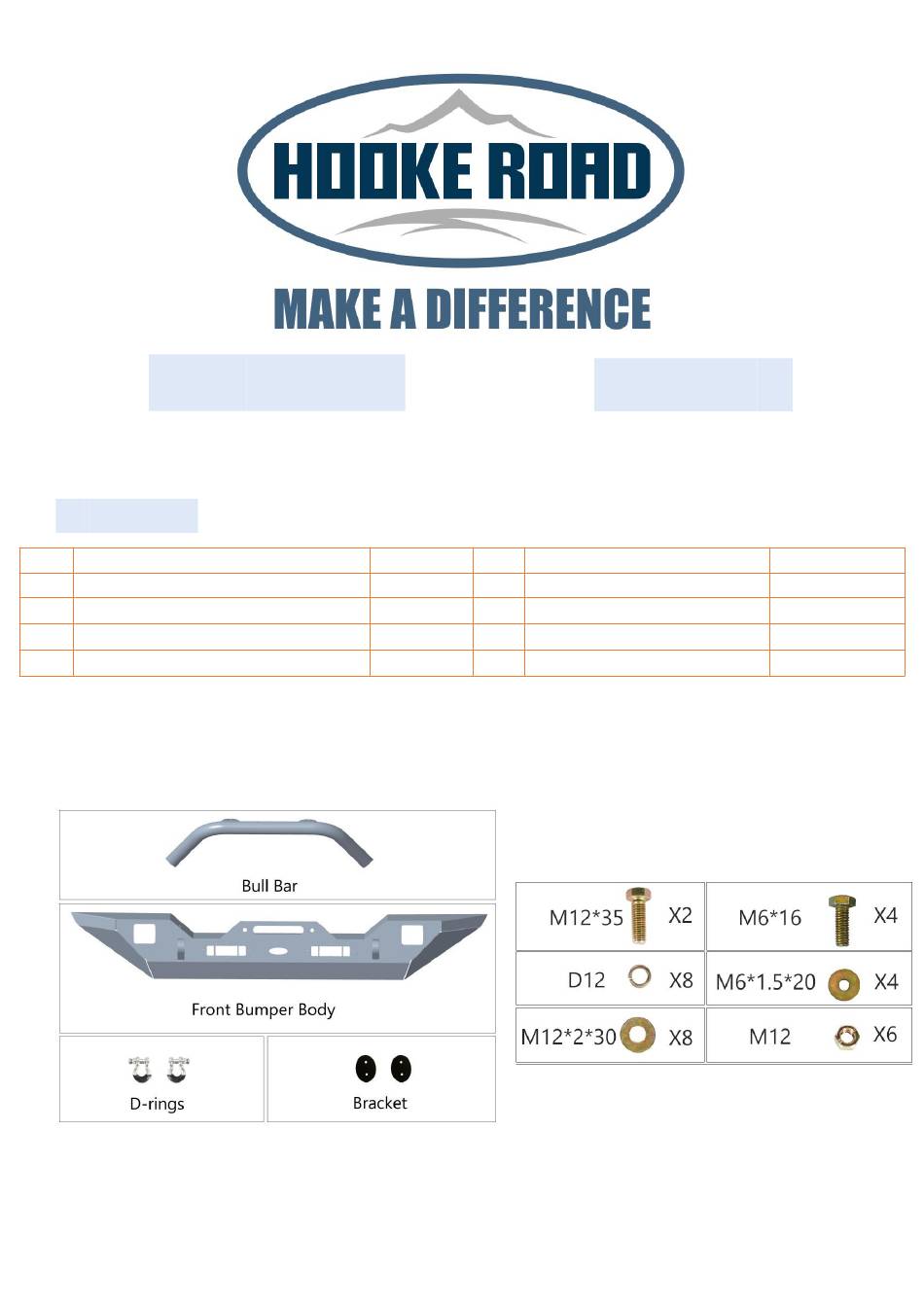

- Page 1 Front Bumper BXG.3018-S (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Flat Washer M6*1.5*20 Hex Bolt M12*35 Flat Washer M12*2*30 Hex Bolt M6*16 Hex Nuts Split Lock Washer...
- Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.3018-S), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Assemble the Bull Bar and the Front Bumper Body with the Bracket. Use the Hex Bolt (M6*16), Flat Washer (M6*1.5*20) to install them. The Bracket is in the middle. Step 2: Remove the original front bumper.
- Page 4 Step 3: Install the bumper on the vehicle.(JL & JK)
- Page 6 Step 4: Tighten the bumper.(JL & JK are the same installation method) (1)Install the Split Lock Washer (D12), Flat Washer (M12*2*30), Hex Nuts (M12) on the red circle bolt holes. (2)Install the Hex Nuts (M12*35), Split Lock Washer (D12), Flat Washer (M12*2*30), Hex Nuts (M12) on the yellow circle bolt holes.
- Page 7 Step 5: Repeat above steps for another side. Step 6: Install the D-rings on the bumper.(JL & JK)
- Page 8 Step 7: Installation completed.
- Page 9 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
