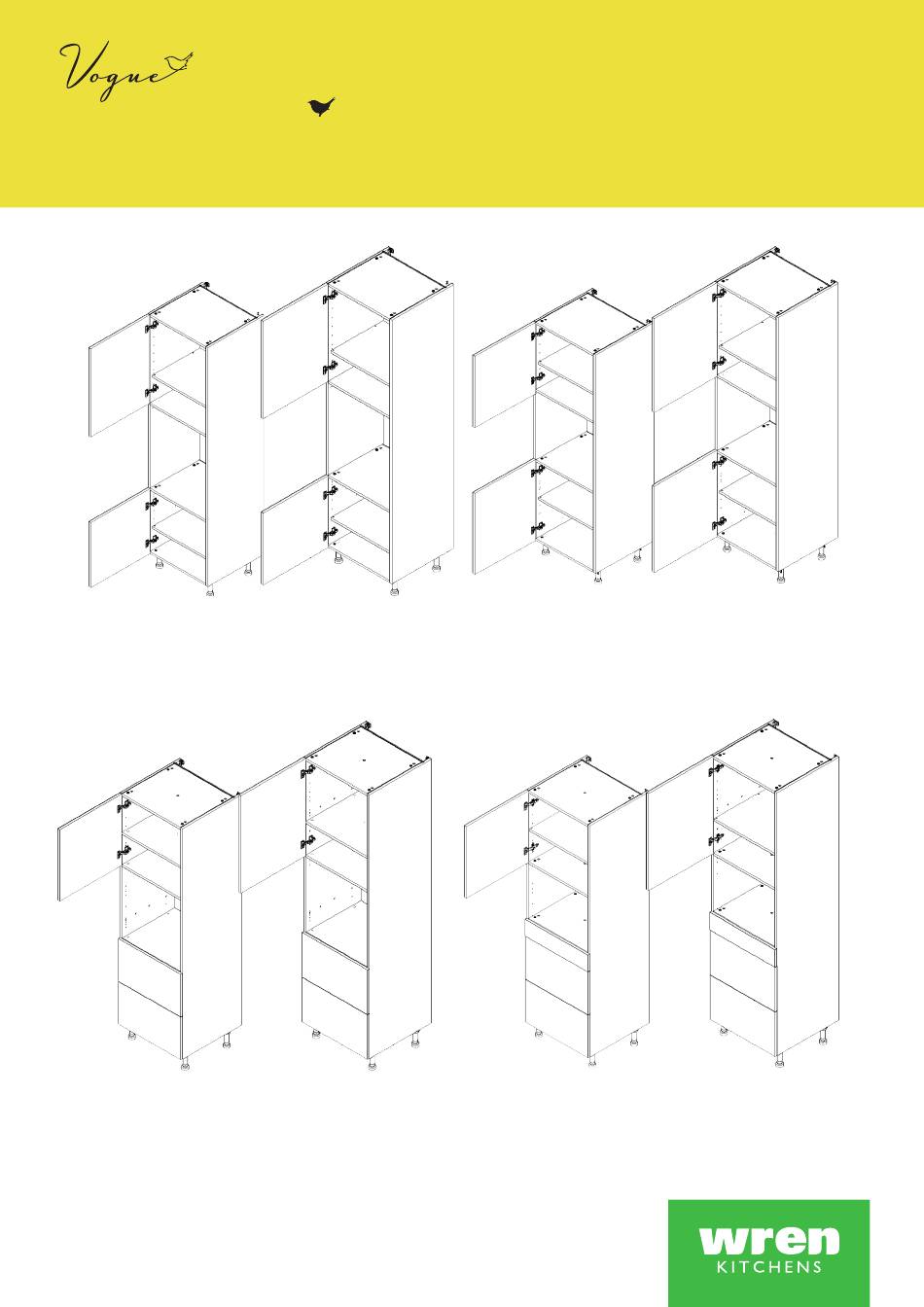

TOWER UNIT
600 Appliance Door & Drawer Assembly Guide
2070
900/600+290 Appliance
2 Door
2070
600/450+140 Appliance
1 Door +2 Drawer
For Internal Use: FI.WR.INS.042_WK00142_TOWER_600_DrDrwAppRange.Rev8
A
2250 Tall
C
2250 Tall
B
2070
2250 Tall
600/450+140 Appliance
2 Door
D
2070
2250 Tall
450 Appliance
1 Door +3 Drawer
Advertisement
Related Manuals for Wren Kitchens Vogue TOWER UNIT 2070
Summary of Contents for Wren Kitchens Vogue TOWER UNIT 2070
- Page 1 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide 2070 2250 Tall 2070 2250 Tall 900/600+290 Appliance 600/450+140 Appliance 2 Door 2 Door 2070 2250 Tall 2070 2250 Tall 600/450+140 Appliance 450 Appliance 1 Door +2 Drawer 1 Door +3 Drawer For Internal Use: FI.WR.INS.042_WK00142_TOWER_600_DrDrwAppRange.Rev8...
- Page 2 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Standard Drawer (Packed Separately) Fitting Pack Contents METAL BACK PANEL (J) x16 (Q) x4 (N) x1 Drawer Runner...
- Page 3 Step 1. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided. Seat the edge of drawer base tight Drawer into corner of casing, as shown. base The decorative face of drawer base to be positioned as shown.
- Page 4 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide Step 1. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided. Drawer base Seat the edge of drawer base tight Metal white decorative back face up into corner of casing, as shown.
- Page 5 BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Fixed Shelf C Panel E Loose Shelf Legs Frontals x2 Back Panel x2 End Panel x2 Base Panel x2 Rail (where applicable) (Packed separately)
- Page 6 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide Step 1. To attach drawer runner screw into end panels (B) using 2 x 16mm screws (J) per drawer rail, into pilot holes provided, 3rd hole from front, as shown. Drawer runner bracket screw position 450 Appliance 1Door+3Drawer 2070 &...
- Page 7 Step 1. Seat (G) Seat dowel (F) into holes in cam dowel into hole as both end panels (B) as shown. shown. Step 2. Seat cam dowel (G) into holes in both end panels (B) as shown. Step 3. Attach Panels (C) & (E) to panels (B), using cam dowel (G) (in blue) and also using dowels FOR PANEL(C) POSITIONS (F) (in orange) in positions as shown on.
- Page 8 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide HINGE & FIXED SHELF (B) POSITIONS 900/600+290 Appliance 600/450+140 Appliance 600/450+140 Appliance 450 Appliance 2 Door 2 Door 1 Door+2 Drawer 1Door+3 Drawer 2070 2070 2070 2070 A B C D A B C D 1826mm 1826mm...
- Page 9 HINGE & FIXED SHELF (B) POSITIONS 900/600+290 Appliance 600/450+140 Appliance 600/450+140 Appliance 450 Appliance 2 Door 2 Door 1 Door+2 Drawer 1Door+3 Drawer 2250 Tall 2250 Tall 2250 Tall 2250 Tall A B C D A B C D 2006mm 2006mm A B C D A B C D...
- Page 10 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide Step 5. Cut back panel (A) to suit appliance option, to leaving the centre appliance aperture open. Step 6. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush &...
- Page 11 Step 9. Front Position legs as shown. Ensure legs are rotated to also provide support to the end panels (B). Step 10. Secure each of the legs into place with 4 x 15mm screws (L) per leg. Front Leg position diagram Step 11.
- Page 12 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall construction are used. Screw into any side units using the 30mm screws (K) provided to secure to unit.
- Page 13 See Customer Specific Kitchen Plan For Tower Frontals Step 12. Insert hinge in top & bottom holes as shown below. Step 13. Secure hinges by tightening 2 x screws with hinge dowels attached. These are already positioned within the hinges. Step 14.
- Page 14 TOWER UNIT 600 Appliance Door & Drawer Assembly Guide Page 13...
- Page 15 For Internal Use: FI.WR.INS.042_WK00142_TOWER_600_DrDrwAppRange.Rev8 Page 14...
