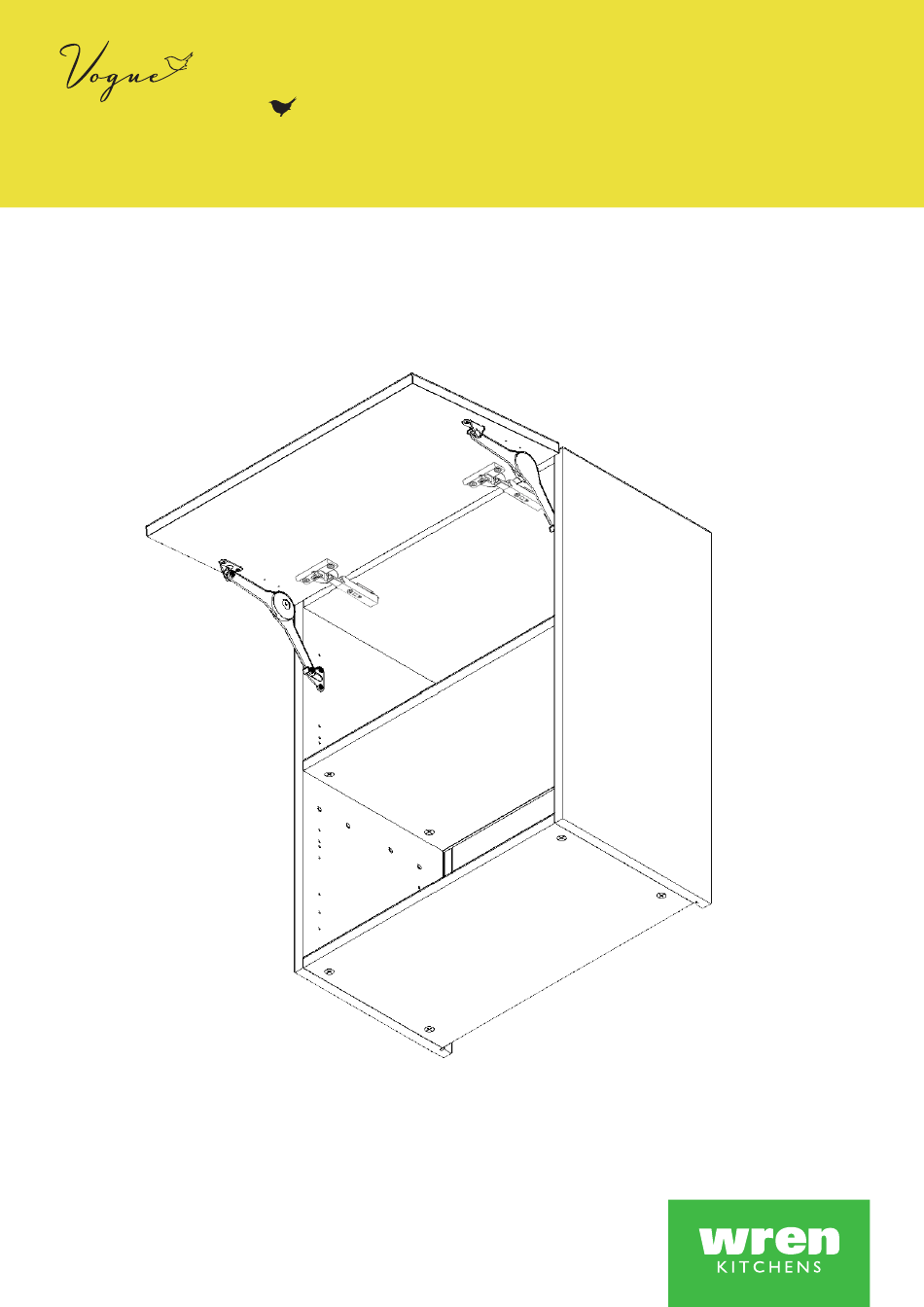

WALL UNIT
600 Microwave Assembly Guide
For Internal Use: FI.WR.INS.056.WKIN00123_WALL720_600MW.Rev5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vogue WALL UNIT 600 Microwave and is the answer not in the manual?

Questions and answers

Related Manuals for Wren Kitchens Vogue WALL UNIT 600 Microwave

Summary of Contents for Wren Kitchens Vogue WALL UNIT 600 Microwave

  • Page 1 WALL UNIT 600 Microwave Assembly Guide For Internal Use: FI.WR.INS.056.WKIN00123_WALL720_600MW.Rev5...
  • Page 2 WALL UNIT 600 Microwave Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Frontal Panel A Panel C Panel B (packed separately) x1 x1 Back Panel x2 End Panel x3 Base Panel Hanging Bracket Hanging Bracket Plate...
  • Page 3 Step 1. Seat dowel (F) into holes in end panel (B) as shown. Seat (G) cam dowel into hole as Step 2. shown. Seat cam dowel (G) into holes in end panel (B) as shown. Step 3. Attach panels x 3 (C) to panel (B),using cam dowels blue), and also using dowels (F)
  • Page 4 WALL UNIT 600 Microwave Assembly Guide Step 6. Seat dowel (F) into holes in Step 7. end panel (B) as shown. Seat cam dowel (G) into holes in end panel (B) as shown. Seat (G) cam dowel into hole as shown.
  • Page 5 Step 10. Ensure unit is square. Secure back panel (A) with 4 x 30mm Screws (K) as shown. Ensure you screw into centres of panel (C) 9mm from the edge Step 11. Slide the back panel clips (T) into the groove of both panels (B) &...
  • Page 6 WALL UNIT 600 Microwave Assembly Guide Care to be taken. Hanging procedure is necessary for a safe installation. Step 15. Hanging brackets steps a,b & c to be carried out on both sides as shown Detail A Detail A Detail A Step a Step b Step c...
  • Page 7 Step 19. Using points a, b & c adjust the unit to suit. Hanging Bracket Step a. viewed through Rotate the screw clockwise Back Panel to move the unit up. Anti-clockwise for down. Step b. Adjust the depth using centre screw. Step c.
  • Page 8 WALL UNIT 600 Microwave Assembly Guide Step 24. Clip hinges into hinge mounting plates on the unit. Step 25. Clip lift hinge mechanisms into each bracket. Step 26. Use a 4mm allen key to adjust the strength of the lift hinge for the door weight.
