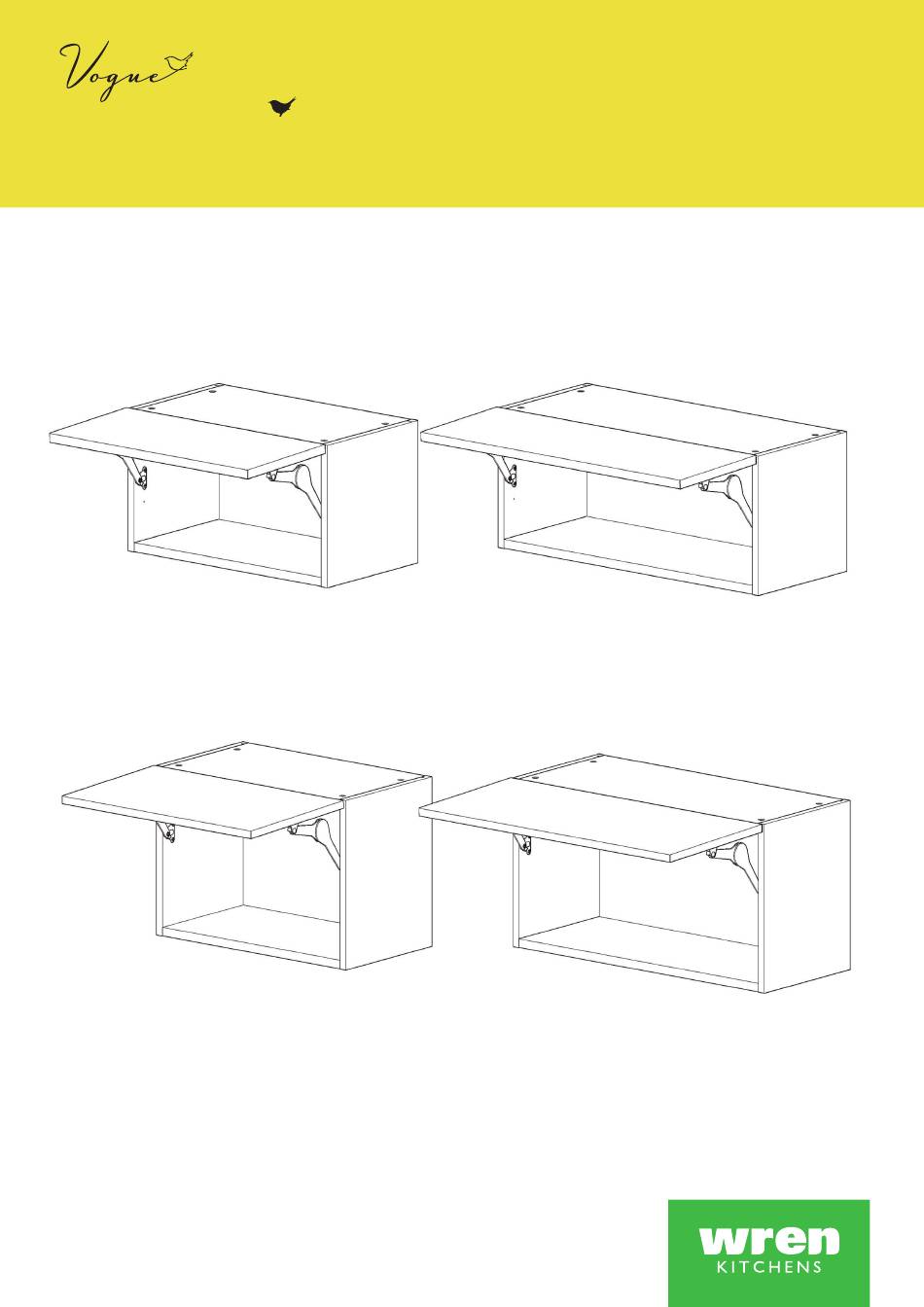

- Page 1 WALL UNIT 600 - 800 Lift Assembly Guide 288 x 600 288 x 800 360 x 600 360 x 800 For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600_800_Lift_Rev7...
-
Page 2: Before You Start
WALL UNIT 600 - 800 Lift Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel C Frontal Panel B (packed separately) x1 Back Panel x2 End Panel x2 Base Panel Hanging Bracket... - Page 3 Step 1. Step 2. Seat dowel (F) Seat cam dowel (G) into into holes in holes in both end panels (B) Seat (G) cam dowel both end panels (B) as shown. into hole as as shown. shown. Step 3. Attach panels x2 (C) to panel (B), using cam dowels (G) (in blue) and also using...
- Page 4 WALL UNIT 600 - 800 Lift Assembly Guide Step 6. Step 7. Seat dowel (F) Seat cam dowel (G) into into holes in holes in both end panels (B) both end panels (B) as shown. Seat (G) as shown. Cam Dowel into hole as shown.
- Page 5 Step 10. Ensure unit is square. Step 11. Slide the back panel clips (T) into the groove of both panels (B) & (C). The back panel clips (T) should be evenly spaced asshownandpositionedtoallowthe hangingbracketandcornergussetstobefitted. Onceinplace, tighten screw. The side back panel Clips should be disregarded for the 288 units.
- Page 6 WALL UNIT 600 - 800 Lift Assembly Guide Step 12. Hanging Brackets steps a,b & c to be carried out on both sides as shown Detail A Detail A Detail A Step a Step b Step c Insert Hanging Rotate locking Secure with provided Bracket into pre-drilled holes lever 180 degrees...
- Page 7 Step 15. Measureandattachhingemountingplateontofixedshelf(C) as shown, using screws which are already positioned within the hinge plates. MEASUREMENTS Front 92mm 92mm FROM INSIDE OF 35mm 35mm UNIT Hinge Plates 18mm 18mm 50mm 50mm TOP FIXED SHELF Step 16. Shaker Shaker INSIDE FACE Measure and attach lift hinge 5 Piece 5 Piece...
- Page 8 WALL UNIT 600 - 800 Lift Assembly Guide Care to be taken. Hanging procedure is necessary for a safe installation. Screws for attaching to walls are not provided as these vary depending on materials, thicknessandconstruction.Ensureappropriatefixingsforwallconstructionareused. Step 20. Measure appropriately and attach the 2 x hanging bracket Hanging Bracket plates onto the wall screwing...
- Page 9 Step 24. Clip hinges into hinge mounting plates on the unit. Step 25. Clip lift hinge mechanisms into each bracket. Step 26. Use a 4mm allen key to adjust the strength of the lift hinge for the door weight. The left and right hinges MUST be adjusted to the SAME STRENGTH.
