Toe kick

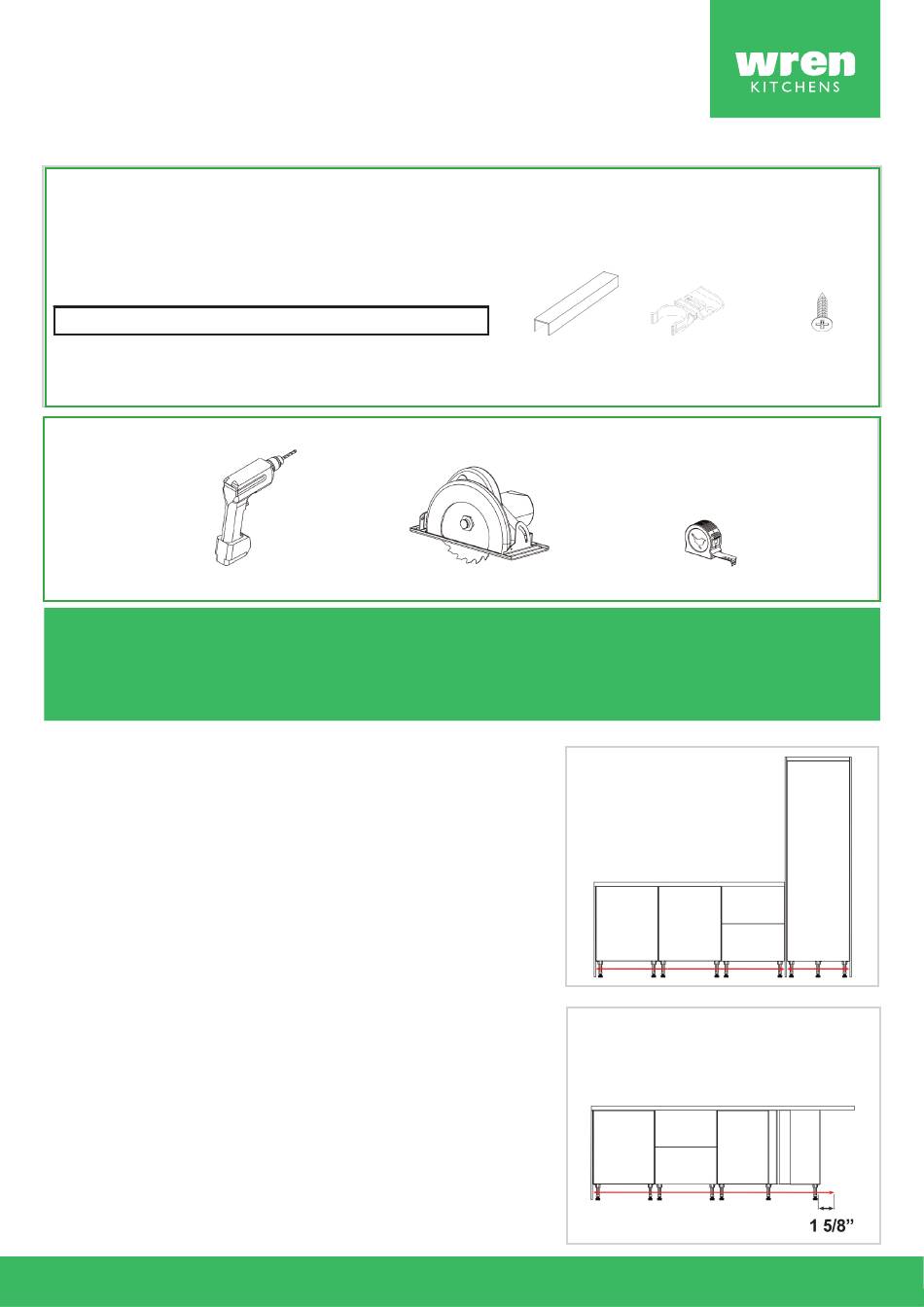

Toe kick, Fitting Guide
Parts Required
Tools Required
Drill
Remember to take care when unpacking. Please keep your workspace clean, clear
and tidy when working. This will help keep all items safe from any damage. Any
waste cardboard or plastic should be flattened down and placed in the trash can.
Finding the toe kick length measurements
Cabinet runs with a decor panel at each end:
Measure the length from the inside of the
decor panel at one end of the run, to the inside
of the decor panel at the other end of the run.
Cabinet runs with a decor panel at one end
and a corner cabinet at the other:
Measure the length from the inside of the
decor panel at one end of the run, to 1 5/8"
beyond the outer edge of the last leg at the
other end of the run.
Toe kick
Circular Saw
Toe kick
Toe kick
Seal
Clips
Tape Measure
5/8"
screws
Page 1
Advertisement
Related Manuals for Wren Kitchens Toe Kick
Summary of Contents for Wren Kitchens Toe Kick
- Page 1 This will help keep all items safe from any damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. Finding the toe kick length measurements Cabinet runs with a decor panel at each end:...
- Page 2 Measure from the floor to the bottom of the cabinet at 3 points in the cabinet run (end, middle, and end). Finding the rest of the toe kick measurements Repeat the steps above for all the other runs of cabinets in your kitchen as planned.
- Page 3 Cutting the toe kick Cut the lengths of toe kick and toe kick seal to the measurements obtained. Marking the toe kick clip positions Place the lengths of toe kick front side down at the legs of the cabinets they are cut for.
- Page 4 Slide the toe kick clips into the slots on the backs of the toe kick clip brackets. Clipping the toe kick to the legs Push the toe kick clips onto the legs to fix the toe kick into position. Ensure the toe kick seal is located between the toe kick and the floor so that it creates a barrier between the floor and the toe kick.
- Page 5 This will help keep all items safe from any damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. Finding the toe kick length measurements Measure from cabinet end to cabinet end on each side of the island.
- Page 6 45 degree angle from the top face of the toe kick , and that the inner face of the miter cut is the length of the cabinet end to cabinet end.
- Page 7 Attaching the toe kick connector to the toe kick Use 2x 5/8” screws to attach the toe kick connector to the back of the toe kick at both ends, as the diagram shows. This will create a 2 L-shape pieces of toe kick that covers two sides of the island.
- Page 8 Tape Measure Fit the toe kick following the standard process. Finding the position for the toe kick vent Lay the toe kick front side down near the legs of the cabinets. Mark the center position of the cabinet requiring ventilation onto the toe kick.
- Page 9 Clipping the toe kick to the legs Push the toe kick clips onto the legs to fix the toe kick into position. Ensure the toe kick seal is at the bottom.
- Page 10 Open the dishwasher door slightly until the rear of the door touches the toe kick. Mark a line along the front of the toe kick; that is the full length of the dishwasher door. Ensure that the line is level with the front. (Be careful not to mark the dishwasher door).
- Page 11 Connecting the lines 9 0 ° At the line drawn onto the toe kick, draw two lines up connecting the ends the lines must be at a 90 degree angle. Marking along the toe kick 5 m m Offset and redraw the lines you have drawn 3/16”...
- Page 12 (Be careful not to damage the toe kick. Clipping the toe kick to the legs Push the toe kick clips onto the legs to fix the toe kick into position. Ensure the toe kick seal is located between the toe kick and the floor so that it creates a barrier between the floor and the toe kick.
