Wren Vogue WALL 288x600 Fittings Manual

Wall unit (door, solid top)

Advertisement

Quick Links

WALL UNIT
600-800 Wall (Door, Solid Top) - Fitting Guide
288 x 600
360 x 600
For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide
288 x 800
360 x 800

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vogue WALL 288x600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wren Vogue WALL 288x600

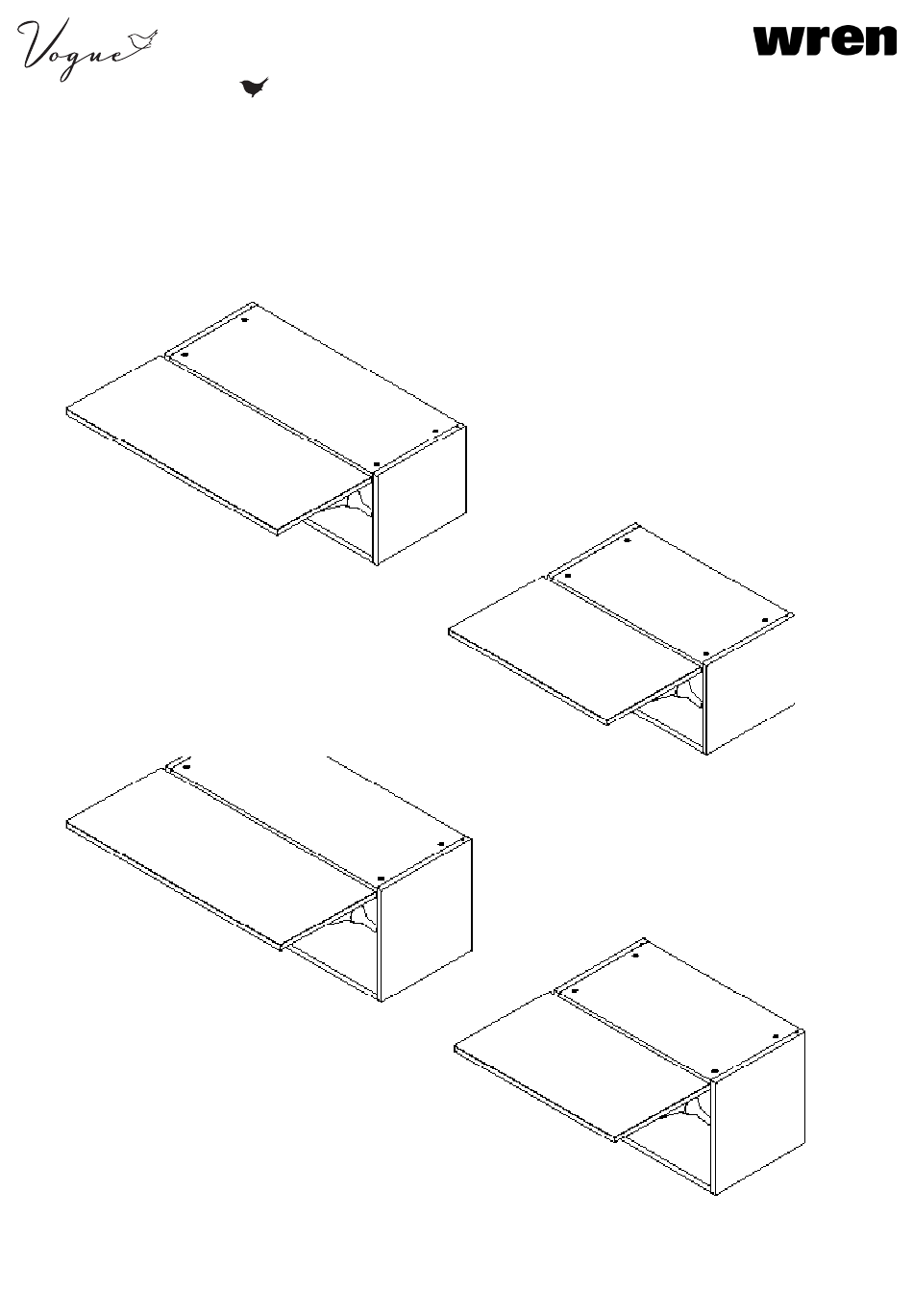

  • Page 1 WALL UNIT 600-800 Wall (Door, Solid Top) - Fitting Guide 288 x 600 288 x 800 360 x 600 360 x 800 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 2: Before You Start

    BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 3 Panel B Panel C Frontal Panel A x1 Back Panel 2x Fixed Shelf x1 Front Panel x2 End Panel (Packed Separetely) Page 3 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 4 (F) x8 (L) x8 (S) x4 (K) x4 (G) x8 (H) x8 Wooden 15mm 20mm 30mm Cam Lock Cam Dowel Dowel Screw Screw Screw (Expanding) (N) x1 (M) x8 (T) x10 Hanging Bracket Cover Cap Door Buffer Back Panel Cover Cap Support Clip Hanging Bracket Plate Corner Gusset...
  • Page 5 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 6 Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 7 Step 3. Attach panels (C) to panel (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Fig 1. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening. Fig 1.
  • Page 8 Step 5. Attach end panel (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Page 8 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 9 Step 6. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: 600-800 Wall (Door, Solid Top) - Fitting Guide...
  • Page 10 Step 7. Ensure the unit is square. Slide back panel clips (T) into the groove of both panels (A) & (C). The back panel clips (T) should be evenly spaced as shown and positioned to allow the hanging bracket and corner gussets to be fitted.
  • Page 11 Step 8. Hanging brackets steps A, B & C to be carried out on both sides as shown. A. Insert hanging bracket into pre-drilled holes. B. Rotate locking lever 180 degrees. C. Secure with provided 2 x 20mm screws (S) per bracket. Step 9.
  • Page 12 Step 11. Measure and attach hinge mounting plates onto fixed shelf (C) as shown, using screws already positioned within hinge plates. FRONT From Top 18mm 50mm SHAKER 5 PIECE SHAKER 5 PIECE FRONTAL ONLY FRONTAL ONLY INSIDE FACE From Edge From Edge 92mm 35mm...
  • Page 13 Step 13. Measure and attach lift hinge brackets to the frontal using 2x screws per bracket which are already included within lift hinge pack. Lift hinge bracket From Top INSIDE FACE 110mm 142mm From Edge From Edge 30mm 30mm Step 14. Insert hinges into frontal hinge holes provided, secure hinges with the 2 x screws and hinge dowels already located in the hinges.
  • Page 14 Care to be taken. Hanging procedure is necessary for a safe installation. Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall construction are used. Step 15. Measure appropriately and attach the 2 x hanging bracket plates onto the wall screwing through the provided holes into your wall.
  • Page 15 Step 17. Using points a, b & c adjust the unit to suit. Point a. Rotate the top screw clockwise to move the unit up. Anti-clockwise for down. Point b. Adjust the depth using centre screw. Point c. Turn the bottom screw until it touches the plate to lock in position. Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction.
  • Page 16 Step 20. Clip hinges into hinge mounting plates on the unit. Step 21. Clip lift hinge mechanisms into each bracket. Use a 4mm allen key to adjust the strength of the lift hinge for the door weight Step 22. Adjust hinges to suit, using the highlighted screw(s) shown. Step 23.
