Wren Vogue BASE UNIT 600 Assembly Manual
Hob, 3 drw & 3 drw inc dummy
Hide thumbs
Also See for Vogue BASE UNIT 600:
- Fittings manual (20 pages) ,
- Assembly manual (20 pages) ,
- Fittings manual (16 pages)
Related Manuals for Wren Vogue BASE UNIT 600
Summary of Contents for Wren Vogue BASE UNIT 600

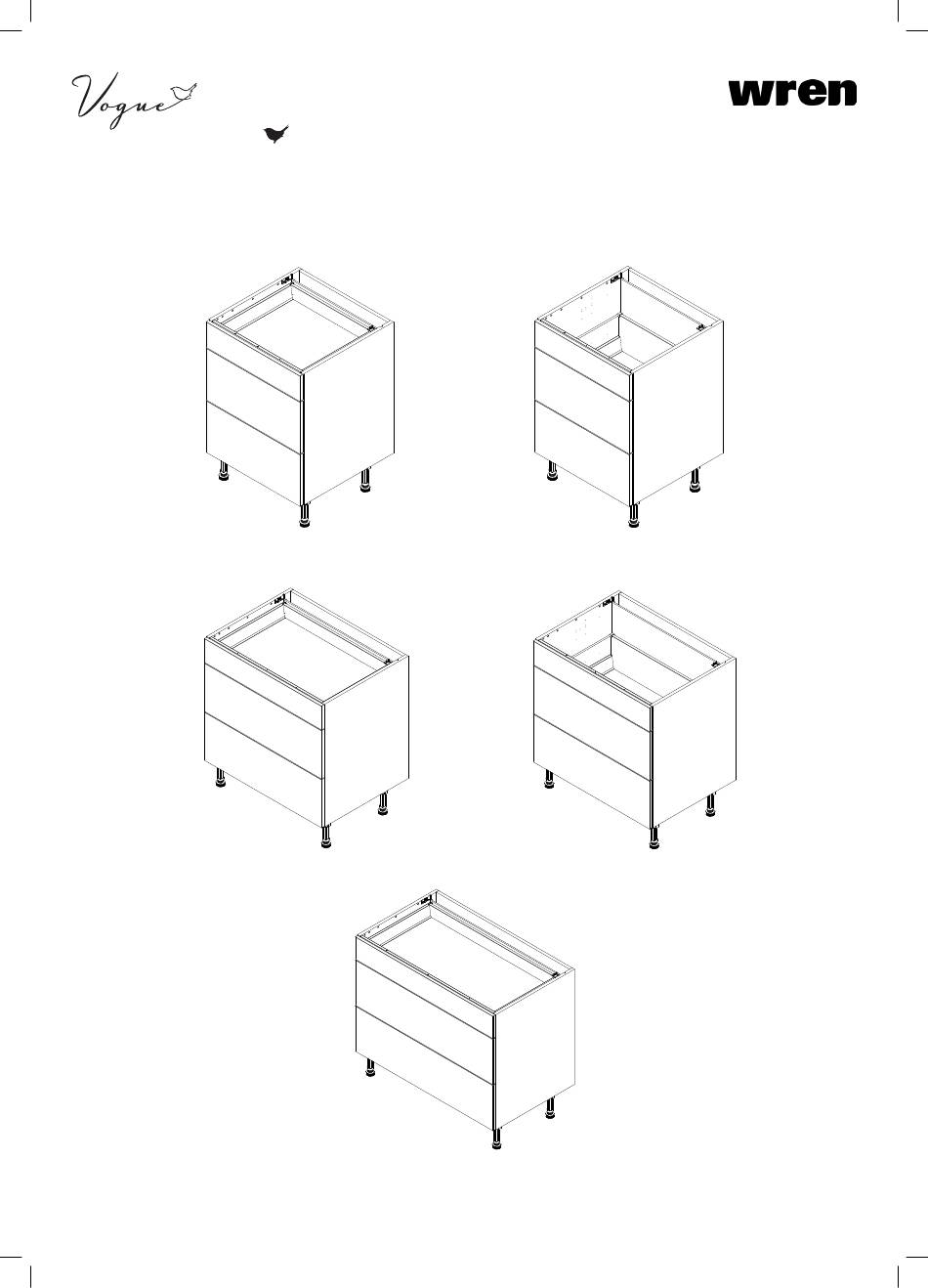

- Page 1 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide 600, 3 Drawer inc. Dummy 600, 3 Drawer Drawer 800, 3 Drawer 800, 3 Drawer inc. Dummy Drawer 1000, 3 Drawer For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 2 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 3 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Packs Supplied are Customer Specific Standard Drawer (Packed Separately) Drawer Base Frontal Back Panel Drawer Runner Drawer Runner Drawer Side Drawer Side x1 Drawer Base Panel x1 Front Panel x1 Metal Back Panel x1 Right Hand x1 Left Hand...
- Page 4 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Decorative STANDARD DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm screws (J) in holes provided.
- Page 5 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Decorative DEEP DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided.
- Page 6 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide DRAWER ADJUSTMENT Left and Right Adjustment Turn screw shown to adjust drawer frontal left & right. Drawer adjustments to be done on both side. Up & Down Adjustment Turn screw shown to adjust drawer frontal up &...
- Page 7 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Panel A Panel B Panel C Panel D Rail x2 End Panel x1 Back Panel x1 Fixed Shelf x2 Rail x1 Metal Rail (M) x4 (F) x8 (L) x28 (K) x7 (G) x6 (H) x6...
- Page 8 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 1. To attach drawer runner, screw into end panels (A) using 2 x 16mm screws (J) (provided with drawer box pack) per drawer rail, into holes provided, as shown. Repeat Step 1 for the other side of end panel (A).
- Page 9 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 3. Seat dowels (F) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 9 For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 10 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 4. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 10 For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 11 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 5. Attach panels (C), (D) and metal rail to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Secure metal rail with 2 x 15mm screws (L) into panels (A). All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 12 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 6. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 12 For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 13 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 7. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 13 For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 14 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 8. Ensure the unit is square. Secure back panel (B) with 3 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge).
- Page 15 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Step 9. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
- Page 16 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops.
- Page 17 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide Dummy Drawer Frontal Fixing (Where Applicable) Drawers supplied in accordance to Specific Customer Kitchen Plan. Step 14. Secure dummy fixing clips (Parts B) onto the inside face at the bottom of filler (F), 64 mm from the bottom face and 26mm from the edges to the screw hole of (Parts B), spaced evenly either side as shown, using 1 x 21mm screw (Q) per dummy fixing clip (Part B).
- Page 18 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
- Page 19 BASE UNIT Hob, 3 Drw & 3 Drw inc Dummy Assembly Guide For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_HOB_2-3Drw_Rev7...
