BASE UNIT

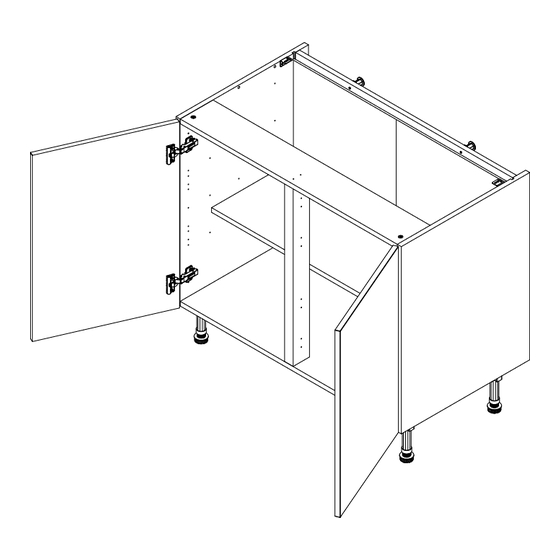

1000, 2 Door Assembly Guide
1000 Base Unit
For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vogue BASE UNIT 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wren Vogue BASE UNIT 1000

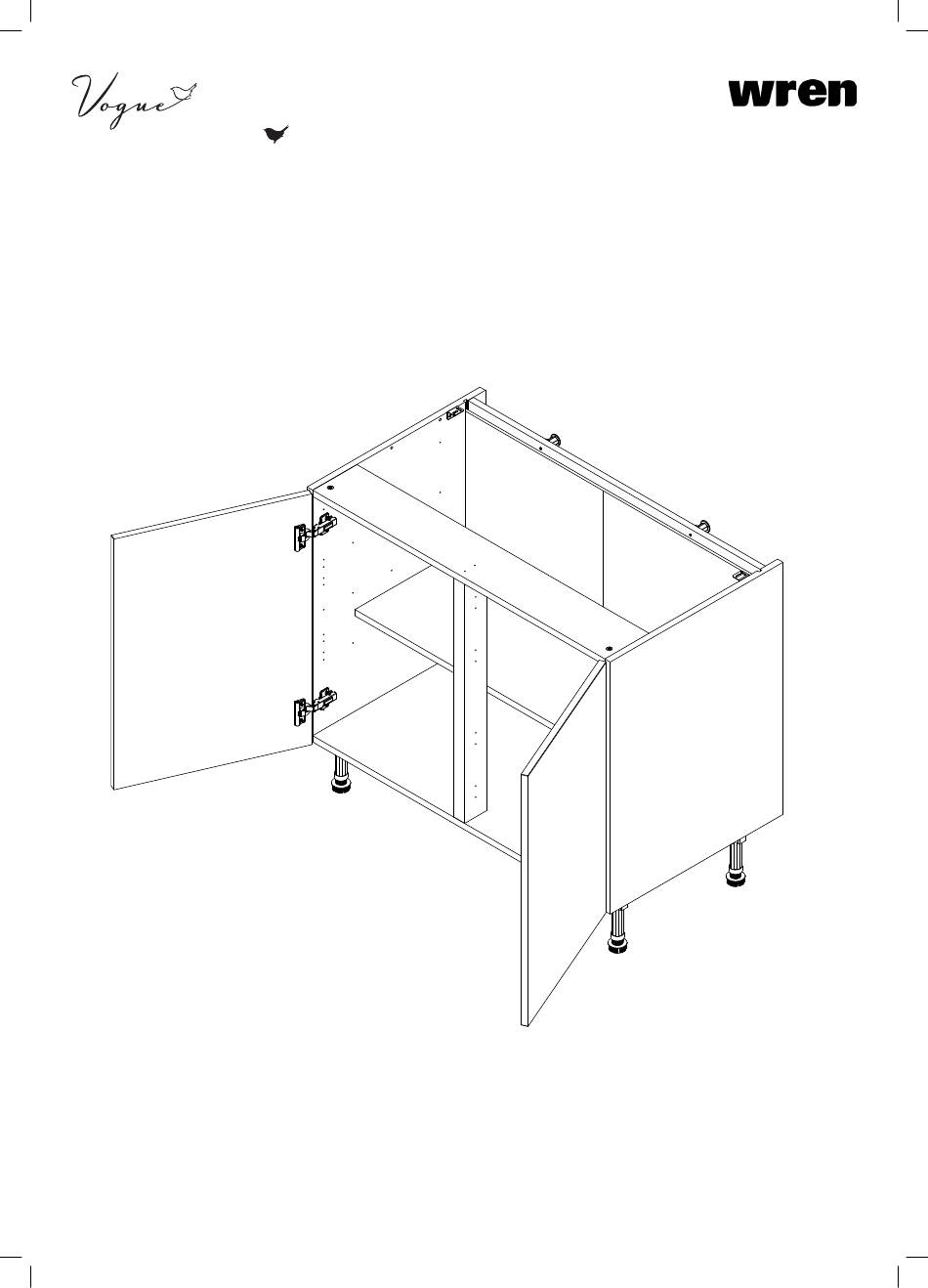

  • Page 1 BASE UNIT 1000, 2 Door Assembly Guide 1000 Base Unit For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 2 BASE UNIT 1000, 2 Door Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 3 BASE UNIT 1000, 2 Door Assembly Guide Panel E Panel A Panel B Panel C Panel D Shelf Frontal x2 End Panel x1 Muntin x1 Back Panel x1 Fixed Shelf x2 Rail x1 Loose Shelf x2 Front Panel (Folded) (Packed Separately) Page 3 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 4 BASE UNIT 1000, 2 Door Assembly Guide (G) x8 (F) x12 (L) x32 (K) x8 (P) x4 (H) x8 Wooden 15mm 30mm Cam Dowel Cam Lock 45mm (Expanding) Dowel Screw Screw Screw (M) x4 L Bracket Space Plug (Z) x5 (N) x2 Cover Cap Shelf Peg Metal...
  • Page 5 BASE UNIT 1000, 2 Door Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 6 BASE UNIT 1000, 2 Door Assembly Guide Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 7 BASE UNIT 1000, 2 Door Assembly Guide Step 3. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
  • Page 8 BASE UNIT 1000, 2 Door Assembly Guide Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 8 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 9 BASE UNIT 1000, 2 Door Assembly Guide Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 10 BASE UNIT 1000, 2 Door Assembly Guide Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 10 For Internal Use: FI.WR.INS.022_WKIN00104_BASE_1000_2Door_Rev6...
  • Page 11 BASE UNIT 1000, 2 Door Assembly Guide Step 7. To secure muntin post (E) in place, use pre-drilled pilot holes to align muntin as shown. Secure muntin (E) to base (C) & rail (D) using 4 x 45mm screws (P) as shown. Please refer to customer specific kitchen plan for left or right hand orientation.
  • Page 12 BASE UNIT 1000, 2 Door Assembly Guide Step 8. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
  • Page 13 BASE UNIT 1000, 2 Door Assembly Guide Step 9. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm INSIDE FACE...
