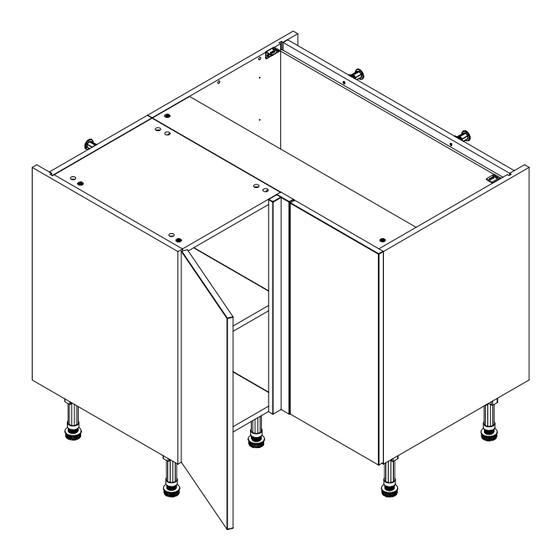

- Page 1 BASE UNIT 972, L Corner Assembly Guide 972 L Corner Base Unit LH UNIT SHOWN FOR ILLUSTRATIVE PURPOSES ONLY For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 2 BASE UNIT 972, L Corner Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 3 BASE UNIT 972, L Corner Assembly Guide Panel B Panel C Panel D Panel S Panel F Panel A x3 End Panel x1 Back Panel x1 Fixed Shelf x2 Rail x1 Back Panel x2 Fixed Shelf (Large) (Small) Frontal Corner Post Loose Shelf x2 Front Panel x1 Corner Post...
- Page 4 BASE UNIT 972, L Corner Assembly Guide (G) x12 (F) x16 (L) x76 (K) x8 (P) x8 (H) x12 Wooden 15mm 30mm Cam Dowel Cam Lock 45mm (Expanding) Dowel Screw Screw Screw (M) x4 L Bracket SML L Bracket (U) x10 (Z) x6 (N) x2 Cover Cap...
- Page 5 BASE UNIT 972, L Corner Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 6 BASE UNIT 972, L Corner Assembly Guide Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 7 BASE UNIT 972, L Corner Assembly Guide Step 3. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 8 BASE UNIT 972, L Corner Assembly Guide Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 8 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 9 BASE UNIT 972, L Corner Assembly Guide Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 10 BASE UNIT 972, L Corner Assembly Guide Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 10 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 11 BASE UNIT 972, L Corner Assembly Guide Step 7. Seat dowels (F) into holes in end panel (A) as shown. Page 11 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 12 BASE UNIT 972, L Corner Assembly Guide Step 8. Seat expanding cam dowels (G) into holes in end panel (A) as shown. Page 12 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 13 BASE UNIT 972, L Corner Assembly Guide Step 9. Attach panels (F) to the end panel (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 14 BASE UNIT 972, L Corner Assembly Guide Step 10. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 14 For Internal Use: FI.WR.INS.024_WKIN00106_BASE_972_LCnr_Rev7...
- Page 15 BASE UNIT 972, L Corner Assembly Guide Step 11. Secure back panel (S) with 8 x 45mm screws (P) at the top and bottom, in the holes provided as shown. Ensure back panel is flush with the front of fixed shelves at both ends.
- Page 16 BASE UNIT 972, L Corner Assembly Guide Step 13. Secure both carcases together using fixing plates (U) with 4 x 15mm (L) per plate in locations (1), (2) & (3) as shown. Be careful not to interfere with the leg positions. Carcase 2 View from the inside of unit Carcase 1...
- Page 17 BASE UNIT 972, L Corner Assembly Guide Step 14. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
- Page 18 BASE UNIT 972, L Corner Assembly Guide Step 15. Attach hinge plates onto end panels (A) as shown, using screws which are already positioned within the hinge plates. Hinge side or sides to be mounted in acordance to customer specific kitchen plan.
- Page 19 BASE UNIT 972, L Corner Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 16.
- Page 20 BASE UNIT 972, L Corner Assembly Guide FRONTAL AND HINGE ATTACHMENT Step 1. Align corner post to frontal. Equally space 2 fixing plates (U) to the back of frontal and corner post. Ensure a 2mm gap is maintained between frontal and corner post once fixed together.
