BASE UNIT

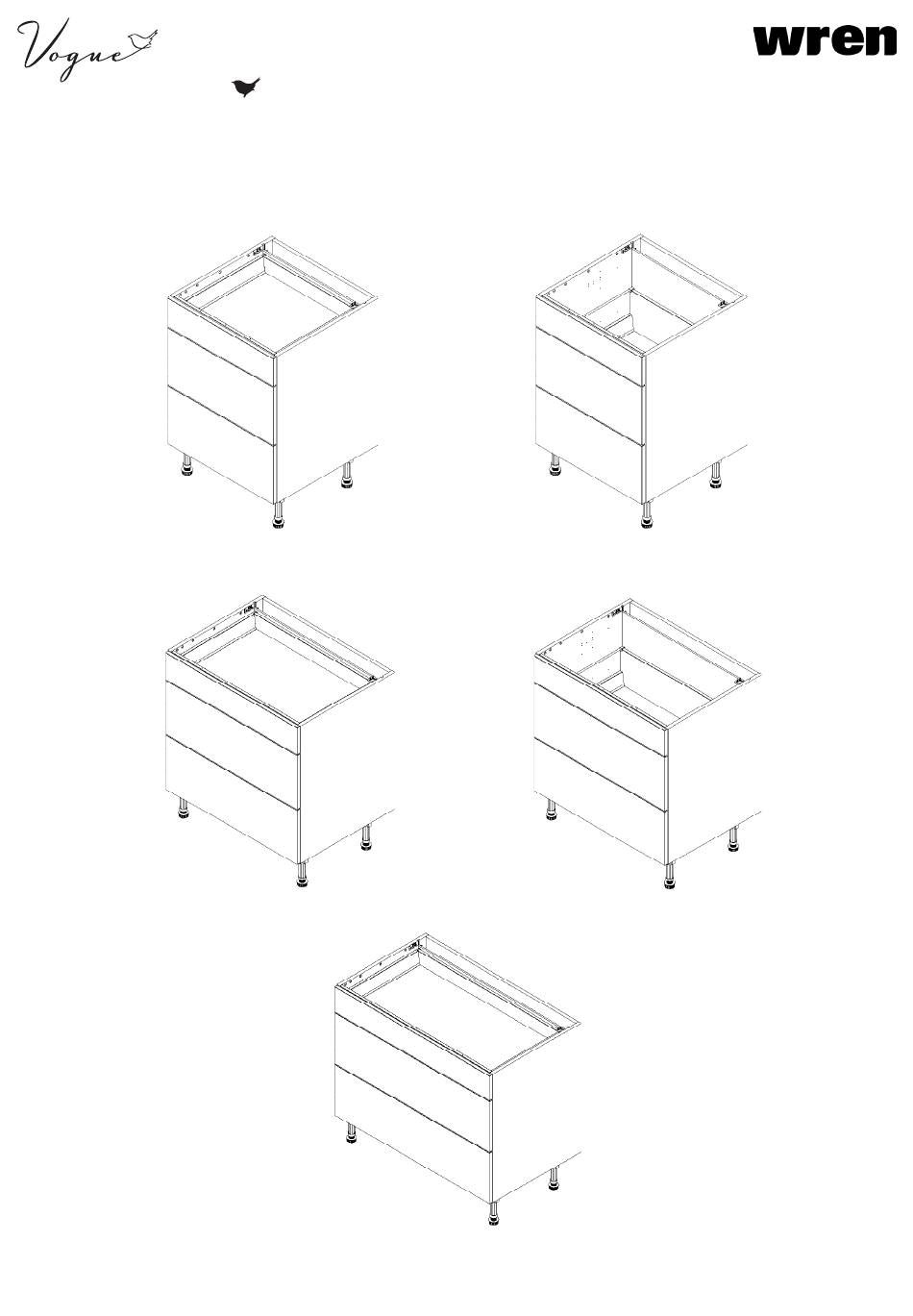

600 - 1000 Hob Base (Drawer, Open Top, 4-5 Legs) - Fitting Guide
For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide
600, 3 Drawer
800, 3 Drawer
1000, 3 Drawer
600, 3 Drawer inc. Dummy
Drawer
800, 3 Drawer inc. Dummy
Drawer
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Vogue BASE UNIT 600
Summary of Contents for Wren Vogue BASE UNIT 600
- Page 1 BASE UNIT 600 - 1000 Hob Base (Drawer, Open Top, 4-5 Legs) - Fitting Guide 600, 3 Drawer 600, 3 Drawer inc. Dummy Drawer 800, 3 Drawer 800, 3 Drawer inc. Dummy Drawer 1000, 3 Drawer For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
-
Page 2: Before You Start
BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide... - Page 3 Packs Supplied are Customer Specific Standard Drawer (Packed Separately) Drawer Base Frontal Back Panel Drawer Side Drawer Runner Drawer Runner Drawer Side x1 Drawer Base Panel x1 Front Panel x1 Metal Back Panel x1 Right Hand x1 Left Hand x1 Right Hand x1 Left Hand (Packed Separately) (Small)
-
Page 4: Standard Drawer
Decorative STANDARD DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm screws (J) in holes provided. Repeat on both sides of the drawer. - Page 5 Decorative DEEP DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided.
- Page 6 DRAWER ADJUSTMENT Left and Right Adjustment Turn screw shown to adjust drawer frontal left & right. Drawer adjustments to be done on both side. Up & Down Adjustment Turn screw shown to adjust drawer frontal up & down. Lock Position Tighten screw shown to lock in position.
- Page 7 Panel A Panel B Panel C Panel D Rail x2 End Panel x1 Back Panel x1 Fixed Shelf x2 Rail x1 Metal Rail (M) x4 (F) x8 (L) x28 (K) x7 (H) x6 (G) x6 Cover Cap Wooden 15mm 30mm Cam Dowel Cam Lock Dowel...
- Page 8 Step 1. To attach drawer runner, screw into end panels (A) using 2 x 16mm screws (J) (provided with drawer box pack) per drawer rail, into holes provided, as shown. Repeat Step 1 for the other side of end panel (A). Drawer runner bracket screw position 3 Drawer 2 Drawer inc Dummy Drawer...
- Page 9 Step 3. Seat dowels (F) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 9 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 10 Step 4. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 10 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 11 Step 5. Attach panels (C), (D) and metal rail to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Secure metal rail with 2 x 15mm screws (L) into panels (A). All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 12 Step 6. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 12 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 13 Step 7. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 13 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 14 Step 8. Ensure the unit is square. Secure back panel (B) with 3 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 14 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 15 Step 9. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before turning unit upright. Once in situ level accordingly.
- Page 16 Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 10.
- Page 17 Dummy Drawer Frontal Fixing (Where Applicable) Drawers supplied in accordance to Specific Customer Kitchen Plan. Step 14. Secure dummy fixing clips (Parts B) onto the inside face at the bottom of filler (F), 64 mm from the bottom face and 26mm from the edges to the screw hole of (Parts B), spaced evenly either side as shown, using 1 x 21mm screw (Q) per dummy fixing clip (Part B).
- Page 18 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 19 For Internal Use: 600 - 1000 Hob Base (3 Drawer, Solid Top, 4-5 Legs) - Fitting Guide...
