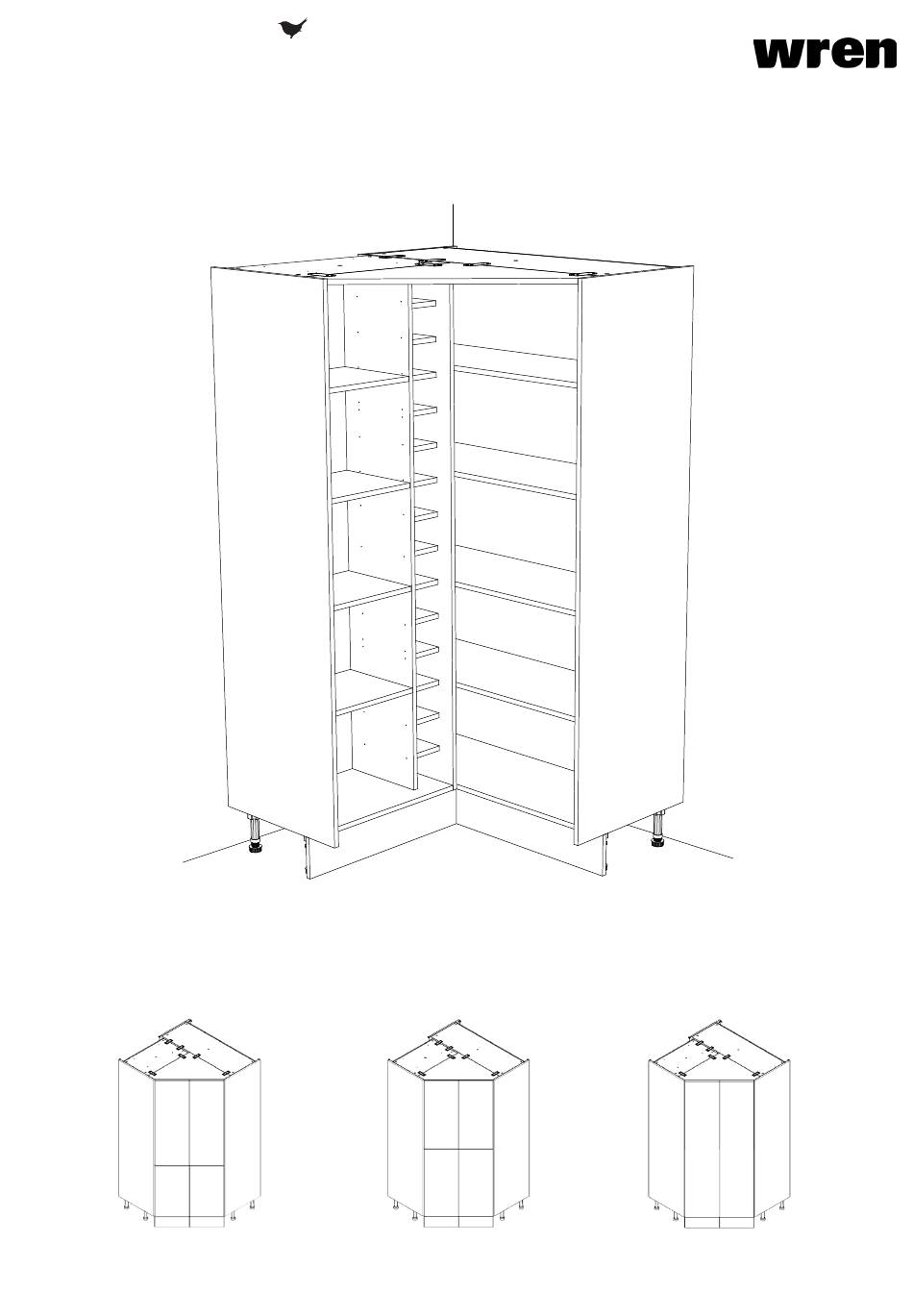

- Page 1 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide 2070 - 2250 50/50 Door 70/30 Door 1 Door For Internal Use: FI.WR.INS.097_WKIN00199_TOWER_45WineRack_AssemblyGuide_Rev11...
- Page 2 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED For Internal Use: FI.WR.INS.097_WKIN00199_TOWER_45WineRack_AssemblyGuide_Rev11...
- Page 3 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Unit (LH) Unit (RH) Left Hand Right Hand OPTION 70/30 OPTION 50/50 OPTION Panel D Frontals Unit Plinth x1 Top Panel 50/50 or 1Dr or 70/30 (Frontals and Plinths Packed Separately) For Internal Use: FI.WR.INS.097_WKIN00199_TOWER_45WineRack_AssemblyGuide_Rev11...
- Page 4 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide (K) x6 (L) x142 (ZZ) x 32 (M) x8 30mm 15mm Shelf Peg Cover Cap Screw Screw (Per Colour) L Bracket LGE (FF) x6 (N) x4 Fixing Plate (U) L Bracket Door Buffer...
- Page 5 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 1. Lay both units (LH) & (RH) flat as shown. Secure 5 x fixing plates (U) positioned onto the outside face of panel (B) of (RH) unit equally spaced using 2 x 15mm screws (L) as shown.
- Page 6 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 3. Secure leg base into place with 4 x 15mm screws (L) per leg as shown. Ensure legs are rotated to also provide support to the end panels. Front legs should have flat edge to the front.
- Page 7 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 5. Position LH unit and RH unit together as shown. Ensure units are flush & square. Step 6. Screw through fixing plates (U) into adjoining LH unit using 2 x 15mm screws (L) to secure both units together.
- Page 8 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 7. Secure (LH) and (RH) units together from inside the unit using 6 x L bracket SML (FF) as shown. Secure with 2 x 15mm screws (L) per bracket as shown. FF &...
- Page 9 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 8. Use 2 x 15mm screws (L) to secure each of the 4 x L brackets (LGE) to both units positioned as shown. Screws for fixing to walls are not provided as these vary depending on your wall material and construction.
- Page 10 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 10. When the combined unit is secured in position, attach top panel (D), using 4 x fixing plates (U) combined with 4 x 15mm screws (L) per plate, positioned as shown. Step 11.
- Page 11 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 13. Insert shelf peg (ZZ) into end panels. 4 x shelf pegs are required per loose shelf. Position loose shelf onto shelf pegs (ZZ) ensuring the spikes on the shelf pegs locate in the holes on the bottom of the loose shelf.
- Page 12 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 15. Attach hinge plates onto end panels (B) to suit as shown using the screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2070 - 70/30 2070 - 50/50 &...
- Page 13 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 15. Attach hinge plates onto end panels (B) to suit as shown using the screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2250 - 70/30 2250 - 50/50 HINGE POSITION...
- Page 14 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 15. Attach hinge plates onto end panels (B) to suit as shown using the screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2250 - 1 Door HINGE POSITION 2006mm...
- Page 15 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Hinge Attachment and Adjustment Doors supplied in accordance to customer specific kitchen plan Step 1. Insert hinges into frontal hinge holes provided, secure hinges with the 2 50/50 1 DOOR x screws and hinge dowels already...
- Page 16 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 4. Adjust hinges to suit, using the highlighted screws shown. Step 5. Fit cover caps to hinges and adjust soft-close to suit. The top and bottom hinges MUST be adjusted to the SAME STRENGTH. For Internal Use: FI.WR.INS.097_WKIN00199_TOWER_45WineRack_AssemblyGuide_Rev11...
