Controller and RF deck connection
Changed
D About the Connection route and IP connection between the controller and RF deck
When using additional controllers

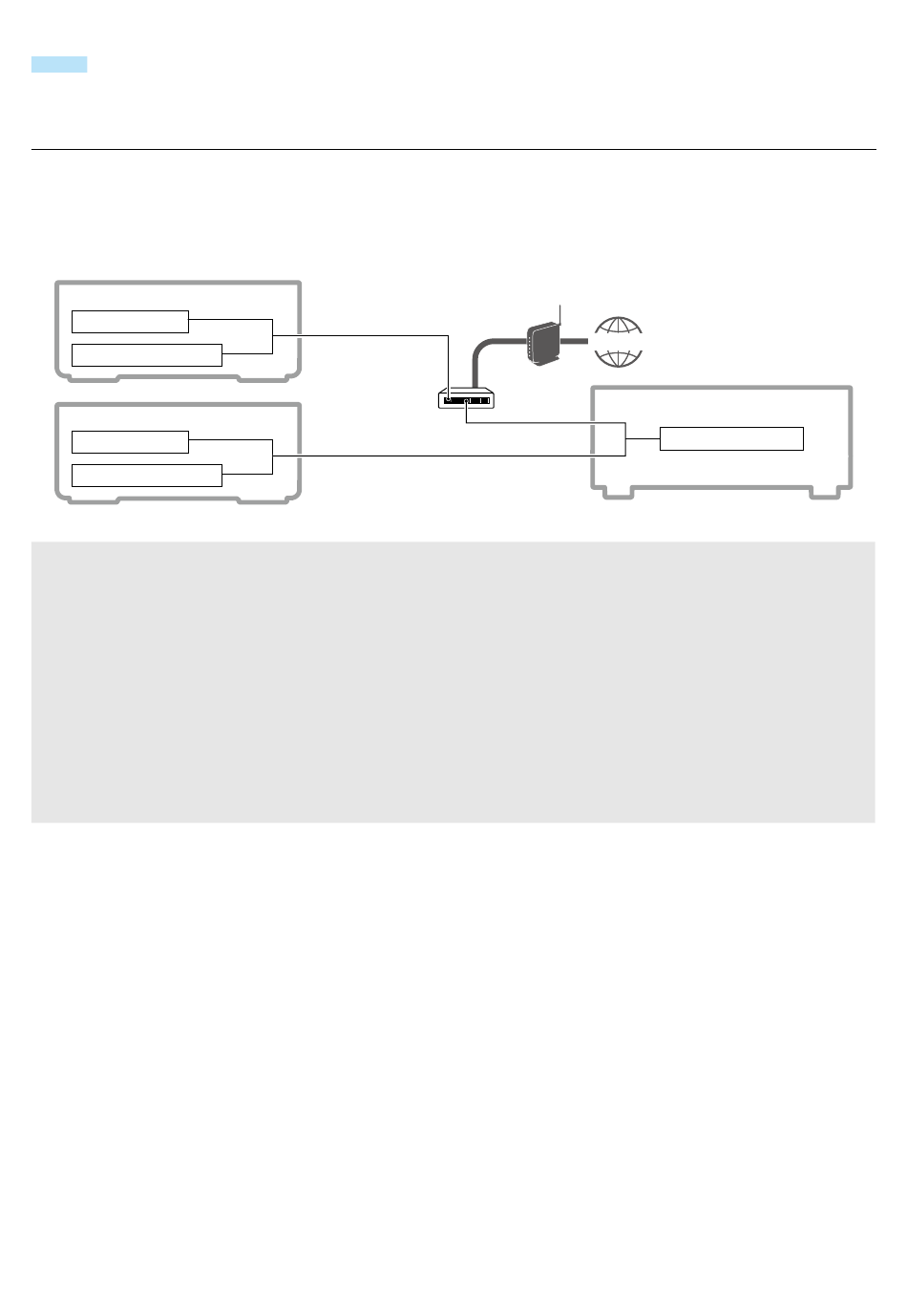

Example: When connecting one controller through a network and connecting the other directly
• When operating the controller connecting through a network (Controller 1), all 3 IP addresses are used for the
connection.
• When operating the controller connecting directly (Controller 2), "IP Address (LAN)" is used to connect to a
network.
Controller 1
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Controller 2
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
NOTE for using additional controllers:
• DO NOT connect 2 or more controllers to the RF deck's [CONTROLLER].
• BE SURE that the firmware version of all controllers and the RF deck are the same.
L The RF deck's firmware can be updated only when the controller and RF deck are connected. After one controller and
the RF deck firmware are updated, you can update the other controller's firmware without connecting it to the RF deck.
• Before using an additional controller for the first time, connect to the RF deck directly to pair them.
• When there are 2 or more controllers in the same segment and not using DHCP, BE SURE not to set duplicate
IP addresses.
• Even when an RF deck is paired with 2 or more controllers, you can use only one controller at a time to operate
the RF deck.
A controller that is turned ON last has the priority of connecting to the RF deck. In this case, the controller first
connected to the RF deck displays a dialog for 5 seconds, and then that controller will automatically be turned OFF.
• When you change the controller to operate, operating settings are not synchronized. The controller is turned
ON with the last used settings.
