Controller and RF deck connection
Changed
DAbout the Connection route and IP connection between the controller and RF deck
The IC-7760's controller and RF deck connect using the IP
method. The IC-7760 has 3 IP addresses described to the right,
and when you connect the controller and RF deck through a
network, all of 3 IP addresses are used.
L When you connect the controller and RF deck directly with the supplied control cable, the 3 IP addresses are not used for the
connection.
L When using the NTP function, or remotely controlling by a PC using the RS-BA1 software, "IP Address (LAN)" is used to
connect to a network.
There are 11 connection methods.
is a setting in the Set mode. Not used addresses are grayed in the images.
L
» SET > Network
MENU
NOTE:
• DO NOT connect 2 or more controllers, or other devices to the RF deck's [CONTROLLER].
• When connecting in a wired LAN, we recommend that you use a networking device or ethernet cable that is
compatible only with Gigabit Ethernet or faster, between the controller and RF deck.
Using a device that is compatible only with Fast Ethernet or earlier may cause abnormal noise, and operation
cannot be guaranteed.
• When connecting through the Internet, a network environment with the following stable network speed is required.
- Controller ➔ RF deck:
- RF deck ➔ Controller: 10 Mbps or faster
Depending on your Internet environment, the audio may be intermittent due to packet loss.

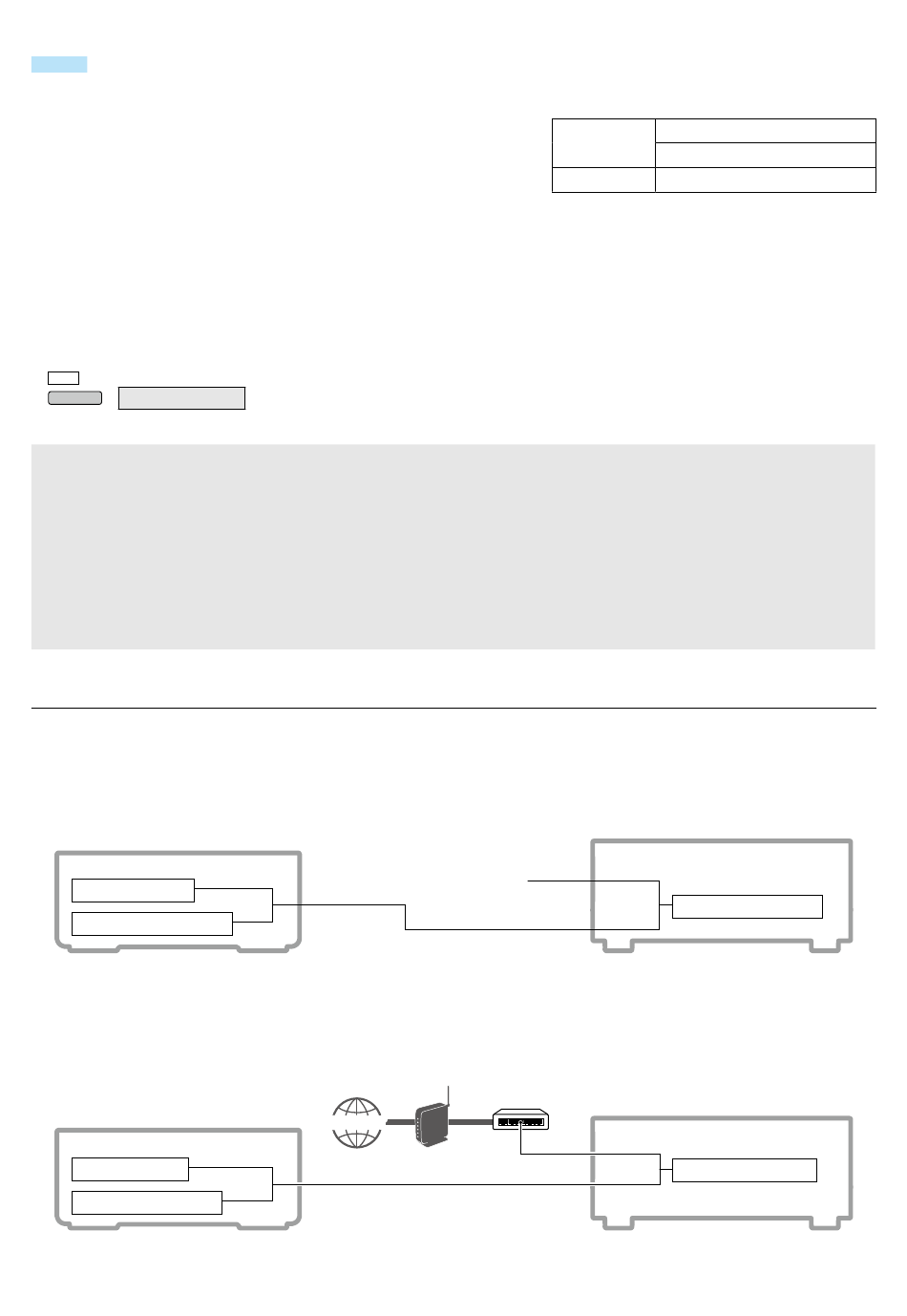

Connecting directly with the supplied control cable
Connecting the controller and RF deck directly:
The controller and RF deck are directly connected with the supplied control cable.
L You have to connect that way before using the transceiver or an additional controller for the first time, or after performing an
All reset.
The controller and RF deck are automatically paired after the RF deck is turned ON, and then the controller is turned ON.
L The IP addresses are not used for the connection.
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Connecting the controller and RF deck directly, and connecting the RF deck to a network:
The controller and RF deck are directly connected with the supplied control cable, and the RF deck's [LAN] port is
connected to a network switch.
L "IP Address (LAN)" is used to connect to a network. Other IP addresses are not used to connect the controller and RF deck.
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
5 Mbps or faster
[RF DECK]
INTERNET INTERNET
Router Router
[RF DECK]
Controller
RF deck
[LAN]
No connection
[CONTROLLER]
Network switch Network switch
[LAN]
[CONTROLLER]
2
IP Address (LAN)
IP Address (Controller)
IP Address (RF Deck)
RF deck
IP Address (RF Deck) IP Address (RF Deck)
RF deck
IP Address (RF Deck) IP Address (RF Deck)
