Icom IC-7760 Addendum page 5

Controller and RF deck connection
Changed
D About the Connection route and IP connection between the controller and RF deck
Connecting through the Internet
* Set the RF deck's static IP address that is displayed after "Connection Route" is changed.
1
» SET > Network > Controller Connection (via LAN) > RF Deck side Settings
MENU
* You need a global IP address and forwarding ports.
2
You can confirm the information for port forwarding on the PORT FORWARDING SETTINGS screen.
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Port Information (RF Deck side)
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Port Information (Controller side)
* When "Connection Route" is set to "Internet (by on Both sides Port FWD)," set "Connection Destination (RF Deck
3
WAN Address)" to the router B's WAN IP address or domain name.
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Connection Destination (RF Deck WAN Address)

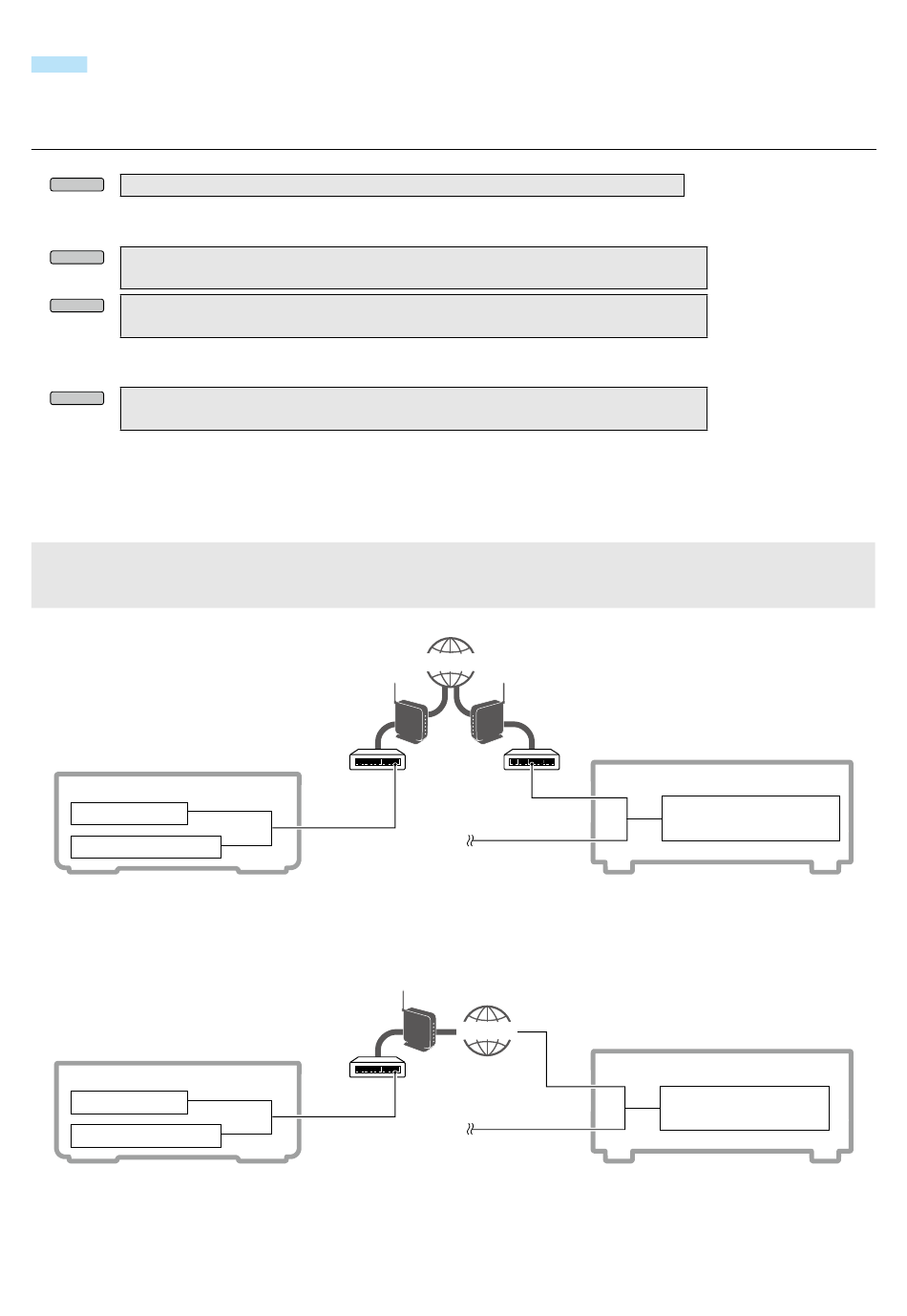

Internet (by on Both sides Port FWD):
The controller and RF deck are connected through the Internet, and routers are on both the controller and RF deck
sides.
L Only one controller can be connected to the RF deck from one different segment (LAN side of the router A).
NOTE: The controller can connect to the RF deck using a static global IP address or domain name on the RF
deck side. If you have a dynamic global IP address, use a Dynamic DNS service to enable the controller to
connect to the RF deck.
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Internet (by on Controller Port FWD):
The controller and RF deck are connected through the Internet, the RF deck has a global static IP address.
L Only one controller can be connected to the RF deck from one different segment (LAN side of the router A).
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Router A* Router A*
2 2
Network switch Network switch
[RF DECK]
Router A* Router A*
2 2
Network switch Network switch
[RF DECK]
INTERNET INTERNET
Router B* Router B* * *
2 2 3 3
Network switch Network switch
[LAN]
[CONTROLLER]
INTERNET INTERNET
[LAN]
[CONTROLLER]
5
RF deck
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
RF deck
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
V1.10
> >
