Controller and RF deck connection
Changed
D About the Connection route and IP connection between the controller and RF deck
Connecting through LAN with a router
* Set the RF deck's static IP address that is displayed after "Connection Route" is changed.
1
» SET > Network > Controller Connection (via LAN) > RF Deck side Settings
MENU
* You need forwarding ports.
2
You can confirm the information for port forwarding on the PORT FORWARDING SETTINGS screen.
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Port Information (RF Deck side)
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Port Information (Controller side)
* When "Connection Route" is set to "LAN (by on RF Deck Port FWD)," set "Connection Destination (RF Deck
3
WAN Address)" to the router B's WAN IP address or Domain name.
» SET > Network > Controller Connection (via LAN) > Port Forwarding Settings >
MENU
Connection Destination (RF Deck WAN Address)

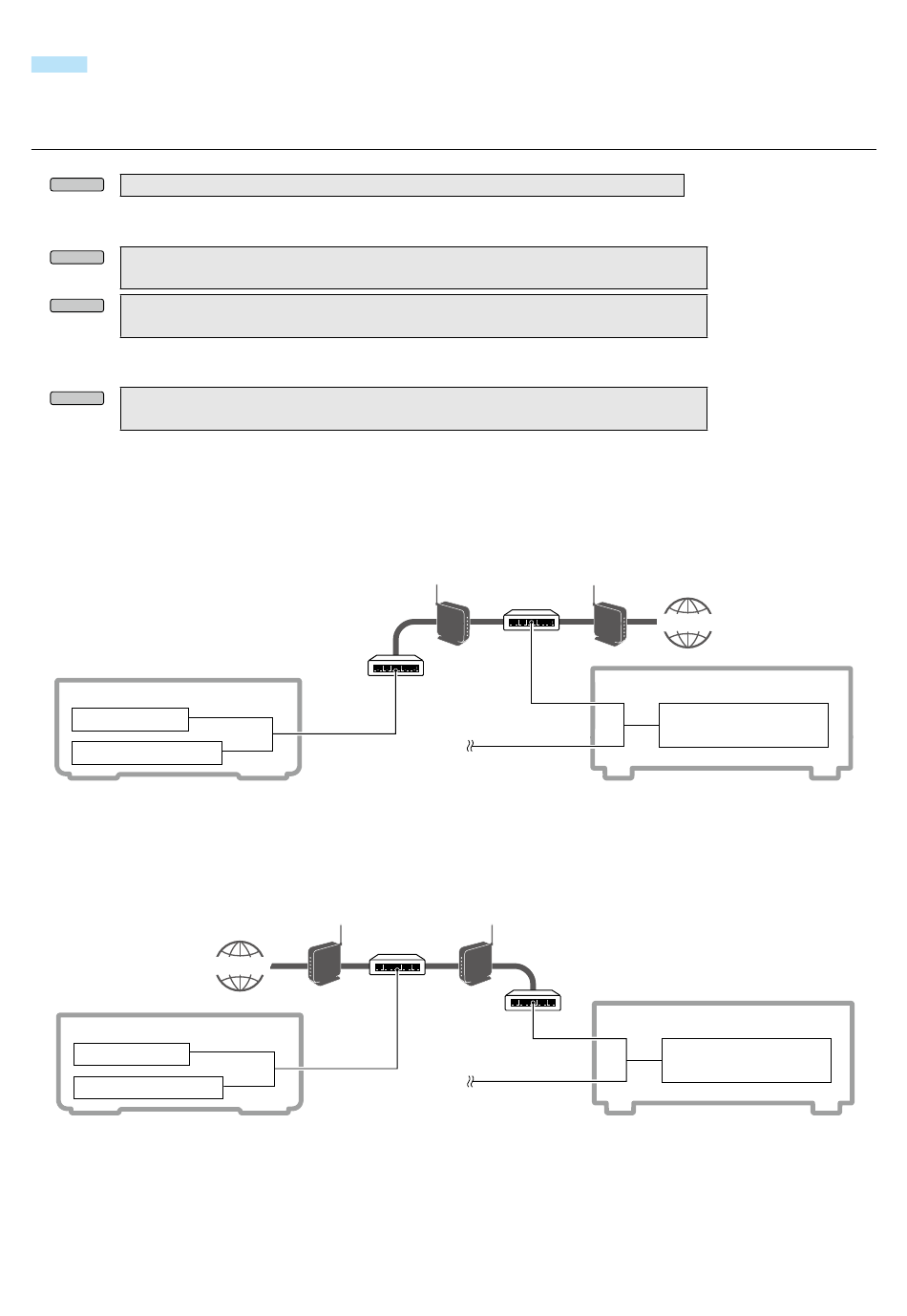

LAN (by on Controller Port FWD):
The controller and RF deck are connected between different segments.
The controller is on the LAN side of the router A with forward ports, and the RF deck is on the WAN side.
L Only one controller can be connected to the RF deck from one different segment (LAN side of the router A).
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
LAN (by on RF Deck Port FWD):
The controller and RF deck are connected between different segments.
The controller is on the WAN side of the router B with forward ports, and the RF deck is on the LAN side.
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Router A* Router A*
Network switch Network switch
[RF DECK]
Router Router
Network switch Network switch
INTERNET INTERNET
[RF DECK]
2 2
Network switch Network switch
LAN WAN
[LAN]
[CONTROLLER]
Router B* Router B* * *
2 2 3 3
WAN LAN
Network switch Network switch
[LAN]
[CONTROLLER]
4
Router Router
INTERNET INTERNET
RF deck
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
RF deck
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
