Icom IC-7760 Addendum page 6

Controller and RF deck connection
Changed

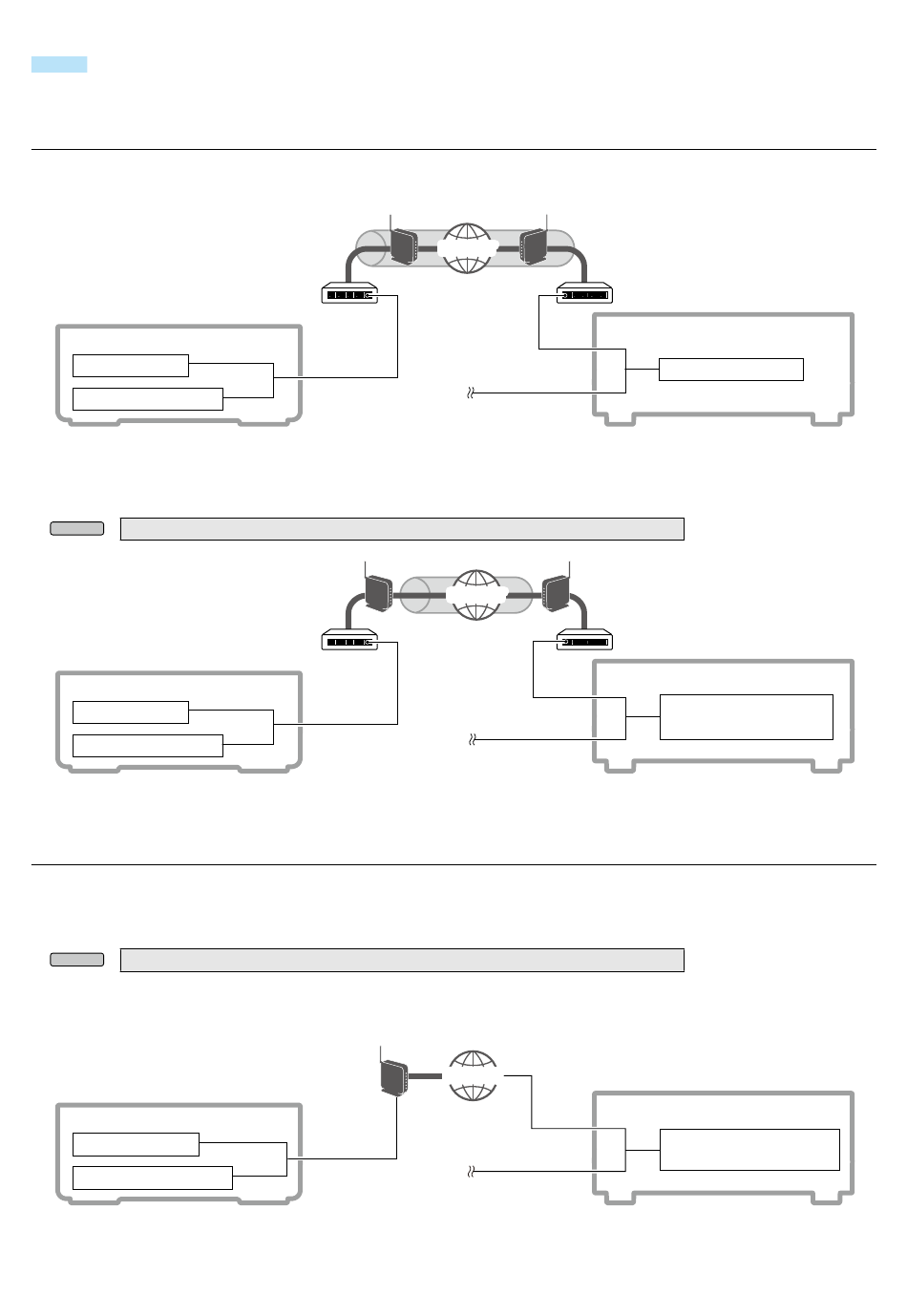

D About the Connection route and IP connection between the controller and RF deck
Connecting through the Internet VPN
Internet (L2 VPN in Same Segment):
The controller and RF deck are connected through the Internet by using a Layer 2 VPN (such as L2TP).
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Internet (L3 VPN from Diff Segment):
The controller and RF deck are connected through the Internet by using a Layer 3 VPN (such as PPTP).
* Set the RF deck's static IP address that is displayed after "Connection Route" is changed.
» SET > Network > Controller Connection (via LAN) > RF Deck side Settings
MENU
Controller
IP Address (LAN) IP Address (LAN)
IP Address (Controller) IP Address (Controller)
Connecting through the Internet with global static IP addresses
Internet (with Static IP Address):
The controller and RF deck are connected through the Internet, and they have global static IP addresses.
* Set the RF deck's static IP address that is displayed after "Connection Route" is changed.
1
» SET > Network > Controller Connection (via LAN) > RF Deck side Settings
MENU
* You need 2 different global static IP addresses for the controller and 1 global static IP address for the RF deck.
2
* A router that supports IP unnumbered is required on the controller side.
3
Controller
IP Address (LAN)* IP Address (LAN)*
2 2
IP Address (Controller)* IP Address (Controller)*
L2 VPN router L2 VPN router
Network switch Network switch
[RF DECK]
L3 VPN router L3 VPN router
Network switch Network switch
[RF DECK]
Router* Router*
3 3
[RF DECK]
2 2
L2 VPN router L2 VPN router
INTERNET INTERNET
RF deck
[LAN]
[CONTROLLER]
L3 VPN router L3 VPN router
INTERNET INTERNET
RF deck
[LAN]
[CONTROLLER]
INTERNET INTERNET
RF deck
[LAN]
[CONTROLLER]
6
Network switch Network switch
IP Address (RF Deck) IP Address (RF Deck)
Network switch Network switch
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
RF Deck side Settings* RF Deck side Settings*
IP Address (RF Deck) IP Address (RF Deck)
V1.10
> >
* * > >
1 1 2 2
