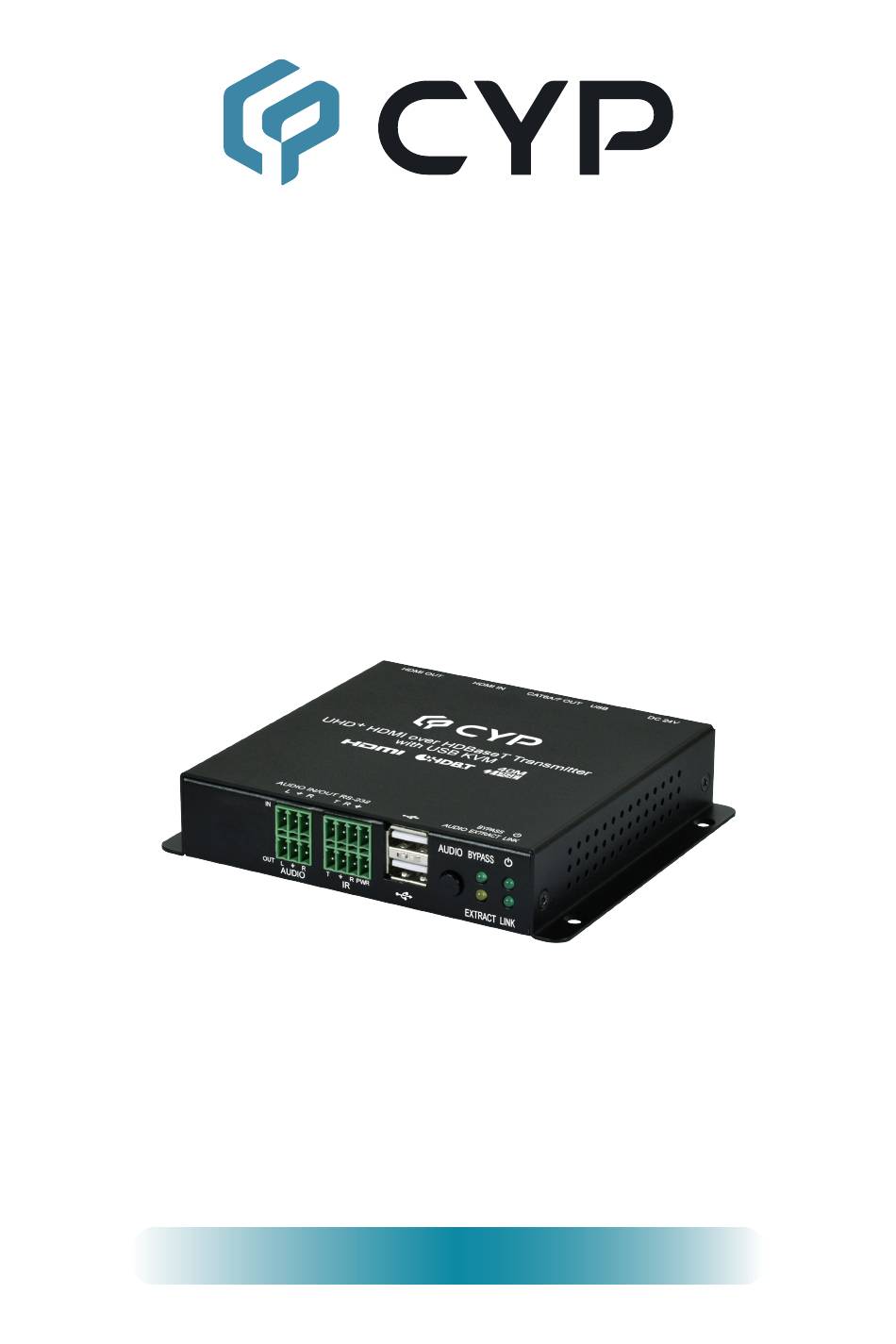

- Page 1 VEX-E2501T HDMI over HDBaseT Transmitter with USB KVM Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 6.3 IR Cable Pinouts.......... 5 6.4 Serial Pinout .......... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI over HDBaseT transmitter uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) • 1 HDMI input, 1 HDMI output, and 1 HDBaseT output • Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TEST PASS R PWR FAIL LINK AUDIO 6 8 10 AUDIO IN 3-pin Terminal Block: Connect to the analog audio output of a device such as a media player or game console using a 3-pin adapter cable. -
Page 9: Rear Panel
PASS LED: This LED will illuminate solidly to indicate that the most recent cable test result was successfully passed. FAIL LED: This LED will illuminate solidly to indicate that the most recent cable test resulted in a failure with too many detected errors. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster + IR Extender 4-pin Terminal Block 3.3V 6.4 Serial Pinout 4-pin Terminal Block 6.5 Audio Pinouts Stereo Audio Input Stereo Audio Output 3-pin Terminal Block 3-pin Terminal Block RIGHT RIGHT LEFT LEFT... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Tower PC Local Monitor 60° 1.5m 60° RS-232 IR Input & Output HDMI Input HDMI Output AUDIO BYPASS R PWR Power AUDIO EXTRACT LINK Supply DC24V 2.7A CAT6A/7 OUT HDMI IN HDMI OUT IR Input & AUDIO BYPASS Output R PWR AUDIO... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps HDBaseT Bandwidth 18Gbps Input Ports 1×HDMI (Type-A) 1×Analog Stereo (3-pin Terminal Block) Output Ports 1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Analog Stereo (3-pin Terminal Block) Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A) Pass-through/Service Port 1×USB 2.0 (Micro-B) -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 14 Input Output Supported Resolutions (Hz) HDMI HDMI HDBT 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 15: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / HDMI & HDBaseT Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 10kΩ... -
Page 16: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 Cat.6A/7 Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 17: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
