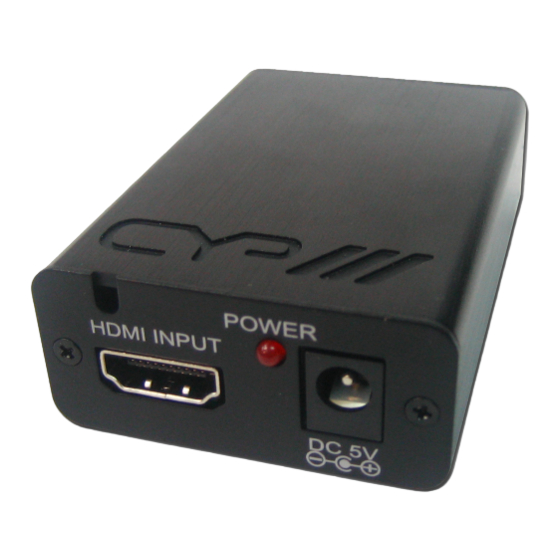

- Page 1 PU-103 HDMI v1.3 to CAT6 Transmitter Operation Manual PU-103...
- Page 3 TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Operation Controls and Functions..........1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Connection and Installation............2 6. Specifications................2...
-
Page 4: Package Contents
1. Introduction This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, a cutting edge technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. -
Page 5: Connection And Installation
CAT-6 cable. 5. Connection and Installation HDMI VIDEO Cable HDMI DVD PLAYER Cable PU-103 PU-103 HDMI LCD TV 6. Specifications Input port 1 x HDMI Output ports 1 x CAT-6 output for Video, 1 x CAT6 output for DDC Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) - Page 7 2008.1.14 MPM-CH103TX-UK...
- Page 9 PU-103 CAT6 to HDMI Receiver Operation Manual PU-103...
- Page 11 TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Operation Controls and Functions..........1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Connection and Installation............2 6. Specifications................2...
- Page 12 1. Introduction This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, a cutting edge technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz.
- Page 13 AC wall outlet. 5. Connection and Installation HDMI VIDEO Cable HDMI DVD PLAYER Cable PU-103 PU-103 HDMI LCD TV 6. Specifications Input ports 1 x CAT-6 input for Video, 1 x CAT6 input for DDC Output port 1 x HDMI Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
- Page 15 2008.1.14 MPM-CH103RX-UK...
