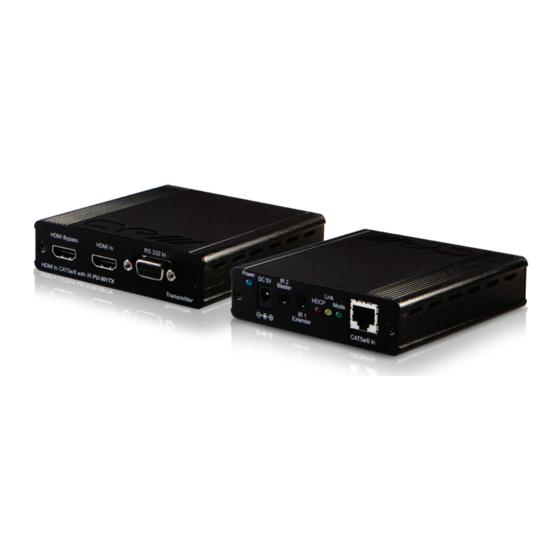

- Page 1 PU-501 HDMI over Single CAT6 Transmiter and Receiver Set (100m) OPERATION MANUAL...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel .............. -
Page 5: Introduction
1. Introduction The device that can make your home or office more efficient, this unit of HDMI with RS-232 over Single CAT5e/CAT6 can transmit and receive uncompressed audio/video, control through the built-in RS-232 and IR ports over 100M. Further, with a HDMI bypass design it allows an instant display at the control point. Hence, if you want to make your home or office more efficient, get the HDMI over Single CAT5e/CAT6 and prepare to be amazed. -
Page 6: Specifications
6. Specifications Transmitter Input 1 x HDMI , 1 x HDMI Bypass, 1 x RS-232, 1 x IR Extender, 1 x IR Blaster Output 1 x CAT5e/6 Receiver Input 1 x CAT5e/6, 1 x IR Extender, 1 x IR Blaster Output 1 x HDMI, 1 x RS-232 ESD Protection... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel Transmitter Receiver . HDMI Bypass: This slot is to connect with HDMI TV/monitor for instant display HDMI input source signal. When the HDMI bypass is connected, all signals will not transmit to the receiver side. Therefore, unplug this slot after confirm image display. -
Page 8: Rear Panel
7.2 Rear Panel Transmitter Receiver 4 5 6 4 5 6 . DC 5V: These slots are where you plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. . IR 1/2 Blaster: These slots are to connect with the IR blaster cables included in the package for IR signal transmitting. -
Page 9: Connection And Installation
9. Connection and Installation... -
Page 10: Acronyms
Acronyms Acronym Complete Term CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Infrared...
