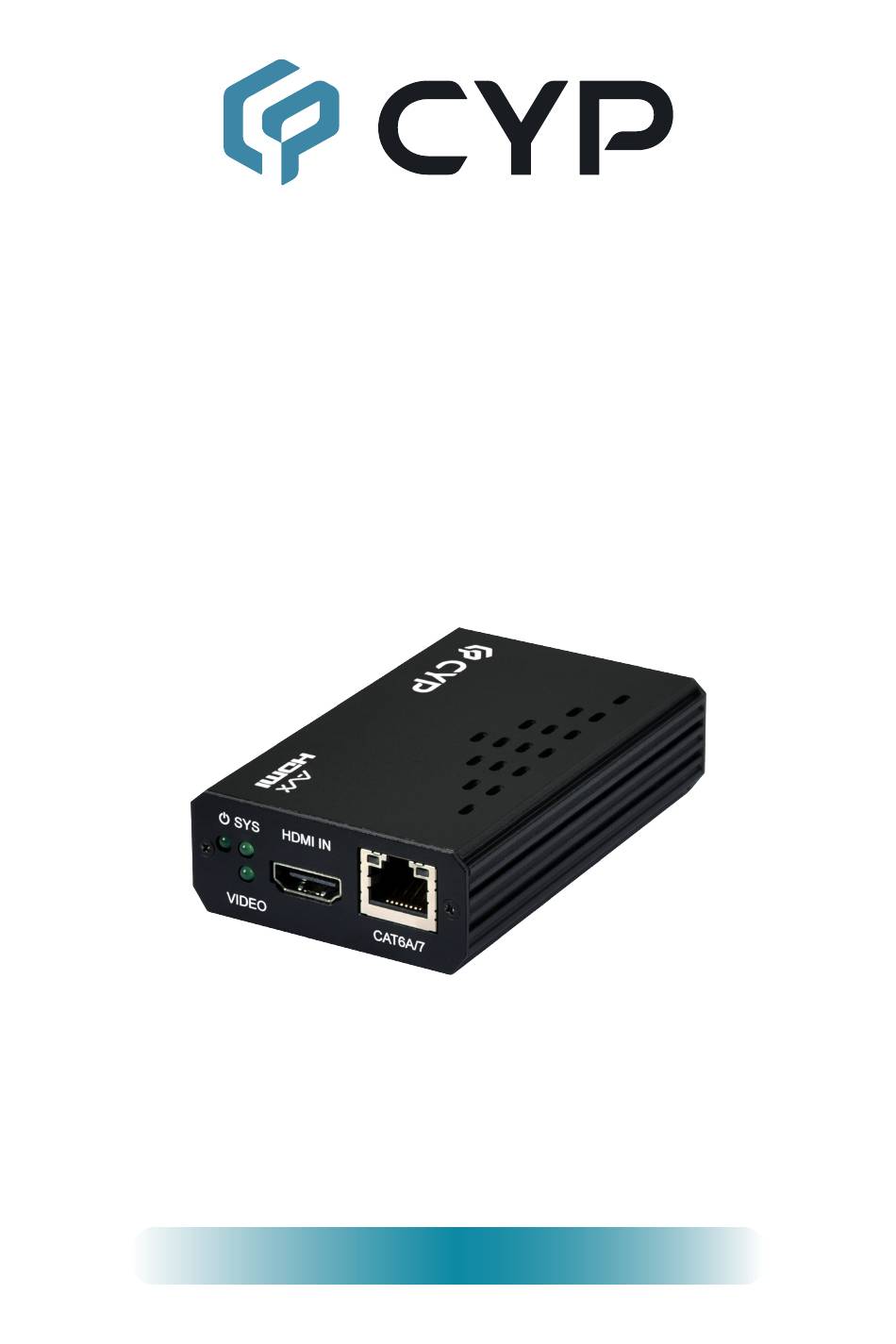

- Page 1 VEX-X1102T-B0C HDMI over Copper Transmitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 7. Connection Diagram ........5 8. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI over Copper Transmitter is designed for high-quality AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K@60Hz (4:4:4) HDMI audio/video streams. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be easily transmitted. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • 1 HDMI input • 1 10GbE output • Ultra-light compression, lossless for most content • Extension up to 100m when using at.6A/7 • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output •... -
Page 8: Operation Controls And Functions

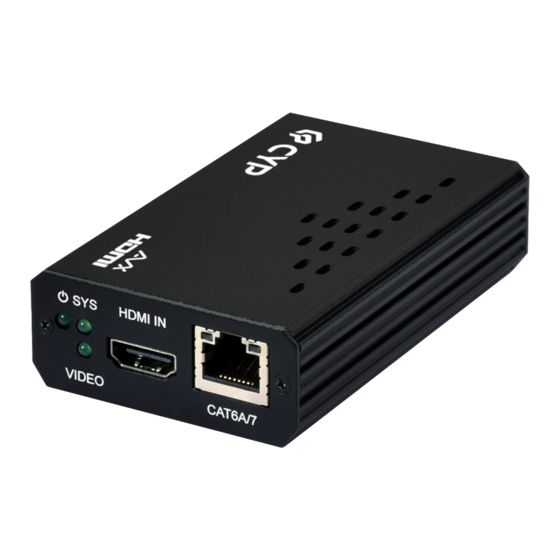

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI IN VIDEO CAT6A/7 Power ( ) LED: This LED will illuminate to indicate the unit is on and receiving power. Note: This LED will blink during the firmware update process. System ( ) LED: This LED will illuminate to indicate that the system is stable and ready to process audio/video streams. -
Page 9: Rear Panel
6.2 Rear Panel SERVICE DC 5V SERVICE (USB Mini-B) Port: This port is for firmware update only. DC 5V Port: Plug the 5V DC power adapter into this port and connect it to an AC wall outlet for power. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Power Supply SERVICE DC 5V HDMI IN VIDEO CAT6A/7 Media Player HDMI Input HDMI Output HDMI OUT Smart TV Power VIDEO CAT6A/7 Supply SERVICE DC 5V... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Ethernet Bandwidth 10Gbps Input Ports 1×HDMI (Type-A) Output Ports 1×10GbE (RJ-45) Service Port 1×USB 2.0 (Mini-B) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive]... -
Page 12: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI 10GbE 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 13 Input Output Supported Resolutions (Hz) HDMI 10GbE 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 4096×2160p@24/25/30 ...
-
Page 14: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / 10GbE Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Audio/Video AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
