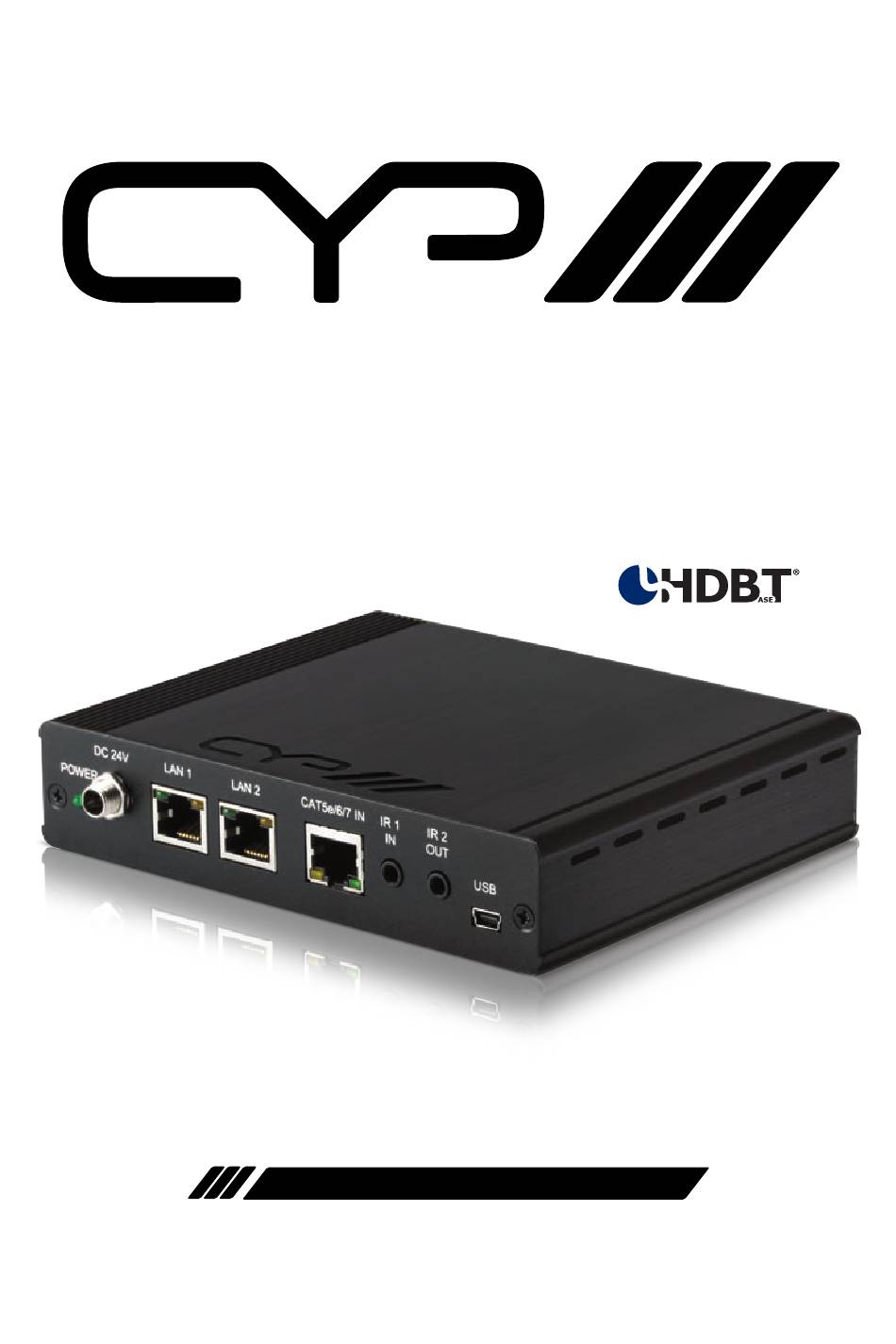

- Page 1 PU-515PLTX-1H HDBaseT™ LITE Transmitter with simultaneous HDMI output (HDMI, IR & RS-232 with POC, up to 60m) OPERATION MANUAL...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....5 6.4. -
Page 4: Introduction
1. INTRODUCTION The PU-515PLTX-1H Transmitter allows uncompressed HDMI signals and to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. -
Page 5: Features
5. FEATURES • HDCP 2.2 Compliant • HDMI, HDCP, & DVI compliant • Supports all v1.4 HDMI resolutions plus 4k. • Supports uncompressed video/audio up to 10.2Gbps • Simultaneous HDMI and CAT5e/6/7 outputs • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 &... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 IN HDMI OUT HDMI IN Transmitter HDMI to CAT5e/6 with IR/RS232 HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter. The unit will detect CAT5e/6/7 output's EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. -
Page 7: Rear Panel
6.2 Rear Panel IR 1 POWER BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT POWER LED: Once the power supply is connected the LED will illuminate. DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 8: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Grounding 6.4. D-Sub 9 Pin Defi nitions Defi ne TX / RX TxD/RxD RxD/TxD... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM 3D TV/Display Blu-ray or PS3 Player HDMI HDMI RS232 IN HDMI OUT HDMI IN RS-232 Cable Transmitter HDMI to CAT5e/6 with IR/RS232 IR 1 POWER BLASTER LINK 1.5m IR 2 DC 24V EXTENDER 60° CAT5e/6 OUT IR BLASTER 60°... -
Page 10: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x HDMI, 1 x 3.5mm Phone Jack for RS-232, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x IR OUT, 1 x CAT5e/6/7 Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x 2160@24Hz) HDMI Input &... -
Page 11: Cat5E/6/7 Cable Specifi Cation
8.1 CAT5e/6/7 Cable Specifi cation Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
