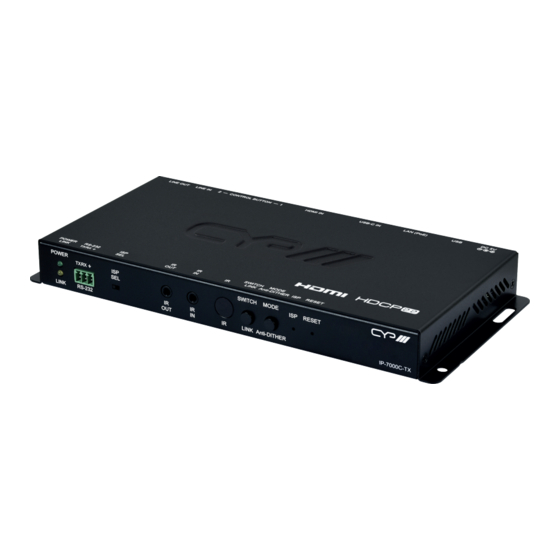

IP-7000C-TX
UHD HDMI/USB-C Over IP Transmitter
with USB/KVM Extension
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-7000C-TX and is the answer not in the manual?

Questions and answers

Related Manuals for CYP IP-7000C-TX

Summary of Contents for CYP IP-7000C-TX

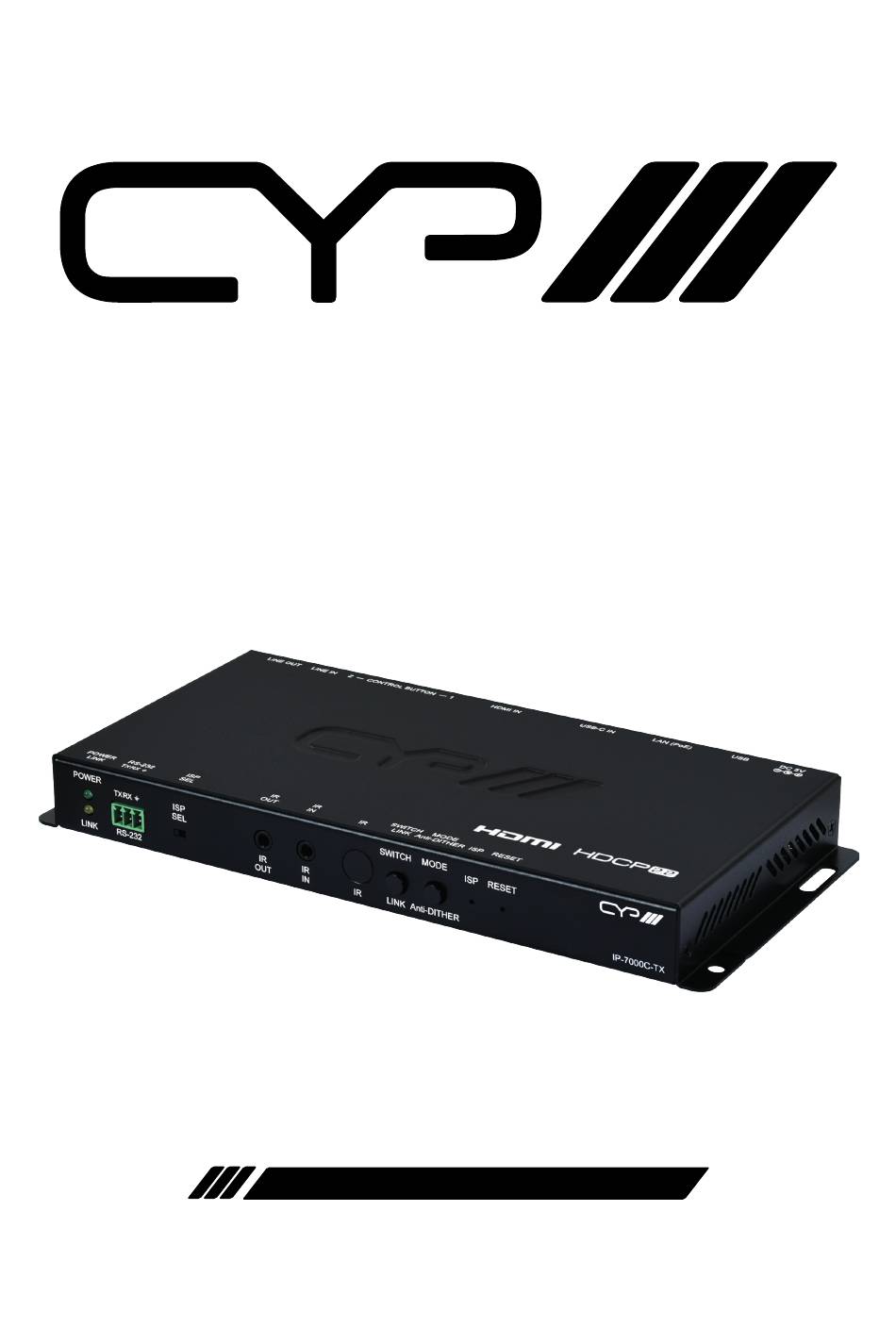

  • Page 1 IP-7000C-TX UHD HDMI/USB-C Over IP Transmitter with USB/KVM Extension OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Content ...........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Transmitter's Front Panel ........4 6.2 Transmitter's Rear Panel ........6 6.3 IR Cable Pinouts ...........7 6.4 Serial Pinout and Defaults ........7 6.5 WebGUI Control ...........8 6.5.1 System Tab ..........

  • Page 6: Introduction

    1. INTRODUCTION This unit is part of a 4K UHD multi-format extension system that allows you to extend HDMI or USB-C signals along with KVM using the TCP/IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz RGB) with audio and USB up to 100m on a single cable.

  • Page 7: Package Content

    3. PACKAGE CONTENT  1× UHD HDMI/USB-C over IP Transmitter with USB/KVM Extension  1× 5V/2.6A DC Power Adapter  1× IR Extender Cable  1× IR Blaster Cable  1× Operation Manual 4. SYSTEM REQUIREMENTS  HDMI or USB-C source equipment such as media players, video game consoles, PCs, or set-top boxes.

  • Page 8: Features

    5. FEATURES  HDMI 2.0 and DVI 1.0 compliant  HDCP 1.4 & 2.2 compliant  1×HDMI input, 1×USB-C input  Video, audio, and control transmission over TCP/IP in unicast (point-to- point) or multicast (single-to-many) modes  HDMI & USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) Note: 4K@50/60Hz (4:2:0) sources are automatically converted to 4K@25/30Hz (RGB) and 4K@50/60Hz (4:4:4) sources are automatically converted to 1080p@50/60Hz (RGB) prior to transmission from the...

  • Page 9: Operation Controls And Functions

    LINK RS-232 LINK Anti-DITHER IP-7000C-TX 9 1011 POWER LED: This LED will flash while the unit is powering on and will illuminate solidly once it is ready to be used. LINK LED: If the transmitter has no network connection the LINK LED will not illuminate.
  • Page 10 IR Window: Accepts IR signals from any standard remote control and sends the signal to the IR Out on the associated receiver. Note: When the transmitter is in multicast mode the IR signal is sent to all associated receivers. SWITCH/LINK Button: This button controls the following functions: „...

  • Page 11: Transmitter's Rear Panel

    6.2 Transmitter's Rear Panel DC 5V LAN (PoE) CONTROL BUTTON LINE OUT USB-C IN HDMI IN LINE IN DC 5V Port: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. Note: Optional, not needed if the unit is powered via PoE.

  • Page 12: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 Serial Pinout and Defaults Serial Port Default Settings Baud Rate 115200 Data Bits Parity Bits None Stop Bits Flow Control None 3-pin Terminal Block...

  • Page 13: Webgui Control

    6.5 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Internet”...
  • Page 14 WebGUI Overview All major functions of the unit, including status, streaming method, streaming channel selection, output resolution, video wall configuration, EDID management, Ethernet settings, and reset/firmware functions are controllable via multiple tabs in the WebGUI interface allowing for reasonably intuitive operation. Each transmitter, receiver, or transceiver is controlled by its own WebGUI interface which may be accessed by opening a standard web browser on a PC and typing in the IP address of the unit you wish to connect to.

  • Page 15: System Tab

    6.5.1 System Tab The System tab contains 4 windows that provide access to firmware version information, a firmware update interface, utilities for rebooting and resetting the unit, basic EDID management, Telnet command entry, and a variety of statistics and information about the operational state of the unit.
  • Page 16 3) Utilities: The Utilities window allows users to reset the unit back to the factory defaults by clicking “Factory Default”. The unit may be rebooted (without resetting settings) by pressing the “Reboot” button. Note: Enable Log Messages is for troubleshooting purposes and should only be checked if instructed to do so by technical support.
  • Page 17 4) Statistics: The Statistics window shows all available information about the operational status of the unit, including current Host ID Name, serial number, Ethernet information, MAC address, unicast/multicast mode, link status and mode.

  • Page 18: Video Wall Tab

    6.5.2 Video Wall Tab The Video Wall tab allows user to design, edit and manipulate a video wall system created using multiple receiver units connected to identical displays. The bezel and video size of the displays being used, as well as the horizontal and vertical monitor count, is defined here.
  • Page 19 When saving changes on the Video Wall tab, remember to select the appropriate “Apply To:” target unit before pressing the “Apply” button. On transmitters, settings may only be applied to remote receivers within the same video wall group. Select the IP address of the receiver (Client) you want to apply changes to from the “Apply To:”...
  • Page 20 long as the same measurement units are used to measure each display and the displays are still arranged in a normal rectangular layout with corners meeting at the same place. „ Apply To: Select which unit(s) to send updated settings to when “Apply”...
  • Page 21 3) Preferences: This section of the Video Wall tab provides additional controls over how the source video is displayed on the video wall as well as providing a drop down to determine which receiver to apply changed settings to. „ Stretch Type: Set the video stretch method. - Selecting “Fit In”...

  • Page 22: Network Tab

    6.5.3 Network Tab The Network tab provides controls over the transmitter’s broadcast channel, IP configuration, and network broadcast mode. Changes made to the network settings will require a reboot of the unit. After clicking on “Apply” please follow the reboot instructions in the WebGUI. Note: If the IP address is changed then the IP address required for WebGUI access will also change accordingly.
  • Page 23 1) Channel Setup: Use the dropdown to select the broadcast channel for the transmitter. All receivers on the local network that are set to the same channel will receive video from this transmitter. The available channel range is from 0 to 255. Note: Every transmitter within the same local network must be assigned a different broadcast channel in order to avoid conflicts.

  • Page 24: Functions Tab

    6.5.4 Functions Tab The Functions tab provides control over the transmitter’s video source selection, streaming bandwidth/quality settings, as well as a wide variety of optional features and functions, including USB and serial control extension. Changes made to these settings typically require a reboot of the unit.
  • Page 25 „ Maximum Framerate: Adjusting this slider will set the percentage of frames from the source video to encode (2-100%). This is ideal for reducing the bandwidth requirements of high-resolution, but limited motion, sources such as slide presentations or information screens. Note: If the framerate is lowered too far with high motion video sources, the video will become noticeably choppy.
  • Page 26 „ Operation Mode: Sets the USB extension mode. Available options are Auto, Active on link (Unicast optimized), and Active per request (Multicast optimized). Auto mode is set by default and will automatically select the correct mode depending on the broadcast mode of the unit.

  • Page 27: Telnet Control

    6.6 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 28 COMMAND Description and Parameters get_ip_mode Show the current IP configuration mode. set_ip_address N1 Set the static IP address. N1 = X.X.X.X [X = 0~255, IP address] get_ip_address Show the current IP address. set_netmask N1 Set the Ethernet netmask. N1 = X.X.X.X [X = 0~255, Netmask] get_netmask...
  • Page 29 COMMAND Description and Parameters set_jumbo_mtu N1 Enable/disable the jumbo frame MTU. Available values for N1: [Disabled] [Enabled] get_jumbo_mtu Show the jumbo frame MTU state. get_hardware_version Show the current hardware version. factory_reset N1 Perform a factory reset on the unit and select the IP mode after the reset completes.
  • Page 30 COMMAND Description and Parameters set_hdcp_allow N1 Enable/disable HDCP encrypted source support. Available values for N1: [Disabled] [Enabled] get_hdcp Show the current HDCP support state. set_usb_mouse N1 Set the USB mouse performance mode. Available values for N1: [High resolution mode] [Compatibility mode] get_usb_mouse...
  • Page 31 COMMAND Description and Parameters get_frame_rate Show the unit’s current frame rate setting. set_vw_osd N1 {N2} Enable/disable video wall OSD to display the Target Receiver number on the designated display. Available values for N1: [Disable] [Enable] N2 = 0~255 [Target Rx {Optional}] Note: Target receiver number can be obtained by turning on the Video Wall OSD.
  • Page 32 COMMAND Description and Parameters set_vw_bc N1 N2 N3 N4 {N5} Set the video wall display’s bezel compensation values. N1 = 0~99999 [Video width] N2 = 0~99999 [Total display width] N3 = 0~99999 [Video height] N4 = 0~99999 [Total display height] N5 = 0~255 [Target Rx {Optional}] Note: Target receiver number can be obtained by turning on the Video Wall OSD.
  • Page 33 COMMAND Description and Parameters set_vw_shift N1 N2 {N3} Set the video wall display’s output shift. Available values for N1: [Shift up] [Shift down] [Shift left] [Shift right] N2 = 0~80000 [Pixel shift. Must be in increments of 8.] N3 = 0~255 [Target Rx {Optional}] Note: Target receiver number can be obtained by turning on the Video Wall OSD.
  • Page 34 COMMAND Description and Parameters set_serial_bits N1 Set the number of serial data bits. Available values for N1: [5 bits] [6 bits] [7 bits] [8 bits] get_serial_bits Show the current number of serial data bits. set_serial_parity N1 Set the serial parity bit. Available values for N1: [None] [Odd]...
  • Page 35 COMMAND Description and Parameters A N1 Change audio input or currently connected source. Available values for N1: [Digital] [Analogue] AUTO [Auto] get_A Get current input audio status. set_lock_toggle N1 Set the lock state of the unit’s video select button. Available values for N1: [Unlocked] [Locked] get_lock_toggle...

  • Page 36: Connection Diagram

    Powered IR Input Speakers IR Output Analog POWER SWITCH MODE RESET TXRX LINK RS-232 LINK Anti-DITHER IP-7000C-TX Stereo Output DC 5V LAN (PoE) USB-C IN HDMI IN CONTROL BUTTON LINE IN LINE OUT AV Receiver Network Digital Switch (PoE) Stereo Output VGA &...

  • Page 37: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 21.6Gbps Input Ports 1×HDMI (Type-A) 1×USB 3.0 (Type-C) 1×Stereo Audio (3.5mm) Output Port 1×Mono Audio (3.5mm) Output/Control Port 1×LAN (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×USB 2.0 (Type-B) Control Ports 2×Control Button (RJ-45)

  • Page 38: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI USB-C AVoIP 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60 ...
  • Page 39 Input Output Supported Resolutions (Hz) HDMI USB-C AVoIP 2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10    3840×2160p@50/60 (4:2:0), HDR10    3840×2160p@50/60 ...

  • Page 40: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI/USB-C Inputs & AV over IP Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard 8.3.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 10kΩ...

  • Page 41: Avoip Audio Availability

    8.3.3 AVoIP Audio Availability Unicast Data Transmission Mode: Connected Audio Sources Audio Source Output HDMI IN LINE IN MIC IN HDMI OUT LINE OUT LINE OUT (TX) (TX) (RX)  (RX) (TX) (RX) ● ● ● ■ ■ ■ ● ■...

  • Page 42: Cable Specifications

    8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Input  USB-C Cable USB-C Input  Ethernet Cable Cat.5e/6 100m  Cat.6A/7 100m  Bandwidth Category Examples: HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps - HD-SDI (SMPTE 292M, 1.485Gbps) FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps...

  • Page 43: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) 8K UHD 8K Ultra-High-Definition (48Gbps max, without DSC) 8K UHD 8K Ultra-High-Definition (48Gbps max, with DSC) Analogue-to-Digital Converter ASCII American Standard Code for Information Interchange AVoIP Audio/Video over IP Cat.5e...
  • Page 44 ACRONYM COMPLETE TERM Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Media Access Control MJPEG Motion JPEG Megahertz On-Screen Display Power over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Universal Serial Bus VLAN Virtual LAN VoIP...
  • Page 48 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
