Summary of Contents for CYP Dante AU-DTI4-TX

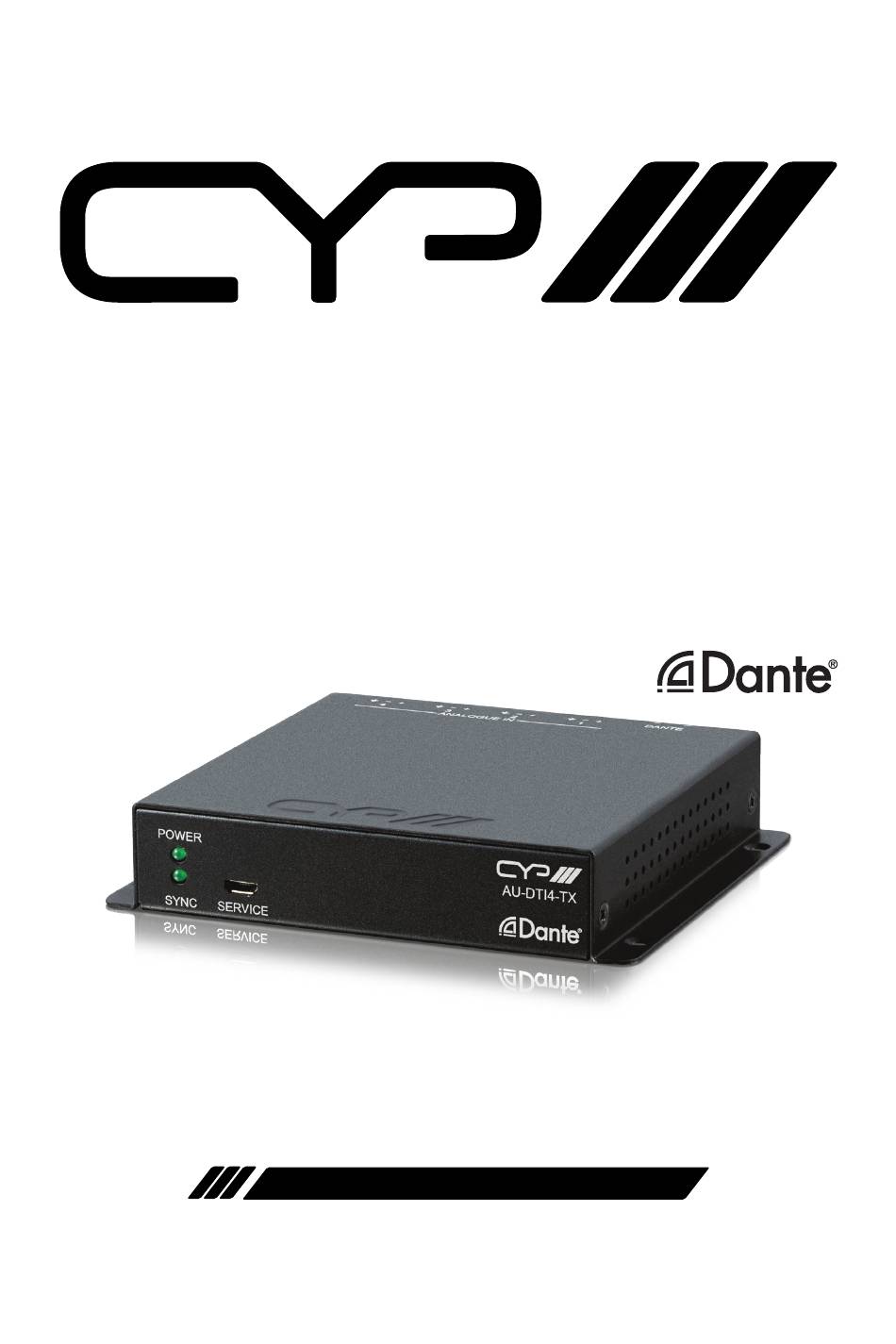

- Page 1 AU-DTI4-TX Dante Transmitter with 4 Channels of Balanced Mono Inputs OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............3 6.3 RS-232 Pinout and Defaults ......4 6.4 Audio Routing Control ........4 6.5 Serial Commands (via USB) ......5 7. -
Page 6: Introduction
1. INTRODUCTION This 4-channel analogue audio to Dante output transmitter is easy to use and convenient to install. Thanks to the integrated support for Dante technology which extends and routes audio across standard Ethernet networks, this unit forms an important part of an easier and more flexible system for managing large audio systems than traditional point-to-point physical wiring. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS An active network connection from a switch or router that supports PoE (802.3af ) for extension of Dante audio and to power the unit. Analogue audio source equipment such as microphones, media players, or PCs/laptops. 3rd party control software, such as Dante Controller from Audinate, is required to configure and manage audio routes between Dante endpoints. -
Page 8: Operation Controls And Functions

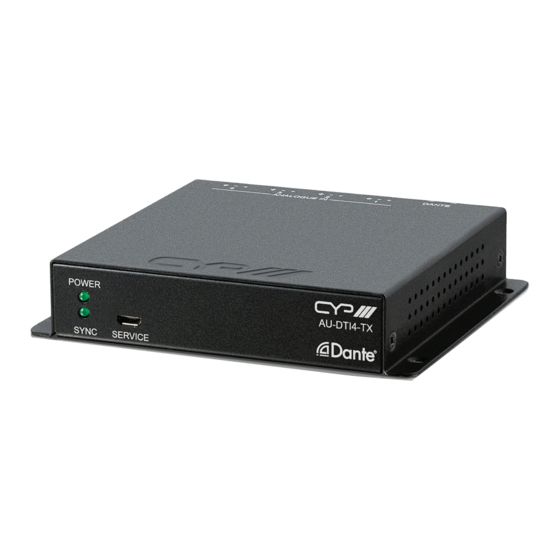

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER AU-DTI4-TX SYNC SERVICE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. SYNC LED: This LED will illuminate to indicate the unit is actively connected to a valid Ethernet network. SERVICE Port (USB 2.0 Micro-B): This port is used for serial control and firmware updates. -
Page 9: Rs-232 Pinout And Defaults
6.3 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None Note: Serial control over this unit is available only via the USB Micro-B service port on the front of the unit. Connect the unit directly to the USB port on a PC or laptop and configure the virtual COM port to use the above settings. -
Page 10: Serial Commands (Via Usb)
6.5 Serial Commands (via USB) COMMAND Description and Parameters help Show the full command list. help N1 Show details about the specified command. N1 = {Command} ? Show the full command list. ? N1 Show details about the specified command. N1 = {Command} get fw ver ... - Page 11 COMMAND Description and Parameters set audio in N1 mute N2 Set the volume mute state for the specified audio input. Available values for N1: [Analogue input 1] [Analogue input 2] [Analogue input 3] [Analogue input 4] Available values for N2: [Mute] [Unmute] get audio in N1 mute ...
- Page 12 COMMAND Description and Parameters get audio in N1 pre-gain Show the current pre-gain volume level for the specified audio input. Available values for N1: [Analogue input 1] [Analogue input 2] [Analogue input 3] [Analogue input 4] set audio in N1 power mode N2 Set the phantom power voltage level for use by microphones connected to the specified audio input.
-
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Microphone Input ANALOG IN (TX) Network Switch (PoE) ANALOG OUT (RX) Powered Speakers... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Ethernet Bandwidth 100Mbps Input Ports 4×Analogue Mono (3-pin Terminal Block) Output Port 1×Dante (RJ-45) Service/Control Port 1×USB 2.0 (Micro-B) Baud Rate 19200 Power Supply PoE (802.3af ) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 128mm×25mm×108mm [Case Only] 128mm×25mm×110mm [All Inclusive]... -
Page 15: Audio Specifications
8.2 Audio Specifications 8.2.1 Digital Audio Dante Output LPCM Max Channels 4 Channels Sampling Rate (kHz) 44.1, 48, 88.2, 96 Bitstream Supported Formats None 8.2.2 Analog Audio Analogue Input Max Audio Level 4Vrms Impedance 42.3kΩ Type Balanced 8.3 Cable Specifications Dante Audio Cable Length (Per network segment) Ethernet Cable Cat.5e/6... -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Digital-to-Analogue Converter Decibel Gigabit Ethernet Gbps Gigabits per second Internet Protocol Kilohertz Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
