- Page 1 CH-507TXWPUS HDMI over CAT5e/6/7 Wall-Plate Transmitter with IR/ RS232/LAN/PoE Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Hardware Description ......2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 RS-232 Pin Definitions ......3 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over CAT5e/6/7 Wall-Plate Transmitter can transmit uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K with PoC, IR, RS232 and LAN. of a data transmission rate of 100Mbps 100m/328ft at 1080p and 70m/229ft at 4K. -
Page 7: Hardware Description

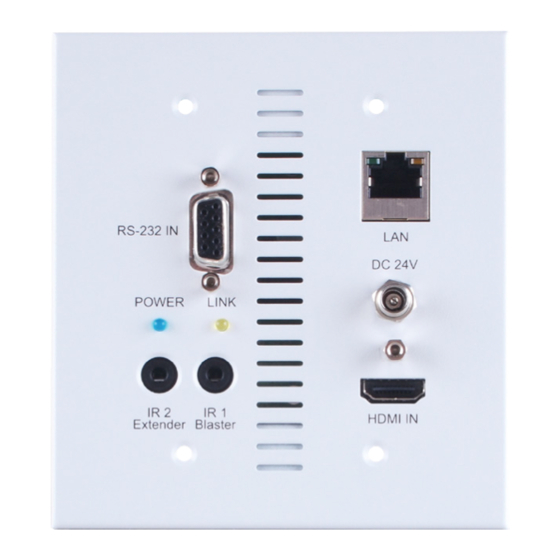

• HDBaseT 5Play convergence: uncompressed high definition Video and Audio, LAN serving, Power over Cable and RS232/IR Controls • US 2 gang wall-plate design 6. HARDWARE DESCRIPTION The following sections describe the hardware components of the unit. 6.1 Front Panel RS-232 IN DC 24V POWER... -
Page 8: Rear Panel
RS-232 IN: This slot is connect with D-Sub 9-pin cable from PC/ Laptop device RS-232 commands sending. DC 24V: Connect the power adaptor included in the package and then connect to AC power to activate the device.. POWER LED: This LED will illuminate when the device is connected to a power supply. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC Internet Modem or or Notebook Router CAT5e/6/7 RS-232 1.5m Power 60° Supply IR Blaster DVD or Blu-ray RS-232 IN Player DC 24V POWER LINK IR 2 IR 1 HDMI IN Extender Blaster 60° Notebook CAT5e/6/7 IR Extender RS-232 OUT... -
Page 10: Specifications
8. SPECIFICATIONS Video Frequency 300MHz/9Gbps Input Ports 1 x HDMI, 1 x IR Extender, 1 x LAN, 1 x RS232 Output Ports 1 x IR Blaster, 1 x CAT5e/6/7 IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec Power Supply... -
Page 11: Cable Specifications
8.1 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... - Page 12 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
