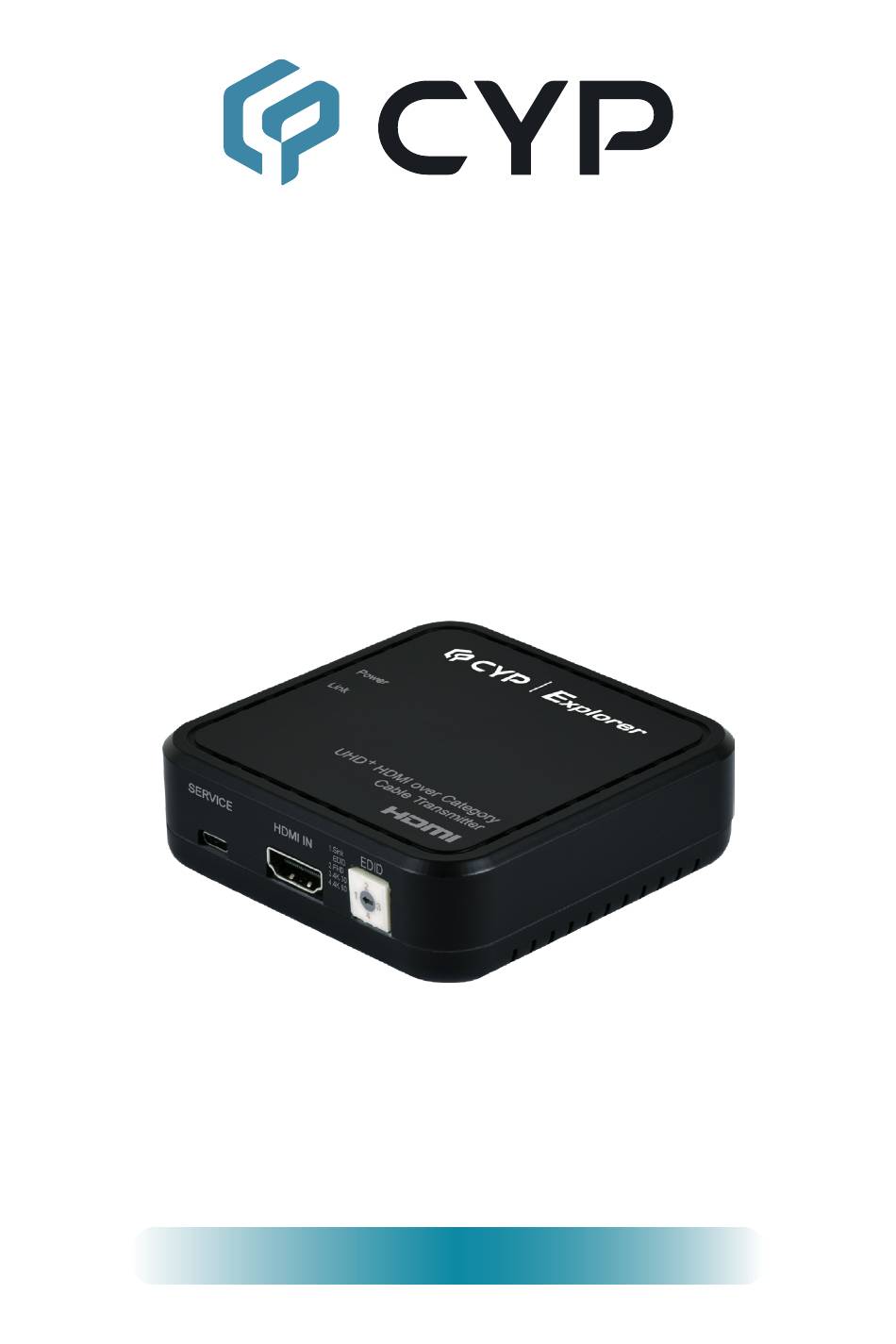

- Page 1 VEX-T1201T HDMI over Category Cable Transmitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 6.3 Top Panel ............. 5 7. -
Page 6: Introduction
1. INTRODUCTION This UHD HDMI over Category Cable Transmitter is part of an extension system which is able to extend high quality 4K HDMI video along with audio up to 60m (197ft) of standard Cat.6 network cable without signal loss or introducing delay. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • 1 HDMI input, 1 Cat.6 output, 1 HDMI bypass output • Supports HDMI input and Cat.6 output resolutions up to 4K@60Hz (4:4:4, 8-bit) •... -
Page 8: Operation Controls And Functions

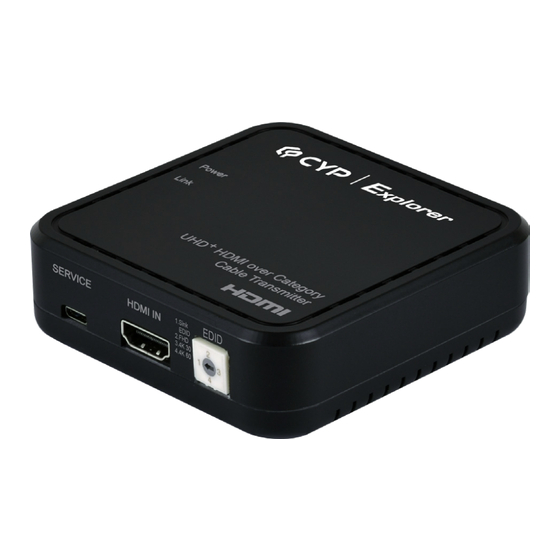

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel EDID 1.Sink SERVICE HDMI IN EDID 2.FHD 3.4K 30 4.4K 60 SERVICE Port: This port is reserved for firmware update use only. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box. -
Page 9: Rear Panel
6.2 Rear Panel CAT6 OUT Port: Connect to a compatible receiver with a single Cat.6, or better, cable for transmission of all data signals. PoC will also be supplied to a connected compatible PD receiver. Note: The PoC function is designed to send power to compatible receiver units only. -
Page 10: Top Panel
6.3 Top Panel yqmpsfs! Power Link UHD + HDMI over Category Cable Transmitter Power LED: This LED will illuminate red to indicate the unit is on and receiving power. When the unit is in update mode the LED will blink. Link LED: This LED will illuminate blue to indicate that a live source has been detected on the input port. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Monitor PC/Blu-ray Player HDMI Input Power Supply 1.Sink EDID SERVICE HDMI IN EDID 2.FHD 3.4K 30 4.4K 60 HDMI Output HDMI Output SERVICE HDMI IN IN SEL. HDMI Input Audio Extract Speakers PC/Blu-ray Player Monitor... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Cat.6 Bandwidth 10Gbps Input Ports 1×HDMI (Type-A) Output Ports 1×Cat.6 (RJ-45) 1×HDMI (Type-A) Service Port 1×USB 2.0 (Micro-B) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 85mm×26mm×85mm [Case Only]... -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI Cat.6 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 14 Input Output Supported Resolutions (Hz) HDMI HDMI Cat.6 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 ...
-
Page 15: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard Cat.6 Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard... -
Page 16: Cable Specifications
8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.6/6A/7 Bandwidth Category Examples: • HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps - HD-SDI (SMPTE 292M, 1.485Gbps) • FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps - 3G-SDI (SMPTE 424M, 2.970Gbps) -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) 8K UHD 8K Ultra-High-Definition (48Gbps max, without DSC) 8K UHD 8K Ultra-High-Definition (48Gbps max, with DSC) Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7... - Page 18 ACRONYM COMPLETE TERM WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array Ω...
- Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
