- Page 1 PU-507TX-CVGA CV / PC over HDBaseT™ Transmitter with integrated video scaling (5-Play™ inc. PoE & single LAN, up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment .......10 6.4 RS-232 Pin Definitions ......10 6.5 Remote Control ........11 6.6 RS-232 Commands .........12... -
Page 6: Introduction
1. INTRODUCTION The PU-507TX-CVGA is a HDBaseT™ Transmitter which allows transmission of PC or Composite Video sources and audio over a single CAT5e/6/7 cable to the receiver at a distance of up to 100m. The integrated scaler enables the installer to maximise the output resolution and ensure compatibility to the connected display. -
Page 7: Features
5. FEATURES Supports PC/CV scaling to a full range of HDTV or PC resolutions up to 1080p and WUXGA (Reduced Blanking) Supports uncompressed video/audio up to 10.2Gbps Supports Ethernet transmission rates up to 100 Mbps Supports uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions

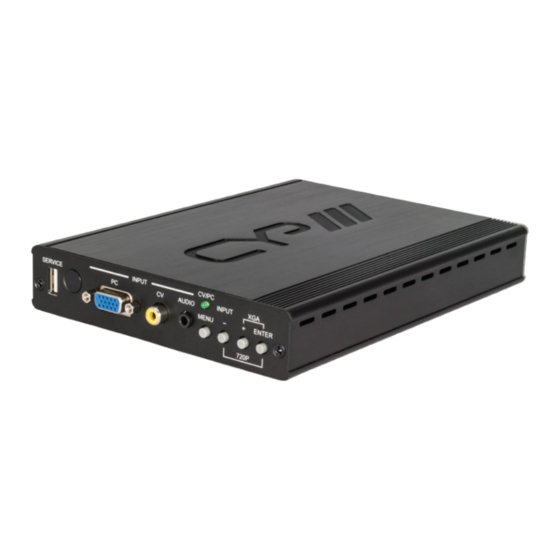

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CV/PC INPUT SERVICE INPUT AUDIO MENU ENTER 720P SERVICE: Reserved for manufacturer use only. IR Receiver window: Receives only the IR signal from the supplied remote control for this device only. PC: Connect to a PC/Laptop source device with a D-Sub 15pin cable. CV: Connect to a composite video source such as a DVD/Video player. -
Page 9: Rear Panel
6.2 Rear Panel DC 24V RS232 IN CAT5e/6 OUT Blaster Extender POWER MODE LINK Power LED: This LED will illuminate when the device is connected to an active power supply. DC 24V: Connect the 24 V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground 6.4 RS-232 Pin Definitions Define TX / RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Remote Control
6.5 Remote Control INPUT: Press this button to toggle between the CV or PC input. EXIT: Press this button to exit the menu or the current selection in the on-screen menu. INPUT MENU: Press this button to enter into the OSD menu. EXIT MENU RESET: Press this button to return the... -
Page 12: Rs-232 Commands
6.6 RS-232 Commands COMMAND DESCRIPTION S SOURCE 1~2 1=VIDEO 2=PC R SOURCE Reports the numerical equivalent for the SOURCE setting (as listed above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900... - Page 13 COMMAND DESCRIPTION S HUE 0~60 Sets the numerical value for the HUE setting ((0~60) R HUE Reports the numerical value for the HUE setting (0~60) S SATURATION 0~60 Sets the numerical value for the SATURATION setting (0~60) R SATURATION Reports the numerical value for the SATURATION setting (0~60) S SHARPNESS 0~30 Sets the numerical value for...
-
Page 14: Osd Menu
6.7 OSD Menu Layer layer Layer Layer DISPLAY OUTPUT Native 640x480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720x480P 60 1280x720P 60 1920x1080I 60 1920x1080P 60 720x576P 50... - Page 15 SIZE UNDER 2 UNDER 1 INFO MODE INFO PC(PC mode only) AUTO SETUP H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE CLOCK WXGA/XGA WXGA RESET COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 COLOR BRIGHTNESS 0~60 0~600~60 SATURATION 0~60 SHARPNESS 0~60 MIDDLE...
-
Page 16: Input Resolution Support
HIGH VOLUME 0~100 40ms DELAY AUDIO 110ms 150ms SOUND MUTE SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the default settings. 6.8 Input Resolution Support INPUT RESOLUTION NTSC/PAL VGA@60/72/75 Hz SVGA@56/60/72/75 Hz ... -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Video/DVD Player Composite Analog Video Stereo Input Input Input 1.5m 60° IR Extender IR Blaster Power Supply 60° CV/PC INPUT SERVICE INPUT AUDIO MENU ENTER 720P RS-232 DC 24V RS232 IN CAT5e/6 OUT Blaster Extender Control System POWER MODE LINK... -
Page 18: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Output Video Bandwidth 300MHz / 10.2Gbps Ethernet Speed 100 Mbps Input Ports 1×CV, 1×PC, 1×3.5mm Mini-jack (L/R) , 1×RS-232, 1×LAN, 1×IR Extender Output Ports 1×CAT5e/6, 1×IR Blaster CAT5e/6/7 Output Cable Up to 100 Meters Distance CV Supported NTSC/PAL Resolutions... -
Page 19: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Pixel clock Video Data Cable Type Range Supported Video rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 21 PU-507TX-CVGA CV / PC over HDBaseT™ Transmitter with integrated video scaling (5-Play™ inc. PoE & single LAN, up to 100m) OPERATION MANUAL...
