- Page 1 PUV-1510TX HDBaseT™ 5Play™ Transmitter (inc. PoH & single LAN, up to 100m) OPERATION MANUAL OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3. IR Cable Pin Assignment ......10 6.4. -
Page 6: Introduction
1. INTRODUCTION The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver (PD) allowing a greater flexibility in installations. -
Page 7: Features
5. FEATURES HDMI with 3D, 4K2K support, HDMI & DVI Compliant Supports CEC bypass Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232) Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9 Supports standard 48V from Transmitter (PSE) to Receiver (PD) Installation Friendly Supports HDMI Input cable distance up to 5m at 4K2K@50/60 &... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel BLASTER HDMI IN DC 48V EXTENDER DC 48V: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet. IR1 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission. -
Page 9: Rear Panel

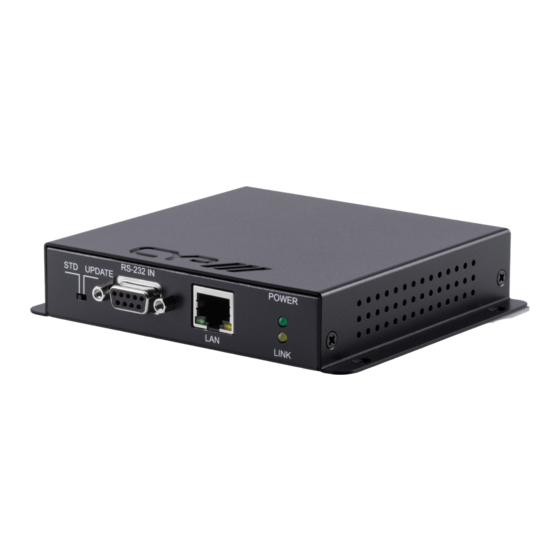

6.2 Rear Panel RS-232 IN POWER STD UPDATE LINK STD/UPDATE Switch: This switch is reserved for factory use only. RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands. LAN: Connect to an internet or network system. POWER LED: This LED will illuminate when the device is connected to a power supply. -
Page 10: Ir Cable Pin Assignment
6.3. IR Cable Pin Assignment IR Blaster Power IR Blaster Signal 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook Internet Modem or Router CAT5e/6 1.5m 60° DVD or Blu-ray Player RS-232 IR Blaster Power Supply RS-232 IN POWER STD UPDATE HDMI LINK BLASTER 60° HDMI IN DC 48V EXTENDER IR Extender IR Extender 60°... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Transmitter Inputs 1 x HDMI 1 x IR Extender 1 x RS-232 1 x LAN Outputs 1 x CAT5e/6/7 1 x IR Blaster HDMI Resolution HD: 480i~4K2K@24/25/30/50/60 & YUV_420 PC: VGA ~ WUXGA (RB) HDMI Cable Distance In: 10m/1080p@8-bit or 12-bit and 5m@4K2K CAT5e/6/7 I/O Cable... -
Page 13: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (HD Video) (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 14: Timing Support Chart
8.2 Timing Support Chart INPUT OUTPUT 640x480@60/72/75/85 800x600@56/60/72/75/85 1024x768@60/70/75/85 1280x720@60 1280x1024@60 1600x1200@60 1920x1200@60rb 3840x2160p@24/25/30 4096x2160p@24 4096x2160p@50/60(yuv_420) 480i/576i 480p/576p ... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
