EVM User's Guide: DS90UB933-Q1EVM
DS90UB933-Q1 Evaluation Module
Description
The DS90UB933-Q1 evaluation module (EVM)
provides an easy way to evaluate the operation
and performance of the DS90UB933-Q1 37.5MHz to
100MHz FPD-Link III serializer (SER). The device
translates 10 or 12 bits of LVCMOS data into a high-
speed serialized FPD-Link III interface transported
over a single 50Ω coax cable.
SNLU210C – JULY 2016 – REVISED APRIL 2024
Submit Document Feedback
Features
•
Supports 10-bit or 12-bit data transmission at up to
100MHz PCLK
•
Coax cable support
•
Parallel LVCMOS input interface
Copyright © 2024 Texas Instruments Incorporated
Description

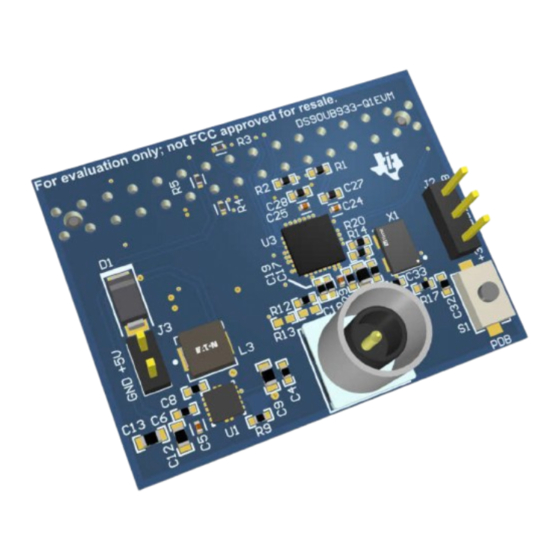

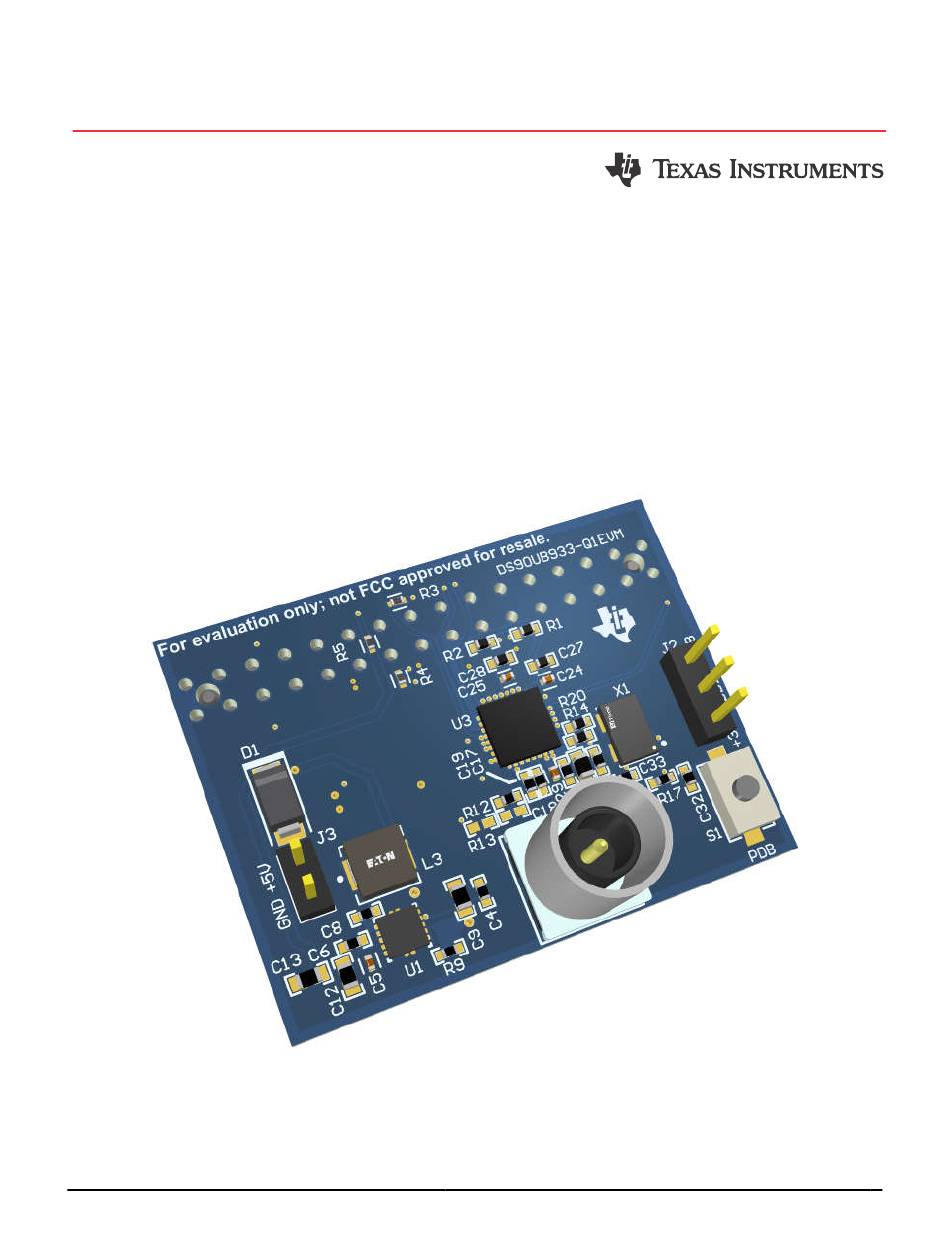

DS90UB933-Q1 Evaluation Module
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DS90UB933-Q1
Summary of Contents for Texas Instruments DS90UB933-Q1
- Page 1 The DS90UB933-Q1 evaluation module (EVM) • Supports 10-bit or 12-bit data transmission at up to provides an easy way to evaluate the operation 100MHz PCLK and performance of the DS90UB933-Q1 37.5MHz to • Coax cable support 100MHz FPD-Link III serializer (SER). The device •...
-
Page 2: Kit Contents
FPD-Link deserializer through a coax cable. The EVM is designed to provide a compact and flexible platform for the evaluation of the DS90UB933-Q1 device with multiple header options for I2C and GPIO access and integrated PoC. - Page 3 47nF capacitors in series with 50Ω termination. Figure 2-2. Serial Link Connection Using a Single 50Ω Coaxial Cable 2.3.3 LVCMOS Input Connector Description (on DS90UB933-Q1 Board) J1 – GPO0, GPO1, CLK OUT, CLK IN, DIN[11:0], HSYNC, VSYNC, PCLK IN are the input pins for the LVCMOS interface on Serializer board.
- Page 4 2.4 Operation with Deserializer Make sure jumper is placed between positions 2 and 3 (VDDIO and +1V8) on J2. 1. Connect the DS90UB933-Q1 and Deserializer board using a coax cable. 2. Make sure power over coax is configured with 5V<=V <=9V.
- Page 5 The default 7-bit I C address of DS90UB933-Q1 is set to 0x58 (101 1000) using a good resistor divider on ID[x] pin. Change resistor R15 and R16 to change the address of this device. Refer to the device data sheet for more information.
- Page 6 Figure 3-2. Tools If there is already a device listed in the menu, then select and click Remove. Figure 3-3. Device Menu DS90UB933-Q1 Evaluation Module SNLU210C – JULY 2016 – REVISED APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 7 Add. If users plan on using a deserializer to program the DS90UB933-Q1EVM, then select the deserializer name if the deserializer is connected instead. Figure 3-4. EVM List SNLU210C – JULY 2016 – REVISED APRIL 2024 DS90UB933-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 8 4k7 - Exte rna l os cilla tor 4.70k 0.1uF KSR221GLFS VDDIO OSC_66MHz 10.0k SiT8924BA-33-18E-66.666666 0.1uF Figure 4-1. DS90UB933-Q1 Serializer DS90UB933-Q1 Evaluation Module SNLU210C – JULY 2016 – REVISED APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 9 S YNC/MODE 100k LP5912-1.8DRVR LM53601LQDSXRQ1 VDDIO B120-13-F 1µF +3V3 +1V8 TSW-102-07-G-S TSW-103-07-G-S Figure 4-2. Power to Serializer Board and Header SNLU210C – JULY 2016 – REVISED APRIL 2024 DS90UB933-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 10 Hardware Design Files www.ti.com 4.2 PCB Layout 4.2.1 DS90UB933-Q1EVM Serializer Board Layout Figure 4-3. Composite (Top View) Figure 4-4. Top Layer DS90UB933-Q1 Evaluation Module SNLU210C – JULY 2016 – REVISED APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 11 Hardware Design Files Figure 4-5. Signal 1 Layer Figure 4-6. Signal 2 Layer SNLU210C – JULY 2016 – REVISED APRIL 2024 DS90UB933-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 12 Hardware Design Files www.ti.com Figure 4-7. Bottom Layer Figure 4-8. Composite (Bottom View) DS90UB933-Q1 Evaluation Module SNLU210C – JULY 2016 – REVISED APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 13 RES, 33, 5%, 0.063 W, AEC-Q200 Grade 0, 0402 Vishay-Dale CRCW040233R0JNED R15, R17, R18, R21 RES, 10.0 k, 1%, 0.063 W, AEC-Q200 Grade 0, 0402 Vishay-Dale CRCW040210K0FKED SNLU210C – JULY 2016 – REVISED APRIL 2024 DS90UB933-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 14 Texas Instruments DS90UB933TRTVRQ1 2MP/30fps Cameras, RTV0032A (WQFN-32) 66.666666MHz XO (Standard) LVCMOS, LVTTL SiTime SiT8924BA-33-18E-66.666666 Oscillator 1.8V Enable/Disable 4-SMD, No Lead DS90UB933-Q1 Evaluation Module SNLU210C – JULY 2016 – REVISED APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 15: Additional Information
• Changed BOM to include DNP components and also changed 57.6Ω termination resistor on negative (-) DOUT terminal to 49.9Ω...........................13 SNLU210C – JULY 2016 – REVISED APRIL 2024 DS90UB933-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 16 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 17 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 18 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 19 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 20 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 21: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
