DS90UB96X-Q1EVM User's Guide

User's Guide

Literature Number: SNLU177

July 2016

Table of Contents

Need help?

Do you have a question about the DS90UB96X-Q1EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DS90UB96X-Q1EVM

Page 1 DS90UB96X-Q1EVM User's Guide User's Guide Literature Number: SNLU177 July 2016...
Page 2: Table Of Contents
Termination Device ......................1.14 Typical Test Setup ....................1.15 Equipment References ......................1.16 Cable References ......................1.17 Bill of Materials ......................... PCB Schematics ........................Board Layout Contents SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 3 3-5. Layer 3 ........................3-6. Layer 4 ........................3-7. Layer 5 ......................3-8. Bottom Layer 6 ....................... 3-9. Bottom solder ......................3-10. Bottom Overlay SNLU177 – July 2016 List of Figures Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 4 1-15. Mode SW-DIP4 - S1 ....................1-16. Control SW-DIP2 - SW1 ......................... 1-17. LEDs ..........1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 ..........1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 List of Tables SNLU177 – July 2016 Submit Documentation Feedback...
Page 5: Ds90Ub96X-Q1Evm User's Guide

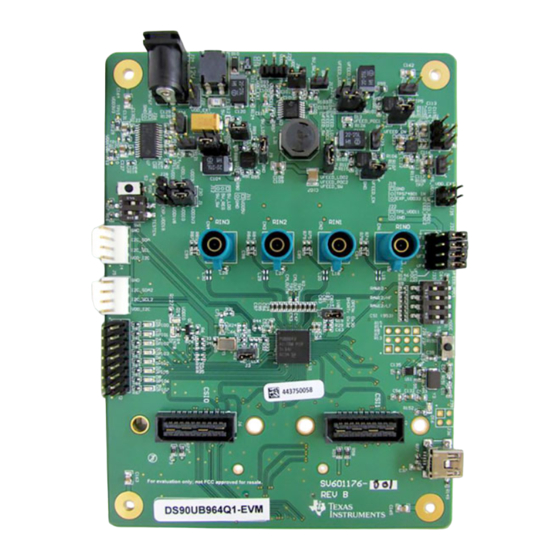

DS90UB96X-Q1EVM User's Guide General Description The Texas Instruments DS90UB96X-Q1EVM evaluation module (EVM) is a functional board design for evaluating the FPD-Link III Deserializer to MIPI CSI-2 ADAS (Advanced Driver Assistance Systems) Hub. This kit will demonstrate the functionality and operation of the DS90UB96X-Q1 family of chipsets. The information provided in this document can be applied to devices such as DS90UB964-Q1.
Page 6: Features
C with Fast-mode Plus up to 1 Mbps • Flexible GPIOs for camera sync and functional safety • Single +12V power supply for EVM DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 7: System Requirements
System Requirements www.ti.com System Requirements The major components of the DS90UB96X-Q1EVM are: • DS90UB964-Q1 • On-board Power-over-Coax (POC) interface • Four Fakra coax connectors for digital video, power, control and diagnostics • Samtec QSH type connectors on CSI-2 interfaces •...
Page 8: Typical Configuration
Serializer Sensor FPD-Link III Power Over Coax Cable Head Unit, ECU (MIPI CSI-2) DS90UB96X Application Display ADAS HUB Processor (I2C) Figure 1-2. Typical Configuration DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 9: Quick Start Guide
Main Power J20.1 +12V Single +12VDC (nominal) power connector that supplies power to the entire board. 1.1V ±5% J22.1 (Optional) +1.1V Alternative to Main Power SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 10: Power Over Coax Interface
Alternative to Main Power 1.8.2 Power Over Coax Interface The DS90UB96X-Q1EVM offers four power over coax interfaces (POC) to connect cameras through a coaxial cable with FAKRA connectors. Power is delivered on the same conductor that is used to transmit video and control channel between the host and the camera.
Page 11: Mipi Csi-2 Output Signals
Short J32.7 & J33.4: VFEED_POC2 1.8.3 MIPI CSI-2 Output Signals Provided on the DS90UB96X-Q1EVM, J6 and J7 are Samtec QSH-type connectors that can be mated with a matching QTH type connector on the top. This Samtec connector provides a means to route CSI-2 signals out of the DS90UB96X-Q1.
Page 12: Mipi Csi-2 (Tx Port 1) Output Signals - J7 Pinout
(PDB) CSI1_D1_N SPI_MOSI_1 CSI1_D2_P (GPIO0 or GPIO3) SPI_SCLK_1 CSI1_D2_N (GPIO1 or GPIO4) SPI_CSn_1 CSI1_D3_P (GPIO2 or GPIO5) CSI1_D3_N VDD_3V3 VDD_3V3 VDD_3V3 VDD_3V3 VDD_1V8 VDD_1V8 DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 13: Fpd-Link Iii Signals
C Interface A standalone external I C host can connect via J4, J5 for programming purposes. Examples of external C host controllers are Texas Instruments USB2ANY and Total Phase Aardvark I C/SPI host adapter (Total Phase Part#: TP240141). Optional access to I C signals are also available via CSI-2 connectors J6, J7, or J31.
Page 14: Control Interface
J2.10 GPIO4 General Purpose Input/Output 4 J2.12 GPIO5 General Purpose Input/Output 5 J2.14 GPIO6 General Purpose Input/Output 6 J2.16 GPIO7 General Purpose Input/Output 7 DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 15: Enable And Reset
• External control option: A push-button (S2) or SW1 position 2 is available for the manual control of the PBD signal. SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 16: Alp Software Setup
“Launch Analog LaunchPAD” is checked, but it will not be useful until the USB driver is installed and board is attached. Power the DS90UB96X-Q1 EVM board with a 12 VDC power supply. DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 17: Startup - Software Description
Make sure all the software has been installed and the hardware is powered on and connected to the PC. Execute “Analog LaunchPAD” shortcut from the start menu. The default start menu location is under All Programs > Texas Instruments > Analog LaunchPAD vx.x.x > Analog LaunchPAD to start MainGUI.exe. Figure 1-5. Launching ALP The application should come up in the state shown in the figure below.
Page 18: Information Tab
After selecting the DS90UB96X, the following screen shown in Figure 1-7 should appear. Figure 1-7. Follow-up Screen 1.10.5 Information Tab The Information tab is shown below. Figure 1-8. ALP Information Tab DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 19: Registers Tab
ALP Software Setup www.ti.com 1.10.6 Registers Tab The Register tab is shown in Figure 1-9. Figure 1-9. ALP Registers Tab SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 20: Registers Tab - Address 0X00 Selected
Address 0x00 selected as shown in Figure 1-10. Note that the “Value:” box, , will now show the hex value of that register. Figure 1-10. ALP Device ID Selected DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 21: Registers Tab - Address 0X00 Expanded
(indicating a “1”) or unchecking to remove the check mark (indicating a “0”). Click the “Apply” button to write to the register, and “refresh” to see the new value of the selected (highlighted) register. The box toggles on every mouse click. SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 22: Scripting Tab
# To configure GPIO1 to bring out Lock for Port1, print "configure GPIO1 to bring out Lock for Port1" board.WriteReg(0x11,0x85) time.sleep(0.1) # To configure GPIO2 to bring out Lock for Port2, DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 23 "FPD_MODE" board.WriteReg(0x6d,0x7f) # 913A 10-bit mode time.sleep(0.1) ######################################################### # 964_RX1_init_CSI0.py print "CSI_PORT_SEL" board.WriteReg(0x32,0x01) # CSI0 select time.sleep(0.1) print "CSI_PLL_CTL" board.WriteReg(0x1f,0x02) # CSI0 800mbps SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 24 # CSI_EN & CSI0 4L time.sleep(0.1) print "FWD_PORT" board.WriteReg(0x20,0xb0) # forwarding of RX 2 to CSI0 time.sleep(0.1) print "FPD3_PORT_SEL" board.WriteReg(0x4c,0x24) # RX_PORT2 time.sleep(0.1) print "enable pass throu" DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 25 "SER_ALIAS_ID 0x5c value ", hex(board.ReadReg(0x5c)) time.sleep(0.1) board.WriteReg(0x5d,0x60) # print "SlaveID[0] 0x5d value ", hex(board.ReadReg(0x5d)) time.sleep(0.1) board.WriteReg(0x65,0x68) # print "SlaveAlias[0] 0x65 value ", hex(board.ReadReg(0x65)) time.sleep(0.1) SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 26 # time.sleep(0.1) print "YUV422 DT" board.WriteReg(0x70,0xdf) # VC3 and CSI0 datatype 0x1f yuv422_10b time.sleep(0.1) print "FPD_MODE" board.WriteReg(0x6d,0x7f) # 913A 10-bit mode time.sleep(0.1) ######################################################### DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 27: Troubleshooting Alp Software
USB2ANY/Aardvark Setup found under the tools menu. Figure 1-13. USB2ANY Setup Highlight the incorrect profile in the Defined ALP Devices list and press the remove button. SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 28: Remove Incorrect Profile
Find the correct profile under the Select a Daughter Board list, highlight the profile and press Add. Figure 1-15. Add Correct Profile Select Ok and the correct profile should now be loaded. DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 29: Finish Setup
Troubleshooting ALP Software www.ti.com Figure 1-16. Finish Setup SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 30: Alp Does Not Detect The Evm
When the ALP is operating in demo mode there is a “(Demo Mode)” indication in the lower left of the application status bar as shown below. DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 31: Alp In Demo Mode
After demo mode is disabled, the ALP software will poll the ALP hardware. The ALP software will update and have only “DS90UB96X” under the “Devices” pull down menu. SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 32: Typical Connection And Test Equipment
FPD-Link III + PoC Figure 1-21. Typical Test Setup for Application The picture below shows a typical test set up using a video generator and logic analyzer. DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 33: Typical Test Setup For Evaluation
DS90UB96X EVM Board MIPI CSI-2 Contents of Demo Kit FPD-Link III + PoC Logic Analyzer / Oscilloscope Figure 1-22. Typical Test Setup for Evaluation SNLU177 – July 2016 DS90UB96X-Q1EVM User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 34: Equipment References
University of New Hampshire InterOperability Laboratory (UNH-IOL) www.iol.unh.edu/services/testing/mipi/fixtures.php Aardvark I C/SPI Host Adapter Part Number: TP240141 www.totalphase.com/products/aardvark_i2cspi 1.16 Cable References FAKRA coaxial cable: www.leoni-automotive-cables.com Rosenberger FAKRA connector: http://www.rosenberger.com/en/products/automotive/fakra.php DS90UB96X-Q1EVM User's Guide SNLU177 – July 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 35: Bill Of Materials
Bill of Materials www.ti.com 1.17 Bill of Materials Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 Item Designator Part Number Manufacturer Description SV601176 Printed Circuit Board C1, C6, C12, C20, C26, CL21A106KAFN3NE Samsung Electro- CAP, CERM, 10 µF, 25 V,...
Page 36 Bill of Materials www.ti.com Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 (continued) Item Designator Part Number Manufacturer Description C106 T495D107M016ATE100 Kemet CAP, TA, 100uF, 16V, +/- 20%, 0.1 ohm, SMD C107 GRM32ER61C476ME15L MuRata CAP, CERM, 47uF, 16V, +/-20%, X5R, 1210...
Page 37 Bill of Materials www.ti.com Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 (continued) Item Designator Part Number Manufacturer Description L13, L15, L23, L25 1008PS-472KLB Coilcraft Inductor, Shielded, Ferrite, 4.7 µH, 0.7 A, 0.35 ohm, SMD L14, L16, L24, L26 MSS7341T-104MLB...
Page 38 Bill of Materials www.ti.com Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 (continued) Item Designator Part Number Manufacturer Description R77, R147 CRCW040233R0JNED Vishay-Dale RES, 33 ohm, 5%, 0.063W, 0402 R78, R79, R86, R87 CRCW0402200RJNED Vishay-Dale RES, 200, 5%, 0.063 W,...
Page 39 Bill of Materials www.ti.com Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 (continued) Item Designator Part Number Manufacturer Description TPS767D318PWP Texas Instruments Dual Output LDO, 1 A, Fixed 1.8, 3.3 V Output, 2.7 to 10 V Input, 28-pin HTSSOP (PWP), -40 to 125 degC, Green (RoHS &...
Page 40 Bill of Materials www.ti.com Table 1-18. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-001 (continued) Item Designator Part Number Manufacturer Description R42, R46 CRCW06030000Z0EA Vishay-Dale RES, 0 ohm, 5%, 0.1W, 0603 R130, R131, R132, R133, ERJ-1GE0R00C Panasonic RES, 0, 5%, 0.05 W,...
Page 41: Bom For Ds90Ub96X-Q1Evm Assembly Variant Sv601176-002
Bill of Materials www.ti.com Table 1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 Item Designator Part Number Manufacturer Description SV601176 Printed Circuit Board C1, C6, C12, C20, C26, CL21A106KAFN3NE Samsung CAP, CERM, 10 µF, 25 V, C31, C42 +/- 10%, X5R, 0805...
Page 42 Bill of Materials www.ti.com Table 1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 (continued) Item Designator Part Number Manufacturer Description C110 GRM155R71H332KA01D MuRata CAP, CERM, 3300pF, 50V, +/-10%, X7R, 0402 C113, C123, C124, C128 GRM21BR71C475KA73L MuRata CAP, CERM, 4.7uF, 16V, +/-10%, X7R, 0805...
Page 43 Bill of Materials www.ti.com Table 1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 (continued) Item Designator Part Number Manufacturer Description L14, L16, L24, L26 MSS7341T-104MLB Coilcraft Inductor, Shielded Drum Core, Ferrite, 100 µH, 0.7 A, 0.28 ohm, SMD L17, L18, L27, L28...
Page 44 Bill of Materials www.ti.com Table 1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 (continued) Item Designator Part Number Manufacturer Description R89, R95, R98, R103, CRCW040210K0FKED Vishay-Dale RES, 10.0k ohm, 1%, R107, R154 0.063W, 0402 R91, R100, R111 CRCW040229K4FKED Vishay-Dale RES, 29.4 k, 1%, 0.063 W,...
Page 45 Bill of Materials www.ti.com Table 1-19. BOM for DS90UB96X-Q1EVM Assembly Variant SV601176-002 (continued) Item Designator Part Number Manufacturer Description TPS767D318PWP Texas Instruments Dual Output LDO, 1 A, Fixed 1.8, 3.3 V Output, 2.7 to 10 V Input, 28-pin HTSSOP (PWP), -40 to 125 degC, Green (RoHS &...
Page 46: Pcb Schematics
Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: Cover Sheet_ANSI-B.SchDoc Size: http://www.ti.com...
Page 47 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q__HUB.SchDoc Size: http://www.ti.com...
Page 48 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q_CONNECTOR.SchDoc Size: http://www.ti.com...
Page 49 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q_LED.SchDoc Size: http://www.ti.com...
Page 50 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q_POC.SchDoc Size: http://www.ti.com...
Page 51 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q_POWER.SchDoc Size: http://www.ti.com...
Page 52 Version control disabled Assembly Variant: [No Variations] Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: DS90UB964Q_MSP430.SchDoc Size: http://www.ti.com...
Page 53: Board Layout
Chapter 3 SNLU177 – July 2016 Board Layout Figure 3-1. Top Overlay SNLU177 – July 2016 Board Layout Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 60 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
Page 61 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 62 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けていないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・インスツルメンツ株式会社東京都新宿区西新宿６丁目２４番１号西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
Page 63 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
Page 64 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
Page 65 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments DS90UB964-Q1EVMTDA DS90UB964-Q1EVM...
