NewTek NT-77HSDC07 Instruction Manual page 26

– Wall mount for remote control - 1 pc.
– RC unit battery – 2 pcs.
– Installation kit (gooseneck piece, corrugated drain tube, rubber
seal ring, 4 ring nuts, length of heat insulation, 6 self-tapping
screws, 6 dowels, plug) – 1 set
– User Manual – 1 pc.
– Fine filters:
• Silver-ion antibacterial filter - 1 pc.
• Biofilter* - 1 pc.
• Component filter* - 1 pc.
• Charcoal (carbon) filter - 1 pc.
*optional
3. APPLIANCE DECRIPTION

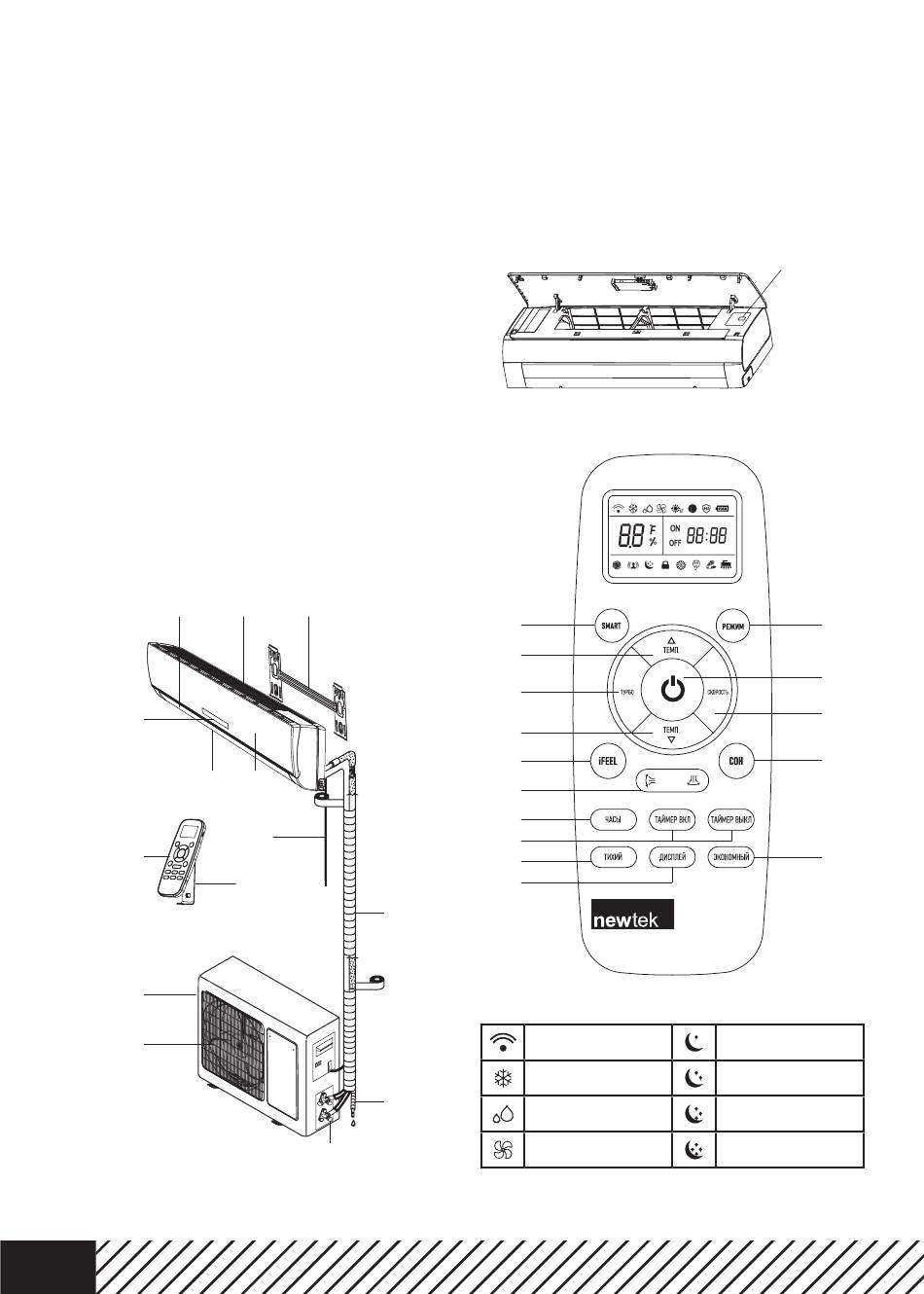

AIR CONDITIONER DESIGN
1. Air outlet
2. Air inlet
3. Front panel
4. Display
5. Flaps
6. Power cord
7. Remote control unit
8. Wall mount for RC
9. Drain tube
10. Coolant / liquid tube
11. Cutoff valve
12. Indoor unit mounting plate
1
4
5
7
2
1
25
2 12
3
6
8
10
9
11
4. CONTROLLING THE APPLIANCE
MANUAL START FUNCTION
If the RC unit has been lost or its batteries are depleted, you can
use the manual start function.
To do this, carefully lift the front panel of the indoor unit and
short-press the manual start button. The air conditioner will start
operating in the AUTO mode. Press the button again to turn the
appliance off.
REMOTE CONTROL UNIT
5
2
3
2
7
9
10
11
12
13
RC UNIT BUTTON FUNCTIONS
Signal reception
Cooling mode
Drying mode
Ventilation mode
Manual start button
6
1
4
8
14
Sleep 1 mode
Sleep 2 mode
Sleep 3 mode
Sleep 4 mode
