Jaypro Sports 996 Manual

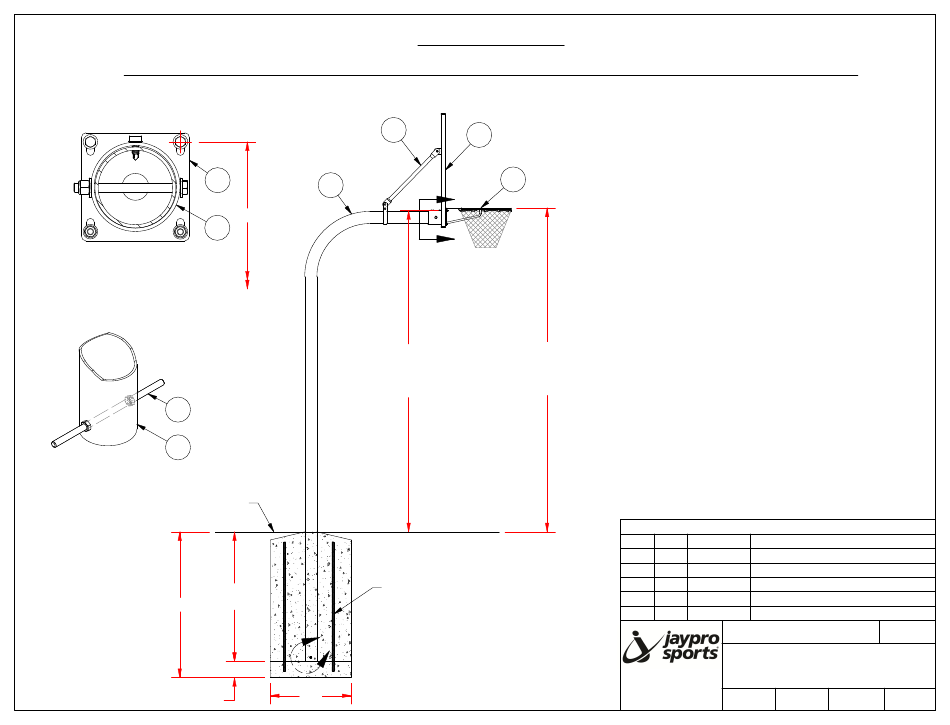

4 1/2" ROUND POST 4 FOOT EXTENSION, DIRECT MOUNT
E
119"
A
SECTION A-A
E
A
DETAIL B
PLAYING
SURFACE
48"
REF
54"
6"
MODEL 996
B
C
A
A
A
119"
CENTER OF
TOP MOUNTING HOLE
TO PLAYING SURFACE
RECOMMEND 3/4 in x 48 in (6 PLACES)
REBAR TO BE TIED TOGETHER
(TO BE SUPPLIED BY INSTALLER)
B
30"
IMPORTANT NOTICE:
1) EQUIPMENT SHOULD BE CHECKED REGULARLY
FOR PROPER CONNECTING HARDWARE AND
STRUCTURAL INTEGRITY. REPLACE ANY DAMAGED
OR MISSING HARDWARE IMMEDIATLEY.
2) USE OF THE EQUIPMENT OTHER THAN INTENDED,
D MAY BE HAZARDOUS.
3) ALTERATION OR MODIFICATION OF THIS
EQUIPMENT MAY BE HAZARDOUS AND RESULT IN
INJURY. FOR REPAIR OR REPLACEMENT, CONTACT
JAYPRO SPORTS.
* ACTUAL DIMENSION MAY VARY
DEPENDING ON CHOICE OF
BACKBOARD USED.
CHECK LOCAL BUILDING CODES
BEFORE STARTING THE FOOTING,
AS BUILDING CODES MAY VARY.
10'-0"
LOCAL BUILDING CODES SHOULD
TOP OF GOAL
BE ADHERED TO IF REQUIREMENTS
TO PLAYING
ARE GREATER THAN THOSE
SURFACE
OUTLINED HERE.
NOTES:
1) BACKBOARD VARIES PER CUSTOMER ORDER.
2) GOAL VARIES PER CUSTOMER ORDER.
3) HARDWARE KIT 996BK INCLUDES BRACES,
BRACKETS & BAND CLAMP FOR ALL UNITS.
ITEM QTY
A 1
B 1
C 1
D 1
E 1
976 Hartford Turnpike
Waterford, CT 06385 USA
(800)243-0533 Fax: (800)988-3363
www.jaypro.com
Typical Parts List for 996 Units
PART # DESCRIPTION
996U 4 1/2" OD GOSENECK UPRIGHT
996BK HARDWARE KIT
SEE NOTE 1 BACKBOARD
SEE NOTE 2 GOAL
NWG50-K HUB KIT w/ HARDWARE
MODEL NUMBER:
996
PRODUCT NAME:
996 INSTALLATION INSTRUCTIONS
DATE: REV: DRAWN BY:
1/29/2024 A Moune T.
CHECKED BY:
WVB
SHEET:
1 OF 7
