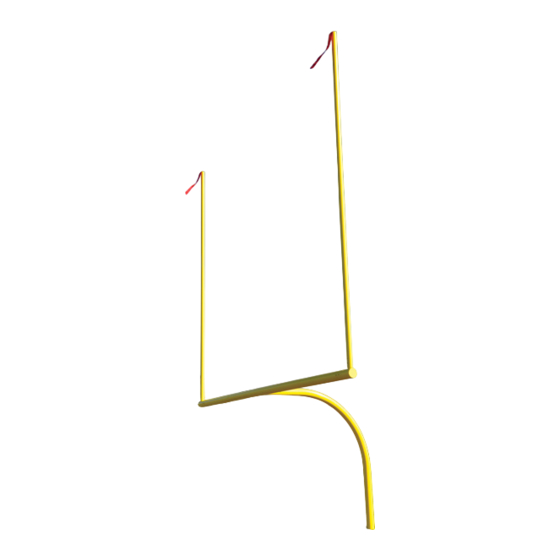

Jaypro Sports FBGP-600 Series Manual

Football goal
Hide thumbs

Advertisement

Quick Links

Download this manual

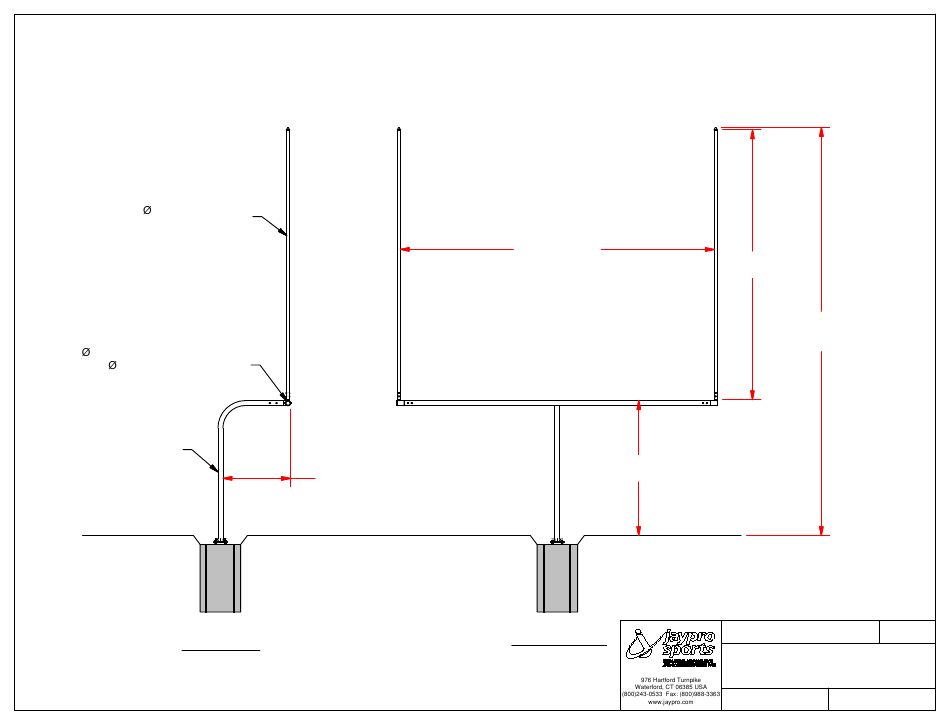

FBGP-600
FOOTBALL GOAL
SPECIFICATIONS
2 3/8" x 3/8" WALL
ALUMINUM UPRIGHTS
4 1/2" x 23'-4" HIGH SCHOOL
4 1/2" x 18'-6" COLLEGE
GALVANIZED STEEL CROSSBAR
GALVANIZED STEEL
GOOSENECK
SIDE VIEW
60"
OFFSET FROM
EDGE OF UPRIGHT
TO
OUTSIDE EDGE OF
CROSSBAR
23'-4" INSIDE
HIGH SCHOOL
(REF)
18'-6" INSIDE
COLLEGE
(REF)
10'-0"
TO CROSSBAR
PLAYING SURFACE
FRONT VIEW
20'-0"
UPRIGHTS
30'-3"
OVERALL
HEIGHT
MODEL NUMBER:
CHECKED BY:
FBGP-600
WVB
PRODUCT NAME:
OFFICIAL 5FT OFFSET FOOTBALL
GOAL POST w/ LEVELING PLATE
EFFECTIVE DATE:
DRAWN BY:
5/25/2017
Moune T.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FBGP-600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jaypro Sports FBGP-600 Series

Summary of Contents for Jaypro Sports FBGP-600 Series

  • Page 1 FBGP-600 FOOTBALL GOAL SPECIFICATIONS 23'-4" INSIDE 2 3/8" x 3/8" WALL HIGH SCHOOL ALUMINUM UPRIGHTS (REF) 20'-0" 18'-6" INSIDE UPRIGHTS COLLEGE (REF) 30'-3" OVERALL HEIGHT 4 1/2" x 23'-4" HIGH SCHOOL 4 1/2" x 18'-6" COLLEGE GALVANIZED STEEL CROSSBAR GALVANIZED STEEL 60"...
  • Page 2 360 ft apart inside to inside. The distance from the end line to centerline of the bottom upright (gooseneck) is approximately 62 1/4” for the FBGP-600 series. See Figure 1 2) The footing depth is 5’-8”. Concrete should be a minimum 4000-psi mix. For installation see Figure 2.
  • Page 3 FOOTING INSTALLATION 1) Excavate the footing hole to the appropriate dimensions as shown in Figure 2. (See Figure 1 for locating the footing.) Pour the footing, using minimum 4,000 psi mix, to within 4” from ground level. 2) Assemble anchor rod to leveling plate by installing 7/8”-9 hex nut onto anchor rod and engaging 7”...
  • Page 4                             Insert crossbar into gooseneck. Set crossbar depth so the front edge of the crossbar is inline with the inside edge (field side) of the end line. Once the crossbar is level, mark (by using a center punch) and drill the holes through the gooseneck.
  • Page 5 Tightening ½” bolts between crossbar and gooseneck:   Top Upright Installation: Place the end fitting in the end of the crossbar and plumb to level in two directions – front to back and side to side. Mark the holes using a center punch. IMPORTANT: It is important that the holes in the end fitting be properly placed to ensure that the end fittings are square and the uprights are parallel to each other.
  • Page 6   Drill End Fitting: PLUM BEFORE  DRILLING  Insert the end fitting in crossbar and loosely install the appropriate hardware. Verify that the vertical member is square to the crossbar and plumb. Attach top upright cap: Install wind streamers (if purchased) by drilling a 5/16” diameter in the tip of the cap. Assemble wind streamers as shown below.
  • Page 7 Install Top Upright:    PLUM BEFORE DRILLING LOWER HOLE PLUM BEFORE DRILLING LOWER HOLE  Lift one upright onto the insert on the end Fitting.  Install the 3/8” hardware through the upright and predrilled hole in end fitting insert. ...
  • Page 8   Once complete, repeat on the other side. After both goalposts are installed use yellow rustoluem to paint all of the bolt heads and all of the nuts. This will give the fasteners an extra layer of protection and it will give the goalpost a finished look, and also touch up any scratches.
  • Page 9 FBGP-600 FOOTBALL GOAL FOOTING SPECIFICATIONS NOTE: 1) FRONT EDGE OF GOAL POST CROSSBAR IS TO LINE UP WITH INSIDE EDGE OF ENDLINE. INSIDE EDGE OF 2) CENER OF GOOSENECK UPRIGHT IS TO BE 62 1/4" ENDZONE (SEE NOTE) FROM INSIDE EDGE OF ENDLINE. 360'-0"...
  • Page 10 FBGP-600 ITEM PART # DESCRIPTION FOOTBALL GOAL FBGP601 ANCHOR ROD 7/8 -9 x 18 FOOTING INSTALLATION HN5017 LOCK NUT 7/8 -9 HW5003 STANDARD FLAT WASHER 7/8 HN5020 HEX NUT 7/8 -9 FBGP602 LEVELING PLATE GOOSENECK 10 11 12" TYP 62 1/4" OFFSET FROM 12 11 CENTER OF UPRIGHT...
  • Page 11 FBGP-600 FOOTBALL GOAL ASSEMBLY PARTS LIST ITEM PART # DESCRIPTION HS5119 Bolt-HX HD -13x5 -13x6 ½ HS5171 Bolt-HX HD HN268 -13 LOCK NUT HW2044 FLAT WASHER HS1616 Bolt-3/8 -16x2 HN1230 3/8 -16 LOCK NUT HW2047 3/8 FLAT WASHER CROSSBAR FIGURE 3 END FITTING DETAIL B GOOSENECK...
