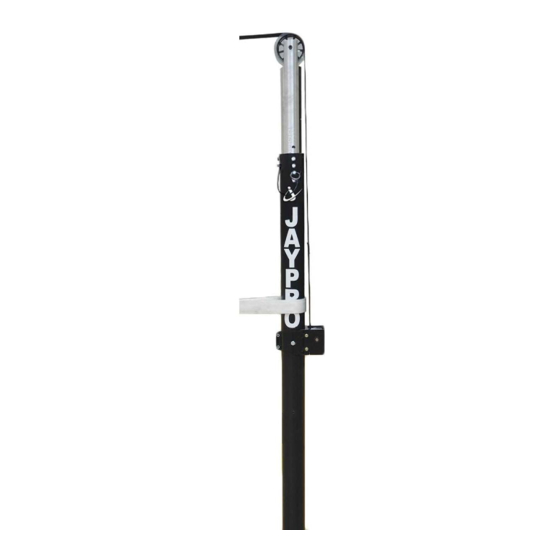

- Page 1 -- PVB-5500 -- Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Page 1 of 7...
- Page 2 PVB-5500 PARTS LIST (QTY: SINGLE UNIT) ITEM IMAGE DESCRIPTION STANDARD UPRIGHTS P/N: PVB-55U VOLLEYBALL WINCH P/N: PVBWINCH VOLLEYBALL FLEX NET P/N: PVBN-6 VOLLEYBALL ANTENNA P/N: VBA-4 ANCHOR STRAP P/N: PVB-604 WINCH HARDWARE KIT: 3/8”-16 x 4 1/4" BUTTON HEX SCREW 1 ea 3/8”...
- Page 3 These instructions assume that the appropriate ground sleeves have been correctly installed: • The PVB-5500 will fit most 2’’ inner diameter ground sleeves. • The inside bottom surface of the ground sleeves must be at least 8” below floor level.
- Page 4 Upright Assembly: WARNING: Uprights are heavy. Do not attempt to lift or install without assistance. 1. Install each upright into the ground sleeves. 2. Follow instructions included with winch to set the winch clamp to the correct upright diameter (3-1/2”). 3.
- Page 5 5. Install the anchor strap to the upright without the winch (Figure 6 2). 3/8” ACORN NUT HN809 PVB-55U STANDARD UPRIGHTS 3/8”-16 x 3 1/2" BUTTON HEX SCREW HS5201 PVB-604 ANCHOR STRAP 3/8” SPACER HM6347 6. Set the height of the uprights using the installed height adjust pin (Figure 6 3). WARNING: Do not attempt to remove the height adjuster pin if the net is under tension.
- Page 6 7. Attach one end of net to anchor strap, then attach other end to winch strap (Figure 6 4). PVB-55U STANDARD UPRIGHTS 8. Adjust the length of the anchor strap as necessary to center net on court. ***The net will stretch ~6 – 8 inches when tension is applied so you must factor this in before applying tension when centering the net.
- Page 7 Screws and nuts If you require additional information or support maintaining your volleyball system, please contact the Jaypro Sports customer support team, Monday through Friday, 8:30AM to 5:00 PM (EST), at 1-800-243- 0533. NCAA and NFHS rules require that the upright standards must be installed at least 3’3”...
