Jaypro Sports N24GB Installation And Maintenance Manual

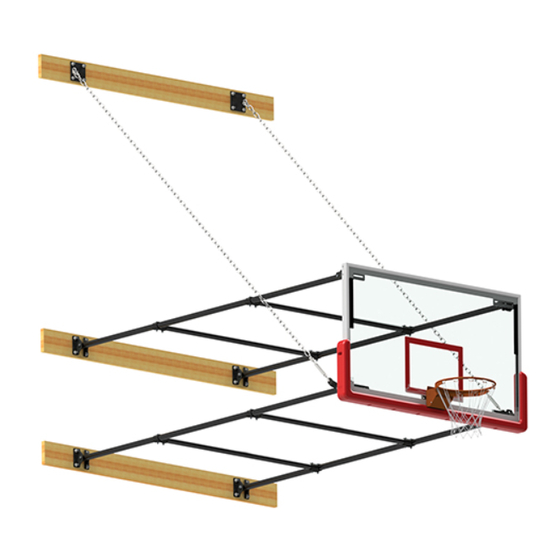

Stationary backstop system
Hide thumbs

Advertisement

Quick Links

Download this manual
N24GB / N46GB / N68GB / N810GB / N1012GB
Stationary Backstop System
Installation and Maintenance Manual
Call Jaypro Sports at 1-800-243-0533 during
regular business hours for technical support.
www.jaypro.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the N24GB and is the answer not in the manual?

Questions and answers

Related Manuals for Jaypro Sports N24GB

Summary of Contents for Jaypro Sports N24GB

  • Page 1 N24GB / N46GB / N68GB / N810GB / N1012GB Stationary Backstop System Installation and Maintenance Manual Call Jaypro Sports at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com...

  • Page 2: Important Notes

    2. Wall structure must be capable of supporting the entire load of the backstop and accessories, as well as the additional loading caused by an individual slam dunking and hanging on the rim. Jaypro Sports is not responsible for the wall structure or determining if the wall structure can support the backstop. Consult an Architect or Structural Engineer.
  • Page 3 If this approach is necessary, contact Jaypro Sports to design the attachments. Be ready to supply photos and dimensions of the ceiling structure.

  • Page 4: Unpacking And Verification

    FRAME KIT FOR 10' TO 12' FOB WOOD-KT# HORIZONTAL OR VERTICAL WOOD STRINGER KIT N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 5 PIPE CLAMP TEE FITTING 1.90" TO 1.90" XBAR INTERNAL BRACE PIPE - 63-3/8" LONG N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 6 2" inward from the closest side of the stringer. Use a repeated patten throughout and locate the anchors close to the attachment fittings. Refer to Figure 1 as an example for anchor locations. N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 7 Play attention to the orientation of the holes to be drilled. The accuracy of the FOB is dependent on the accuracy of the cutting and drilling. N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 8 32 1/4 31 1/4 4'-0" 33 1/4 32 1/4 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC. ALL RIGHTS RESERVED...
  • Page 9 45 degrees or greater. 6'-0" 57 1/4 20 1/4 27 5/8 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 10 45 degrees or greater. 8'-0" 81 1/4 44 1/4 39 5/8 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 11 45 degrees or greater. 10'-0" 105 1/4 68 1/4 34 1/2 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 12 45 degrees or greater. 12'-0" 129 1/4 92 1/4 42 1/2 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 13 This is caused by the additional compression of the wood. Once final assembly is complete, check all wall anchors and bolted connections for tightness. N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
  • Page 14 DETAIL E PCT-1919-A HPBH-P-A HPBH-B-A N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC. ALL RIGHTS RESERVED...
  • Page 15 HORIZONTAL FRAME PIPE HN5038 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC. ALL RIGHTS RESERVED...
  • Page 16 HBAR HS2129 HB5031 SR5295 N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC. ALL RIGHTS RESERVED...
  • Page 17 SR5560 DETAIL G DETAIL G N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC. ALL RIGHTS RESERVED...

  • Page 18: Contact Name

    Refer to the applicable Wall Mount Model Number when talking to customer service personnel. www.jaypro.com N24GB / N46GB / N68GB / N810GB / N1012GB www.jaypro.com / (800) 243-0533 / 976 Hartford Tpke, Waterford, CT 06385 USA SUBJECT TO CHANGES IN DESIGN AND MANUFACTURING COPYRIGHT 2019 JAYPRO SPORTS, LLC.
