Summary of Contents for Jaypro Sports SGP-850

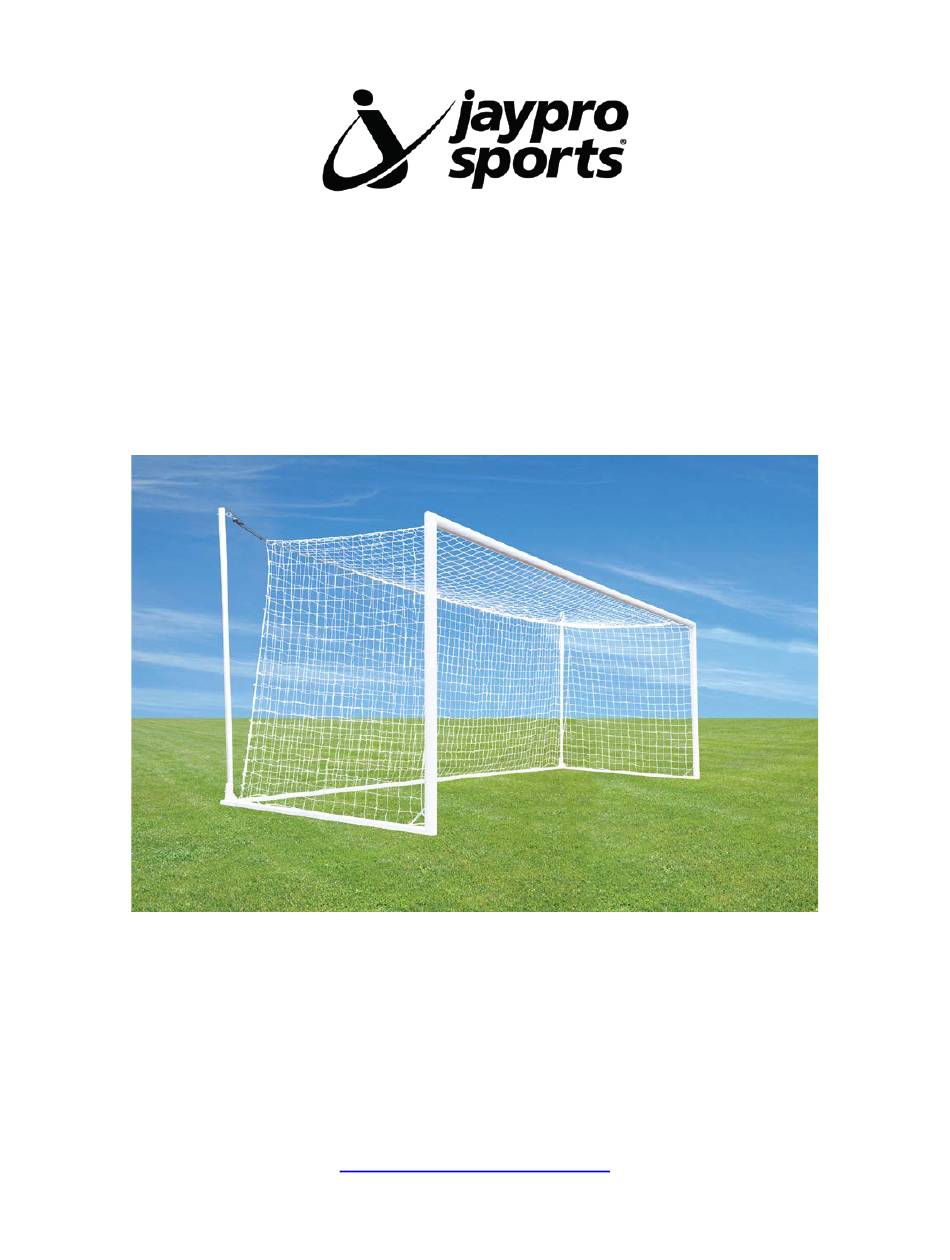

- Page 1 -- SGP-850 -- Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Page 1 of 15...
- Page 2 SGP-850 PARTS LIST (QTY: SINGLE UNIT) ITEM IMAGE DESCRIPTION RIGHT UPRIGHT WELDMENT P/N: SGP-850UR LEFT UPRIGHT WELDMENT P/N: SGP-850UL CORER POLE P/N: SGP85-NSP (NET STAY POLE) 2" x 4" CORNER FITTING P/N: SGP-85CF SOCCER UPRIGHT BRACE P/N: SGP-BRX 4" SOCCER CROSSBAR, x 280" L W/ WHITE...
- Page 3 ITEM IMAGE DESCRIPTION 3/8" SPLIT LOCK WASHER P/N: HW2152 3/8" FLAT WASHER P/N: HW2151 3/8”-16 NYLON LOCK NUT P/N: HN5003 5/16”-18 NYLON LOCK NUT P/N: HN261 3/8”-16 x 3-1/2” HEX CAP SCREW P/N: HS782 END CAP #288-9 BLACK 2 3/8" P/N: EC0044 5/16"-18 x 3"...
- Page 4 OPTIONAL WHEEL KIT FOR PORTABLE SOCCER GOALS (P/N: NSGWK) NOTE: Kit includes four wheel assemblies. Wheel assemblies may be used in pairs, (i.e. two per goal) which would require lifting one end of goal to move. Alternately, four wheel assemblies may be installed on a soccer goal to avoid the need to lift. At least two people are required to properly move a soccer goal, to prevent personal injury or damage to the goal.
-
Page 5: Important Notice
Inspect all components for structure integrity. Replace any damaged or missing part or fasteners before using. Contact your dealer or Jaypro Sports, for repair or replacement parts. 4. NEVER climb on, or allow anyone to climb on the frame or net. - Page 6 RIGHT UPRIGHT WELDMENT 4" SOCCER CROSSBAR, x 280" L LEFT UPRIGHT WELDMENT 3/8"-16 x 1-1/4" HEX BUTTON 3/8" SPLIT LOCK WASHER 3/8" FLAT WASHER Page 6 of 15...
- Page 7 2" x 4" BASE, x 80" L 2" x 4" BASE, x 80" L 3/8"-16 x 1/4" HEX BUTTON 3/8"-16 x 1-1/4" HEX BUTTON SOCCER UPRIGHT BRACE 3/8"-16 x 1-1/4" HEX BUTTON 3/8" SPLIT LOCK WASHER 3/8" FLAT WASHER Page 7 of 15...
- Page 8 Bottom Goal Assembly: 1. Insert one lower corner fitting into each end of the 2” x 4” x 280” rear crossbar. 2. Install hardware loosely, as shown. 3/8" SPLIT LOCK WASHER 3/8"-16 x 1/4" HEX BUTTON 3/8" FLAT WASHER Page 8 of 15...
- Page 9 Bottom Goal Assembly: 1. Stand front of soccer goal into the upright position. One person should securely hold the face of the goal in position. a. Note: If wheel kit is to be installed, slide nut bars for wheel kit into each base member.
- Page 10 CORNER POLE CORNER POLE CORNER POLE CORNER POLE Rear View of Soccer Goal 3/8"-16 NYLON LOCK NUT 3/8" FLAT WASHER 3/8"-16 x 3-1/2" HEX HEAD Side View of Soccer Goal Page 10 of 15...
- Page 11 Net Attachment: Lay out the net inside the goal and identify one of the front top corners. 2. Attach the net using the “Easy Clip” net attachment system. Use a ladder to attach the net to the top crossbar. 3. Loosely attach the rear cord, woven through the net, to the eyebolts in each rear corner posts.
- Page 12 1/4” CORD, WEAVE INTO 3/8" ROPE RATCHET NET EVERY 10 SQUARES 3/8” BUNGEE CORD ATTACH TO SIDE OF 5/8” BORDER ROPE 1/4” CORD TERMINATED AT ROPE RATCHET, POINT OF TENSION 5/8” ROPE BORDER 3/8” BUNGEE CORD ATTACH TO SIDE OF 5/8”...
- Page 13 Place labels according to the diagram below. Always inspect goals before each use to ensure that all labels are in place and legible. Contact your dealer or Jaypro Sports for replacement labels. Label Placement Instructions:...
- Page 14 Final Adjustments: • Checks to make sure the soccer goal frame is properly aligned and square. Securely tightened all button head and hex head hardware. • With goal fully assembled adjust tension of rear net as need using the ratchet. Recommend use a step ladder for ratchet adjustment, not to be done on ground level.
- Page 15 Anchoring Systems: IMPORTANT – PORTABLE SOCCER GOALS SHOULD BE ANCHORED AT ALL TIMES. There are three categories of anchors suitable for securing soccer goals. Semi-Permanent In-Ground Anchors: SGA-60 Semi-permanent in-ground anchors are the most secure type of anchor, as they are not dependent on soil conditions or subject to improper placement or dislodging.
