Summary of Contents for Jaypro Sports LG-1X Lacrosse Goal

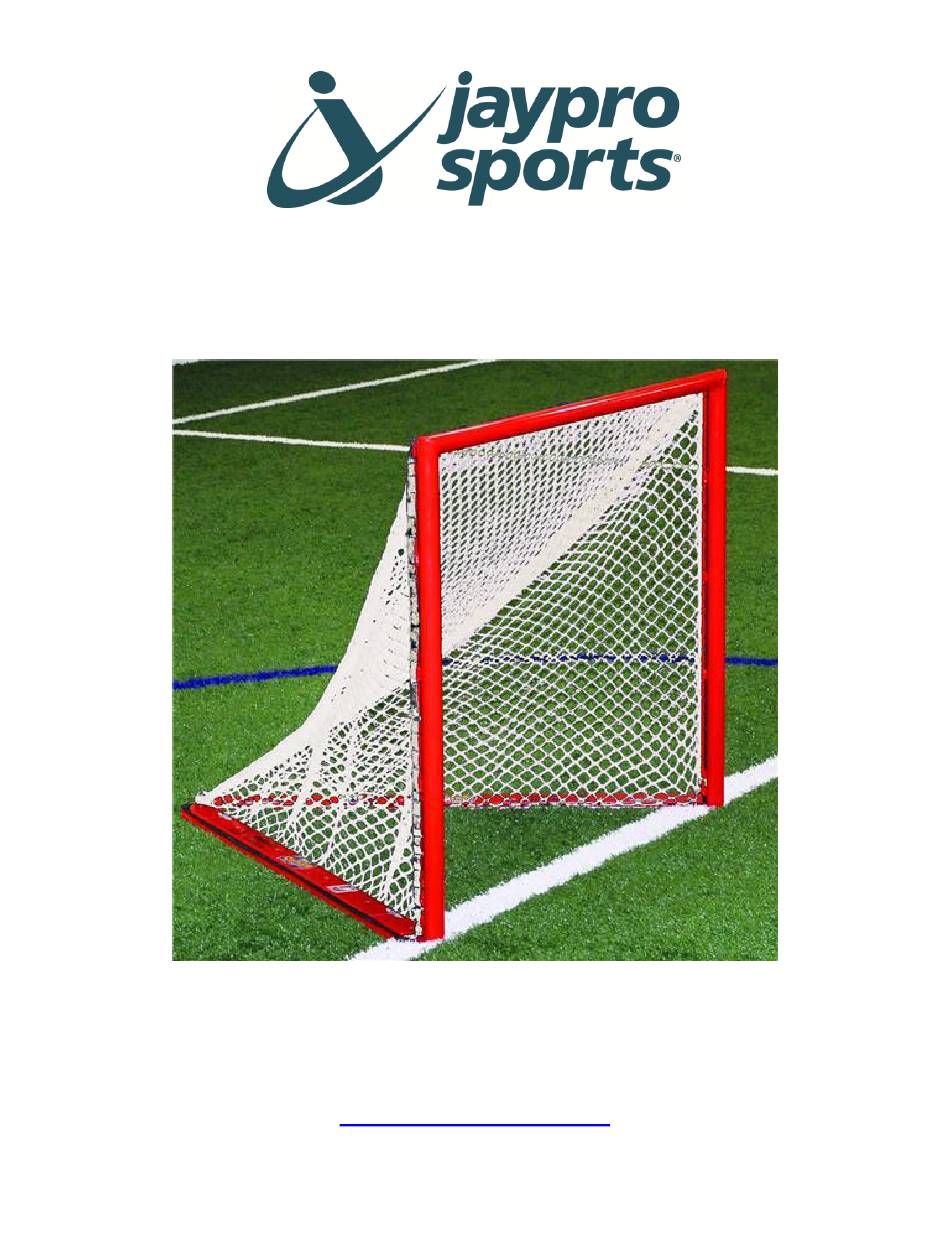

- Page 1 -- LG-1X Lacrosse Goal -- Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Rev-A Page 1 of 6...
- Page 2 LG-1X PARTS LIST (QTY: EACH GOAL) ITEM IMAGE DESCRIPTION Goal Upright Goal Bases (LEFT & RIGHT PAIRS) Goal Covers (LEFT & RIGHT PAIRS) Goal Cover Rear Plate 5/16” x 7/8” Long Flat HD Socket Screw 5/16” x 5/8” Long Flat HD Socket Screw Net w/ Lace (SOLD SEPARATELY) ITEM IMAGE...
- Page 3 3) USE OF THIS EQUIPMENT OTHER THAN INTENDED, MAY BE HAZARDOUS. 4) ALTERATION OR MODIFICATION OF THIS EQUIPMENT MAY BE HAZARDOUS AND RESULT IN INJURY. FOR REPAIR OR REPLACEMENT, CONTACT YOUR DEALER OR JAYPRO SPORTS. Tools Require: 3/16” Allen Wrench Socket Wrench...
- Page 4 1. Lay out both left and right base members on the ground. 5/8” LONG, 4 PLACES ! Do Not Tighten ! 2. Loosely attach the rear corner plate, as shown. Do not tighten the screws but allow the base members to freely move. 3.
- Page 5 Lithium Grease Lithium Grease 4. Apply some lithium grease to both inserts and the inside of the uprights 5. Carefully slide the uprights onto the inserts – this is a two person job. Note: To avoid binding, it is very important that both uprights be slid onto the inserts in unison. 6.
- Page 6 7. Lay the net out and identify the top corner. Using a zip tie or piece of string, attached the center of the net to the center of the crossbar. Make any adjustments necessary to ensure the net is centered. 8.
