Mercia Garden Products 01DTOVAX0705SDFW-V2 Instructions Manual

7x5 value overlap single door apex wooden shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX0705SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX0705SDFW-V2

Summary of Contents for Mercia Garden Products 01DTOVAX0705SDFW-V2

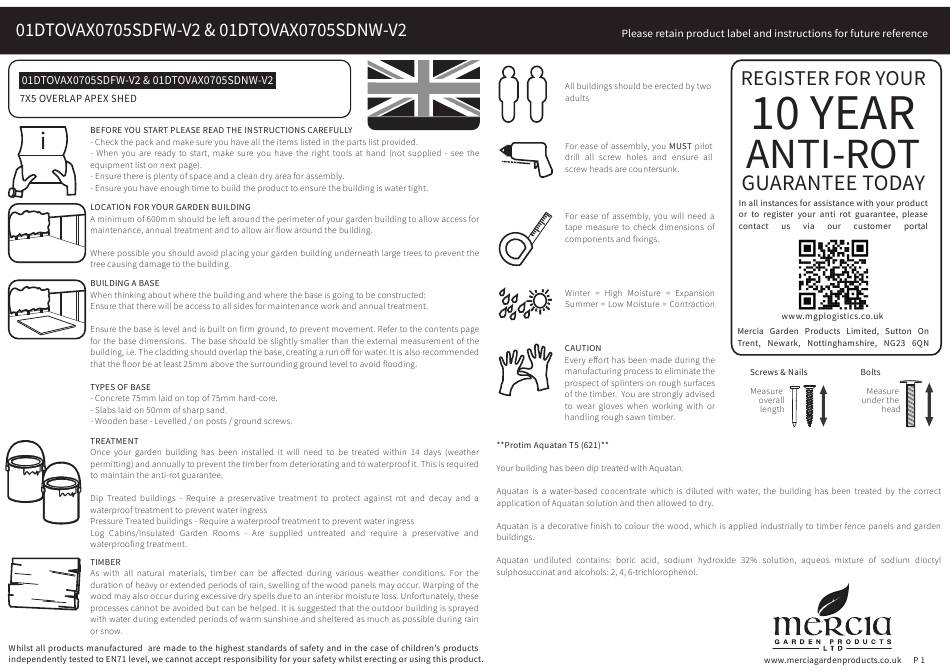

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 Width = 1456mm Depth = 2125mm Depth = 2066mm Fascia 12x60x851mm QTY 4 Height = 1918mm S1260-851mm End View 01DTOVAX0705SDFW-V2 01DTOVAX0705SDNW-V2 Fixed Window Strip 12x30x546mm QTY 5 (WITH WINDOW ONLY) S1230-546mm End View Cover Trims 12x45x1575mm QTY 4 S1245-1575mm End View...
  • Page 5 Step 2 Pre Assembly IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Before assembling remove the transportation blocks from the bottom of each No. 7 QTY 1 panel. No. 15 QTY 3 Take care removing the blocks as to not damage the panels. Tap with a at headed Place the door (No.
  • Page 6 Step 3 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 2 QTY 1 Parts needed - No. 1 QTY 1 No. 3, (or 4) QTY 1 No. 4, (or 3) QTY 1 Fix the corners of the Back Gable (No.
  • Page 7 Step 5 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 12 QTY 1 Parts needed - No. 6 QTY 2 No. 20 QTY 1 No. 13 QTY 2 Place the ridge bar (No. 12) in between Fix the eaves frames (No.
  • Page 8 Step 7 Step 8 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 1 Once roof Cut the felt (No. 18) into 2 sheets measuring attach the building to the oor with 50mm screws. Make sure 2200mm (L) x 1000mm (W) and lay onto the that you screw into the building in the order shown in the diagram, framing below.
  • Page 9 Step 9 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 For a windowless version go to step 12 Fit the Cover Trims (No. 10) to the front Parts needed - No. 9 QTY 5 and back of the building as shown in the No.
  • Page 10 Step 12 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 Parts needed - No. 21 QTY 1 Use 4x30mm Screws to x each To x the lock in place. Screw the Staple beading strip (No.
  • Page 11 Step 15 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 12 for a full guide and instructions. WITH WINDOW ONLY Once fully treated, score around the protective covers on the glazing and...
  • Page 12 ANY QUESTIONS? Scan code contact us via our customer portal.

This manual is also suitable for:

01dtovax0705sdnw-v2
